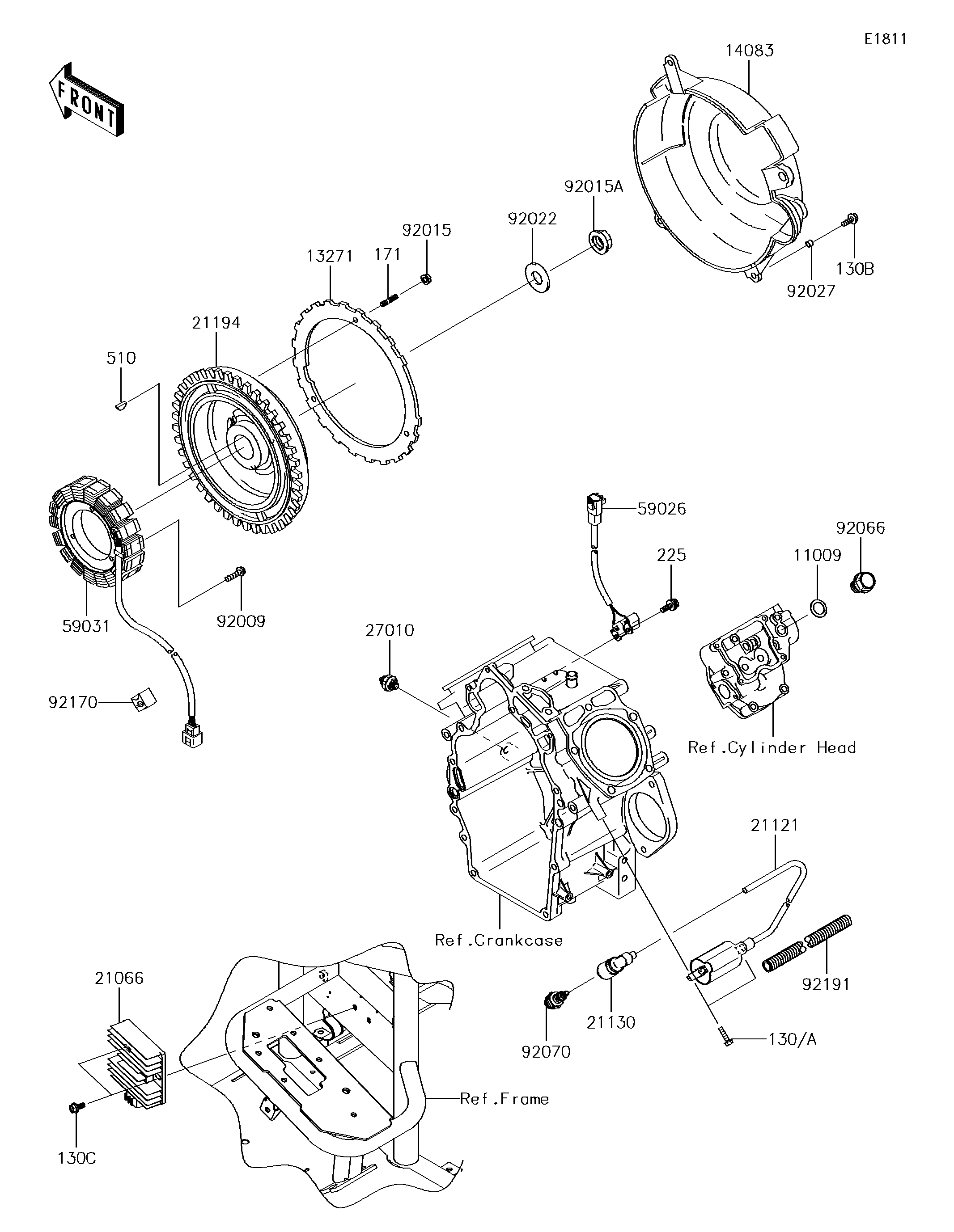

2014 MULE™ 4010 4x4 - Generator/Ignition Coil

DOWNLOAD PDF
SELECT A NEW PART
11009
13271
14083
21066
21121
21130
21194
27010
59026
59031
92009
92015
92015A
92022
92027
92066
92070
92170
92191
130
130B
130C
171
225
510
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,16X24X1 11009 11009-2566 1
PLATE 13271 13271-2269 1
COVER-FLYWHEEL 14083 14083-2052 1
REGULATOR-VOLTAGE 21066 21066-0717 1
COIL-IGNITION 21121 21121-2092 2
CAP-SPARK PLUG 21130 21130-2060 2
FLYWHEEL-COMP 21194 21194-2352 1
SWITCH,OIL PRESSURE 27010 27010-1313 1
COIL-PULSING 59026 59026-2065 1
COIL-CHARGING 59031 59031-2136 1
SCREW,6X25 92009 92009-2273 3
NUT,FLANGED,6MM 92015 92015-1367 3
NUT 92015A 92015-2167 1
WASHER 92022 92022-2229 1
COLLAR,6.2X7.8X5 92027 92027-2096 3
PLUG,DRAIN 92066 92066-2099 1
PLUG-SPARK,BPR2ES(NGK),SOLID 92070 92070-2110 2
CLAMP 92170 92170-2056 1
TUBE 92191 92191-2124 1
BOLT-FLANGED,5X20 130 130AA0520 4
BOLT-FLANGED,6X16 130B 130BA0616 3
BOLT-FLANGED,6X14 130C 130BB0614 2
BOLT-STUD,6X18 171 171BA0618 3
SCREW-PAN-WSP-CROS,4X14 225 225AA0414 2
KEY-WOODRUFF 510 510A5100 1
