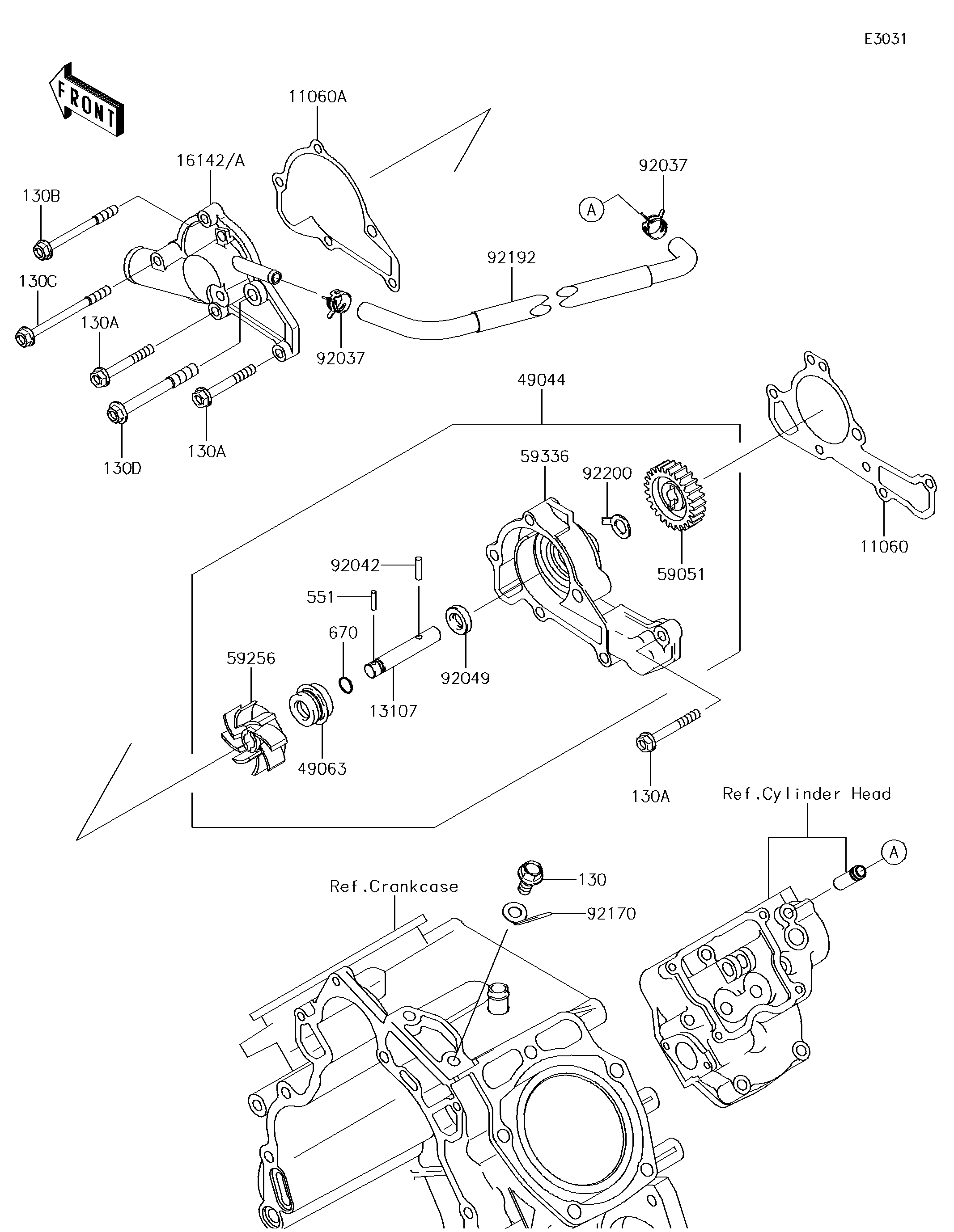

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
11060
11060A
13107
16142
49044
49063
59051
59256
59336
92037
92037
92042
92049
92170
92192
92200
130
130A
130A
130A
130B
130C
130D
551
670
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET,PUMP CASE | 11060 | 11060-2450 | 1 | ||
GASKET,PUMP COVER | 11060A | 11060-2451 | 1 | ||
SHAFT,IMPELLER | 13107 | 13107-2097 | 1 | ||
COVER-PUMP | 16142 | 16142-0714 | 1 | ||
PUMP-WATER | 49044 | 49044-2066 | 1 | ||
SEAL-MECHANICAL | 49063 | 49063-1056 | 1 | ||
GEAR-SPUR | 59051 | 59051-2113 | 1 | ||
IMPELLER | 59256 | 59256-2057 | 1 | ||
CASE-PUMP | 59336 | 59336-2052 | 1 | ||
CLAMP,HOSE CLIP | 92037 | 92037-1181 | 2 | ||
PIN,DOWEL,4X15.8 | 92042 | 92042-014 | 1 | ||
SEAL-OIL | 92049 | 92049-2111 | 1 | ||
CLAMP | 92170 | 92170-2060 | 1 | ||
TUBE | 92192 | 92192-2169 | 1 | ||
WASHER | 92200 | 92200-2044 | 1 | ||
BOLT-FLANGED,8X16 | 130 | 130BA0816 | 1 | ||
BOLT-FLANGED,6X45 | 130A | 130CA0645 | 3 | ||
BOLT-FLANGED,6X65 | 130B | 130CA0665 | 1 | ||
BOLT-FLANGED,6X75 | 130C | 130CA0675 | 1 | ||
BOLT-FLANGED,8X70 | 130D | 130CA0870 | 1 | ||
PIN-DOWEL,3X14 | 551 | 551A0314 | 1 | ||
O RING,7MM | 670 | 670B1507 | 1 |
GASKET,PUMP CASE | |
REF # | 11060 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GASKET,PUMP COVER | |
REF # | 11060A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SHAFT,IMPELLER | |
REF # | 13107 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER-PUMP | |
REF # | 16142 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PUMP-WATER | |
REF # | 49044 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SEAL-MECHANICAL | |
REF # | 49063 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GEAR-SPUR | |
REF # | 59051 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
IMPELLER | |
REF # | 59256 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CASE-PUMP | |
REF # | 59336 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP,HOSE CLIP | |
REF # | 92037 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
PIN,DOWEL,4X15.8 | |
REF # | 92042 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SEAL-OIL | |
REF # | 92049 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP | |
REF # | 92170 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE | |
REF # | 92192 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER | |
REF # | 92200 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT-FLANGED,8X16 | |
REF # | 130 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT-FLANGED,6X45 | |
REF # | 130A |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
BOLT-FLANGED,6X65 | |
REF # | 130B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT-FLANGED,6X75 | |
REF # | 130C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT-FLANGED,8X70 | |
REF # | 130D |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIN-DOWEL,3X14 | |
REF # | 551 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
O RING,7MM | |
REF # | 670 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
