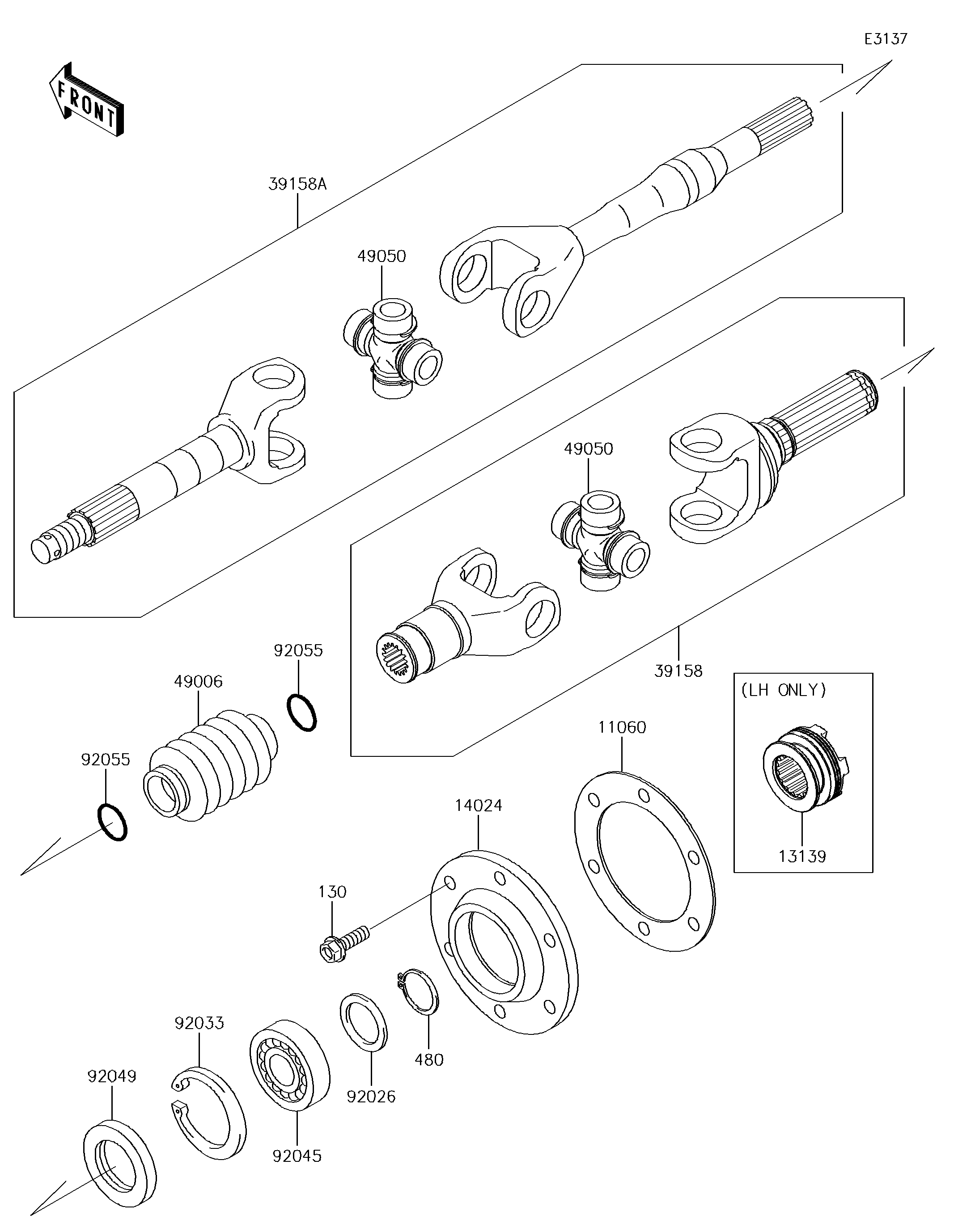

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,DRIVESHAFT COVER 11060 11060-1251 2
SHIFTER 13139 13139-0009 1
COVER,DRIVESHAFT 14024 14024-1560 2
SHAFT-ASSY-DRIVE,INSIDE 39158 39158-1119 2
SHAFT-ASSY-DRIVE 39158A 39158-1120 2
BOOT,DRIVE SHAFT 49006 49006-1257 2
SPIDER 49050 49050-0034 4
SPACER,28.1X38X2.6 92026 92026-1489 2
RING-SNAP,55MM 92033 92033-1274 2
BEARING-BALL,6006 92045 92045-1208 2
SEAL-OIL,TC35X55X8 92049 92049-1298 2
RING-O,19.5X3.0 92055 92055-1451 4
BOLT-FLANGED,8X25 130 130BA0825 12
CIRCLIP-TYPE-C,28MM 480 480J2800 2
