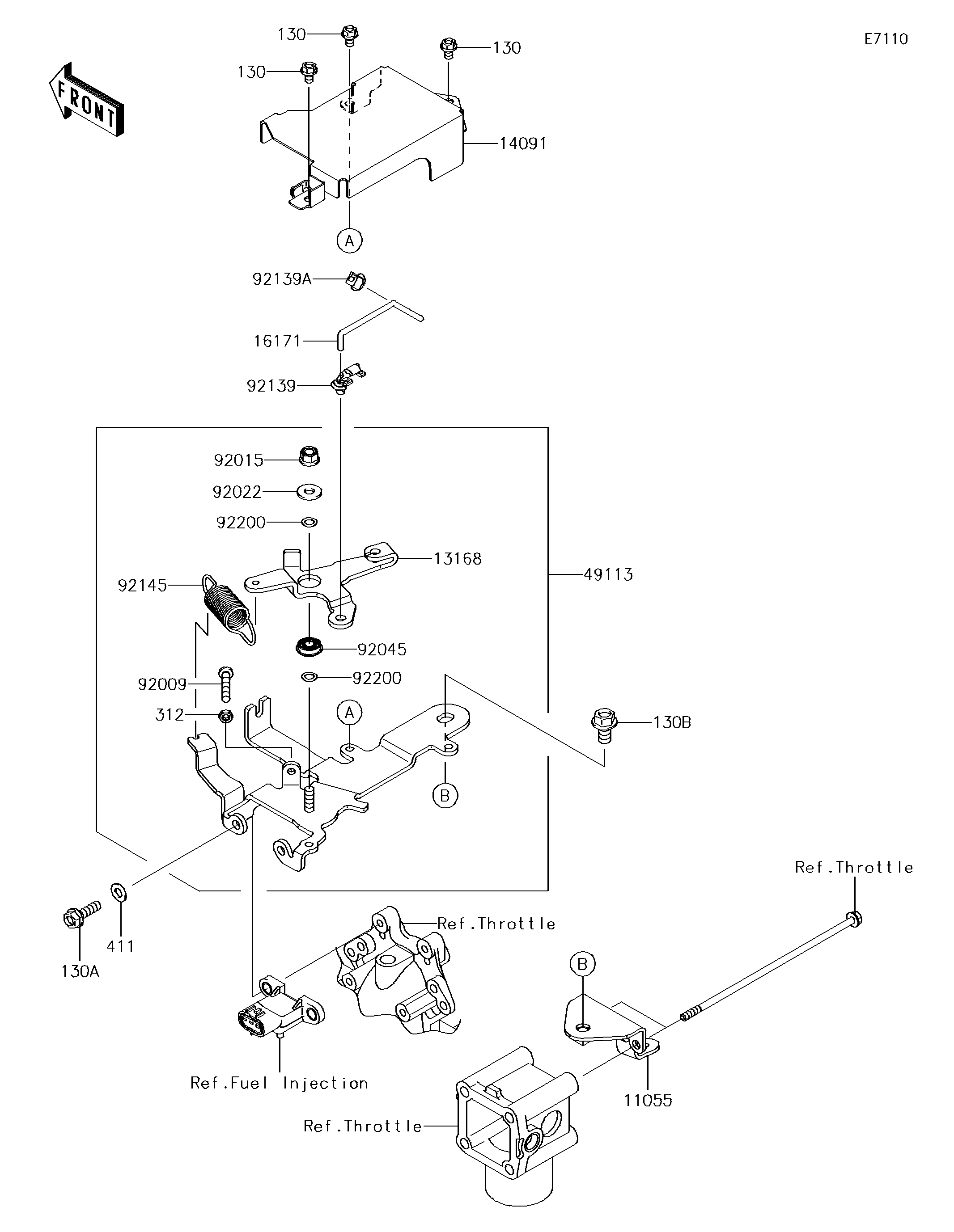

Parts Diagrams |
11055
13168
14091
16171
49113
92009
92015
92022
92045
92139
92139A
92145
92200
92200
130
130
130
130A
130B
312
411
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET | 11055 | 11055-2020 | 1 | ||
| LEVER | 13168 | 13168-2509 | 1 | ||
| COVER,CONTROL PANEL | 14091 | 14091-1757 | 1 | ||
| LINK | 16171 | 16171-2105 | 1 | ||
| PANEL-COMP-CONTROL | 49113 | 49113-2211 | 1 | ||
| SCREW,5X30 | 92009 | 92009-2381 | 1 | ||
| NUT,LOCK,FLANGED,6MM | 92015 | 92015-1339 | 1 | ||
| WASHER | 92022 | 92022-2247 | 1 | ||
| BEARING-BALL,696ZZ1NR MC3 | 92045 | 92045-2223 | 1 | ||
| BUSHING,CONT-PANEL | 92139 | 92139-2060 | 1 | ||
| BUSHING,THROTTLE-BODY | 92139A | 92139-2061 | 1 | ||
| SPRING | 92145 | 92145-2186 | 1 | ||
| WASHER,6.2X10X0.5 | 92200 | 92200-2083 | 2 | ||
| BOLT-FLANGED,5X8 | 130 | 130BA0508 | 3 | ||
| BOLT-FLANGED,6X20 | 130A | 130BA0620 | 2 | ||
| BOLT-FLANGED,8X14 | 130B | 130BA0814 | 1 | ||
| NUT-HEX,5MM | 312 | 312AA0500 | 1 | ||
| WASHER-PLAIN,6MM | 411 | 411AB0600 | 2 |
