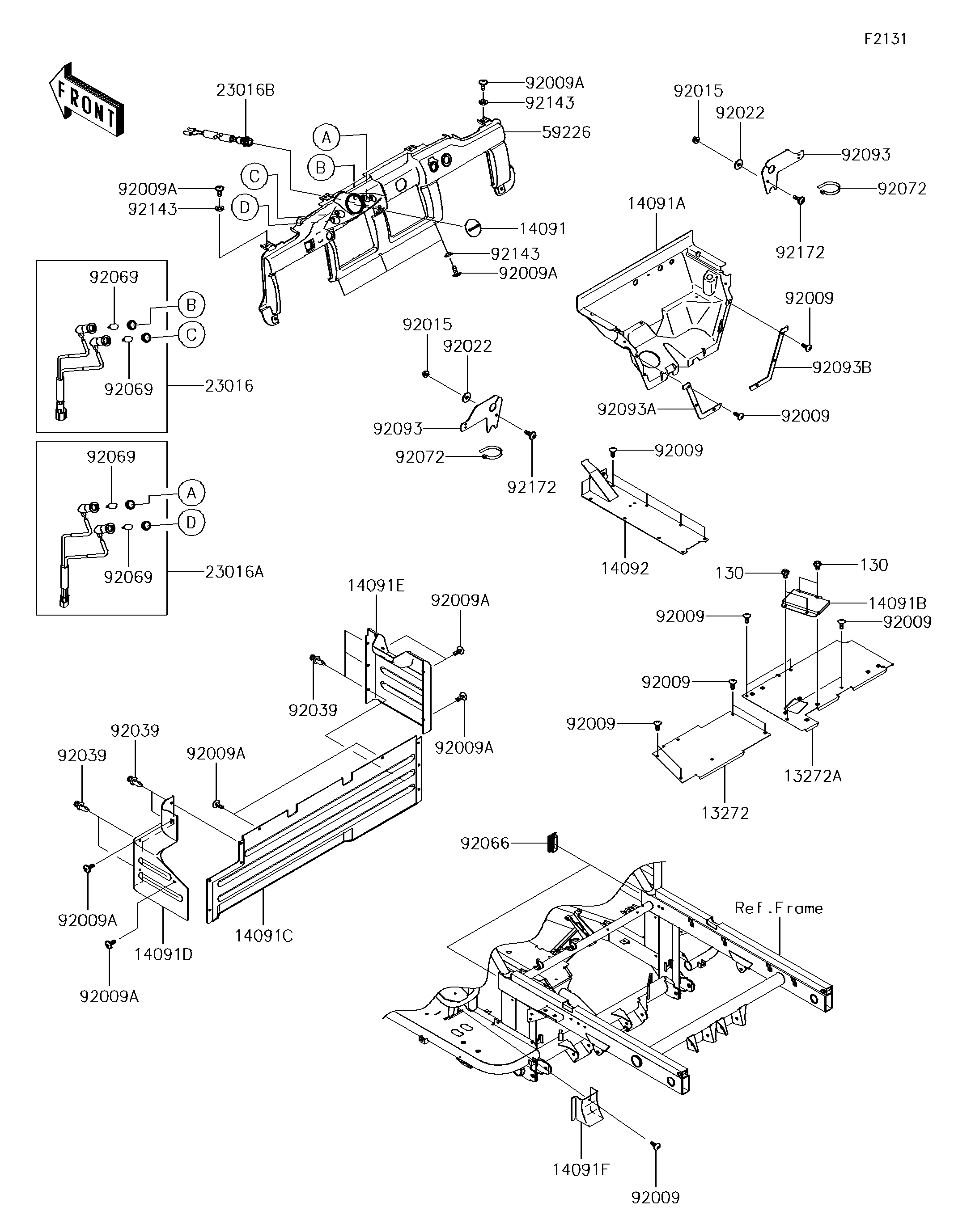

2014 MULE™ 4010 4x4 - Frame Fittings

DOWNLOAD PDF
SELECT A NEW PART
13272
13272A
14091
14091A
14091B
14091C
14091D
14091E
14091F
14092
23016
23016A
23016B
59226
92009
92009
92009
92009
92009
92009
92009
92009
92009A
92009A
92009A
92009A
92009A
92009A
92009A
92009A
92015
92015
92022
92022
92039
92039
92039
92066
92069
92069
92069
92069
92072
92072
92093
92093
92093A
92093B
92143
92143
92143
92172
92172
130
130
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PLATE 13272 13272-0284 1
PLATE 13272A 13272-0285 1
COVER,SPEEDOMETER,F.BLACK 14091 14091-0929-6Z 1
COVER,FLOOR 14091A 14091-1378 1
COVER 14091B 14091-1666 1
COVER,FRONT SEAT,CNT 14091C 14091-7531 1
COVER,FRONT SEAT,LH 14091D 14091-7541 1
COVER,FRONT SEAT,RH 14091E 14091-7542 1
COVER,PARKING CABLE 14091F 14091-7551 1
COVER,FLOOR,CNT,FR 14092 14092-0832 1
LAMP-ASSY,PARKING&WATER TEMP 23016 23016-0035 1
LAMP-ASSY,DFI&OIL PRESSURE 23016A 23016-0036 1
LAMP-ASSY,LED 23016B 23016-0050 1
PANEL-CONTROL,F.BLACK 59226 59226-0026-6Z 1
SCREW,TAPPING,6X16 92009 92009-1166 23
SCREW,6X16 92009A 92009-1621 12
NUT,FLANGED,6MM 92015 92015-1367 2
WASHER,6.5X20X1.6,BLACK 92022 92022-1346 2
RIVET 92039 92039-0776 7
PLUG 92066 92066-7505 2
BULB,12V 1.7W,T10 92069 92069-1059 4
BAND,L=368.3 92072 92072-3872 2
SEAL,LOWER COVER 92093 92093-0181 2
SEAL,FRONT FENDER,LH 92093A 92093-1293 1
SEAL,FRONT FENDER,RH 92093B 92093-1294 1
COLLAR 92143 92143-1087 5
SCREW,6X18 92172 92172-0002 2
BOLT-FLANGED,6X10 130 130BA0610 4
