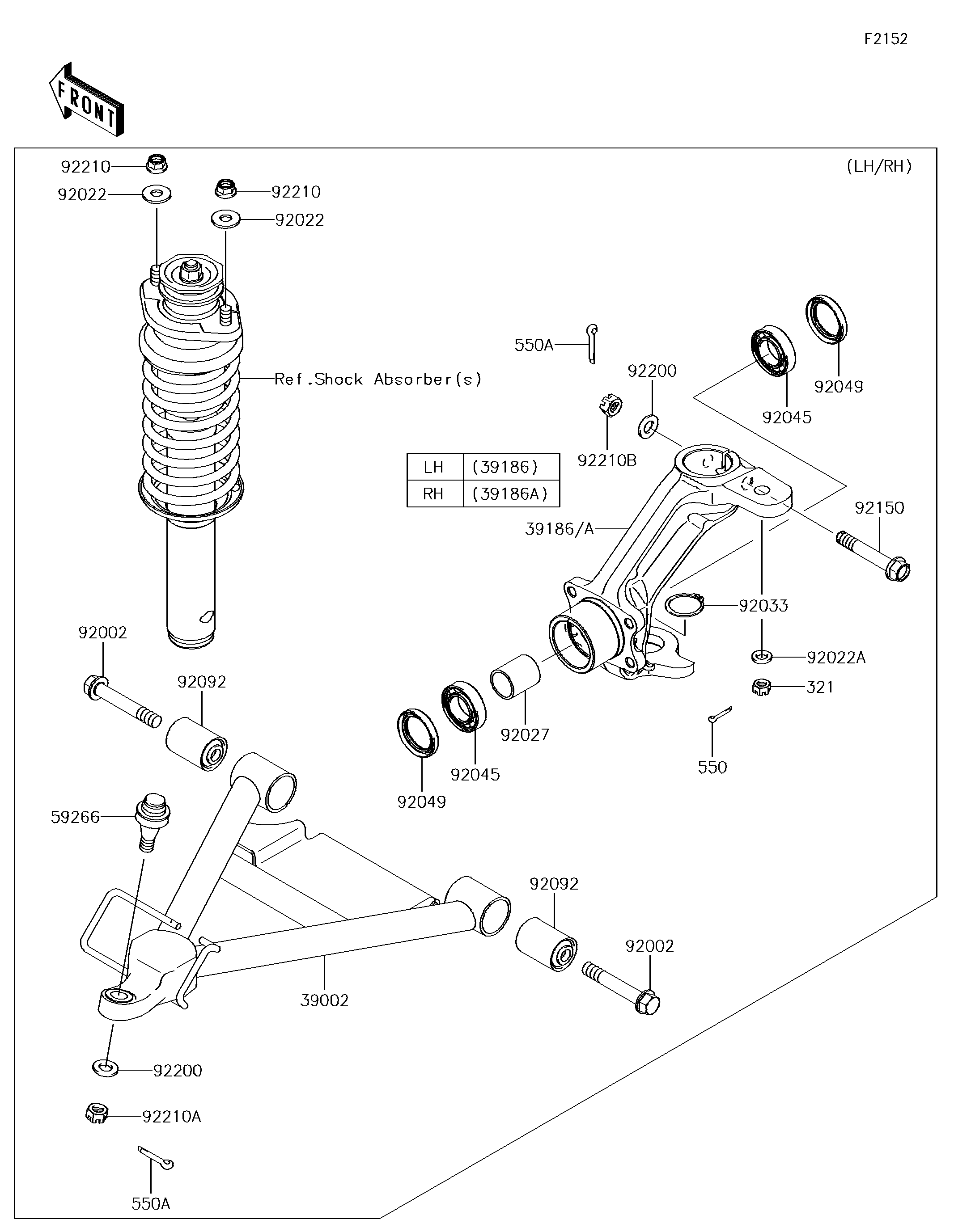

2014 MULE™ 4010 4x4 - Front Suspension

DOWNLOAD PDF
SELECT A NEW PART
39002
39186
39186A
59266
92002
92002
92022
92022
92022A
92027
92033
92045
92045
92049
92049
92092
92092
92150
92200
92200
92210
92210
92210A
92210B
321
550
550A
550A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
ARM-COMP-SUSP 39002 39002-0001 2
KNUCKLE,FR,LH 39186 39186-0074 1
KNUCKLE,FR,RH 39186A 39186-0075 1
JOINT-BALL 59266 59266-1080 2
BOLT,FLANGED,12X75 92002 92002-1661 4
WASHER,10.5X26X2.3 92022 92022-044 4
WASHER,10.5X18X2.5 92022A 92022-1876 2
COLLAR,L=34.5 92027 92027-1538 2
RING-SNAP,C-TYPE,32MM 92033 92033-1262 2
BEARING-BALL 92045 92045-3707 4
SEAL-OIL,SD35X47X7HS 92049 92049-1513 4
BUSHING-RUBBER 92092 92092-1065 4
BOLT,FLANGED,12X72 92150 92150-1356 2
WASHER,12.3X23X2.3 92200 92200-1004 4
NUT,LOCK,FLANGED,10MM 92210 92210-0276 4
NUT,CASTLE,12MM 92210A 92210-0395 2
NUT,12MM 92210B 92210-7501 2
NUT-CASTLE 321 321BA1000 2
PIN-COTTER,2.0X22 550 550AA2022 2
PIN-COTTER,3.0X25 550A 550AA3025 4
