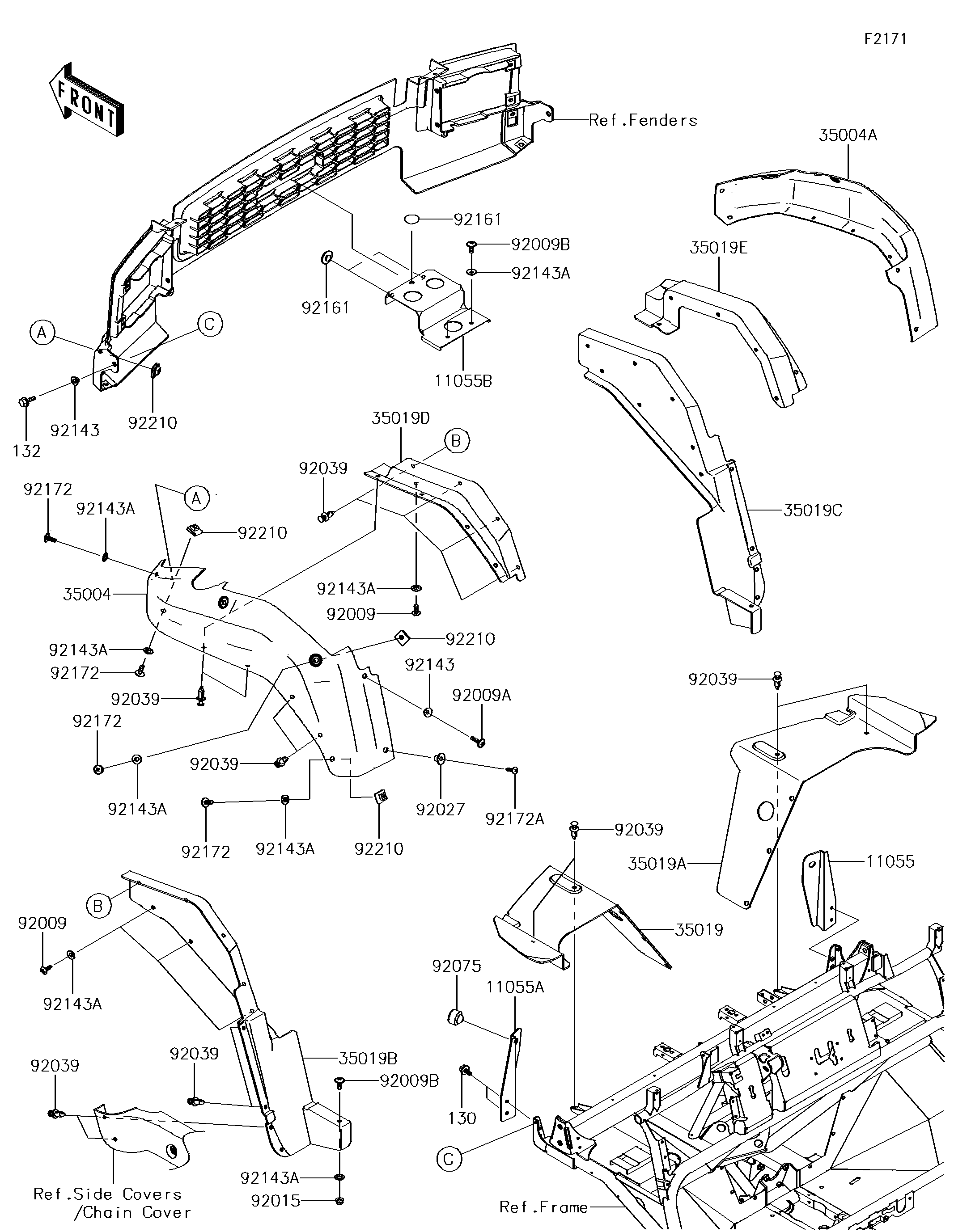

2014 MULE™ 4010 4x4 - Front Fender(s)

DOWNLOAD PDF
SELECT A NEW PART
11055
11055A
11055B
35004
35004A
35019
35019A
35019B
35019C
35019D
35019E
92009
92009
92009A
92009B
92009B
92015
92027
92039
92039
92039
92039
92039
92039
92039
92075
92143
92143
92143A
92143A
92143A
92143A
92143A
92143A
92143A
92143A
92161
92161
92172
92172
92172
92172
92172A
92210
92210
92210
92210
130
132
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11055 11055-0917 1
BRACKET 11055A 11055-0918 1
BRACKET 11055B 11055-0954 1
FENDER-FRONT,SIDE,LH,F.BLACK 35004 35004-0123-6Z 1
FENDER-FRONT,SIDE,RH,F.BLACK 35004A 35004-0124-6Z 1
FLAP,FR,LH 35019 35019-0062 1
FLAP,FR,RH 35019A 35019-0063 1
FLAP,SIDE,RR,LH 35019B 35019-0064 1
FLAP,SIDE,RR,RH 35019C 35019-0065 1
FLAP,SIDE,MIDDLE,LH 35019D 35019-0068 1
FLAP,SIDE,MIDDLE,RH 35019E 35019-0069 1
SCREW,TAPPING,6X16 92009 92009-1166 8
SCREW,6X22,BLACK 92009A 92009-1256 2
SCREW,6X16 92009B 92009-1621 4
NUT,LOCK,FLANGED,6MM 92015 92015-1675 2
COLLAR 92027 92027-1767 2
RIVET 92039 92039-0776 28
DAMPER 92075 92075-015 2
COLLAR 92143 92143-1057 4
COLLAR 92143A 92143-1087 22
DAMPER,RUBBER 92161 92161-1200 3
SCREW,TAPPING,6X20 92172 92172-0488 10
SCREW 92172A 92172-1072 2
NUT,LEAF SPRING,6MM 92210 92210-0624 10
BOLT-FLANGED,6X14 130 130BA0614 4
BOLT-FLANGED-SMALL,6X20 132 132BA0620 2
