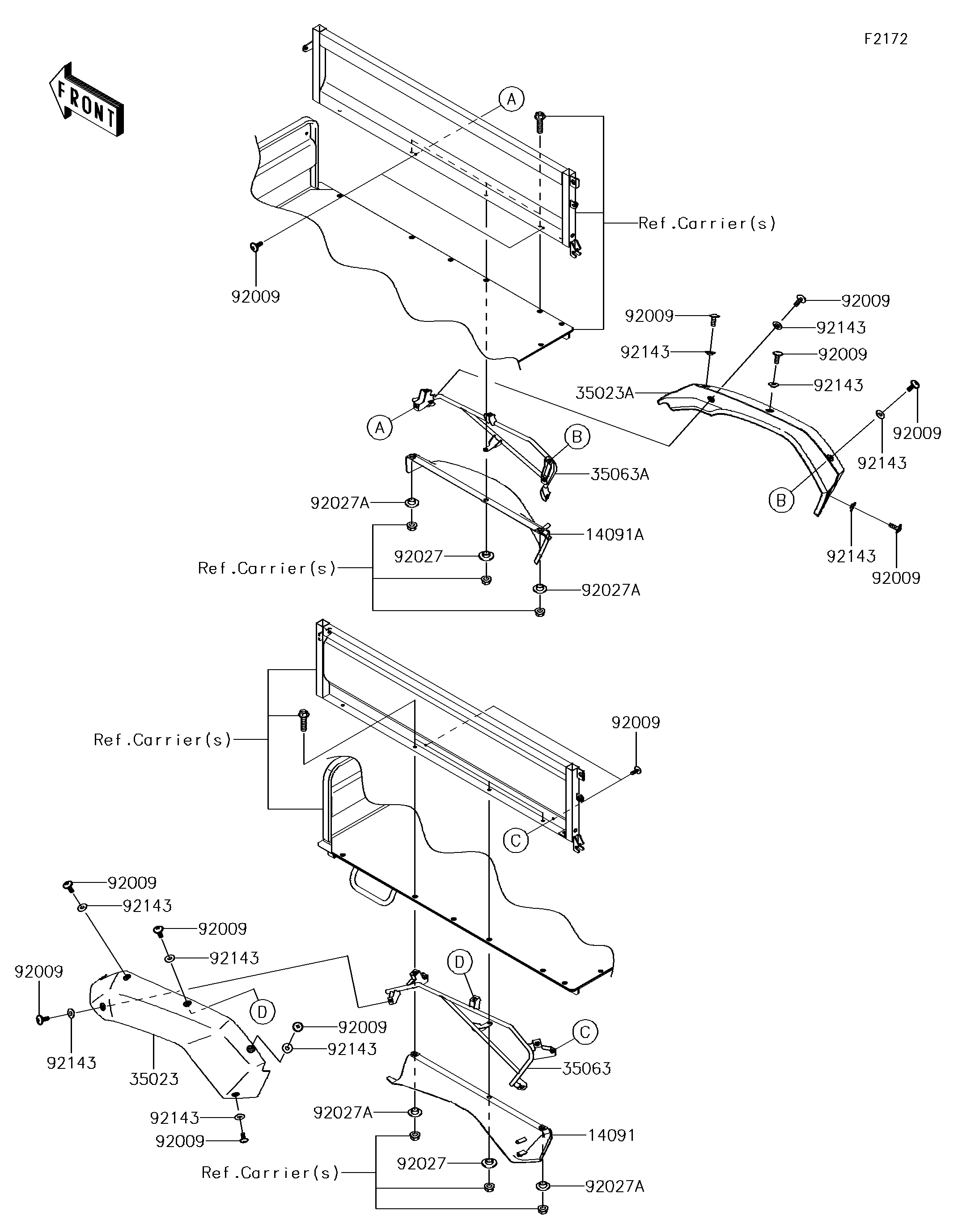

Parts Diagrams |
14091
14091A
35023
35023A
35063
35063A
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92027
92027
92027A
92027A
92027A
92027A
92143
92143
92143
92143
92143
92143
92143
92143
92143
92143
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER,FENDER,INSIDE,RR,LH | 14091 | 14091-1634 | 1 | ||
| COVER,FENDER,INSIDE,RR,RH | 14091A | 14091-1635 | 1 | ||
| FENDER-REAR,LH,F.BLACK | 35023 | 35023-0121-6Z | 1 | ||
| FENDER-REAR,RH,F.BLACK | 35023A | 35023-0122-6Z | 1 | ||
| STAY,RR,LH | 35063 | 35063-0449 | 1 | ||
| STAY,RR,RH | 35063A | 35063-0450 | 1 | ||
| SCREW,6X16 | 92009 | 92009-1621 | 14 | ||
| COLLAR | 92027 | 92027-1354 | 2 | ||
| COLLAR | 92027A | 92027-1908 | 4 | ||
| COLLAR | 92143 | 92143-1087 | 10 |
| COVER,FENDER,INSIDE,RR,LH | |
| REF # | 14091 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,FENDER,INSIDE,RR,RH | |
| REF # | 14091A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FENDER-REAR,LH,F.BLACK | |
| REF # | 35023 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FENDER-REAR,RH,F.BLACK | |
| REF # | 35023A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STAY,RR,LH | |
| REF # | 35063 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STAY,RR,RH | |
| REF # | 35063A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,6X16 | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 14 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 92027A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 92143 |
|---|---|
| PART NUMBER | |
| QUANTITY | 10 |
| DESTINATION | |
| REMARKS | |
