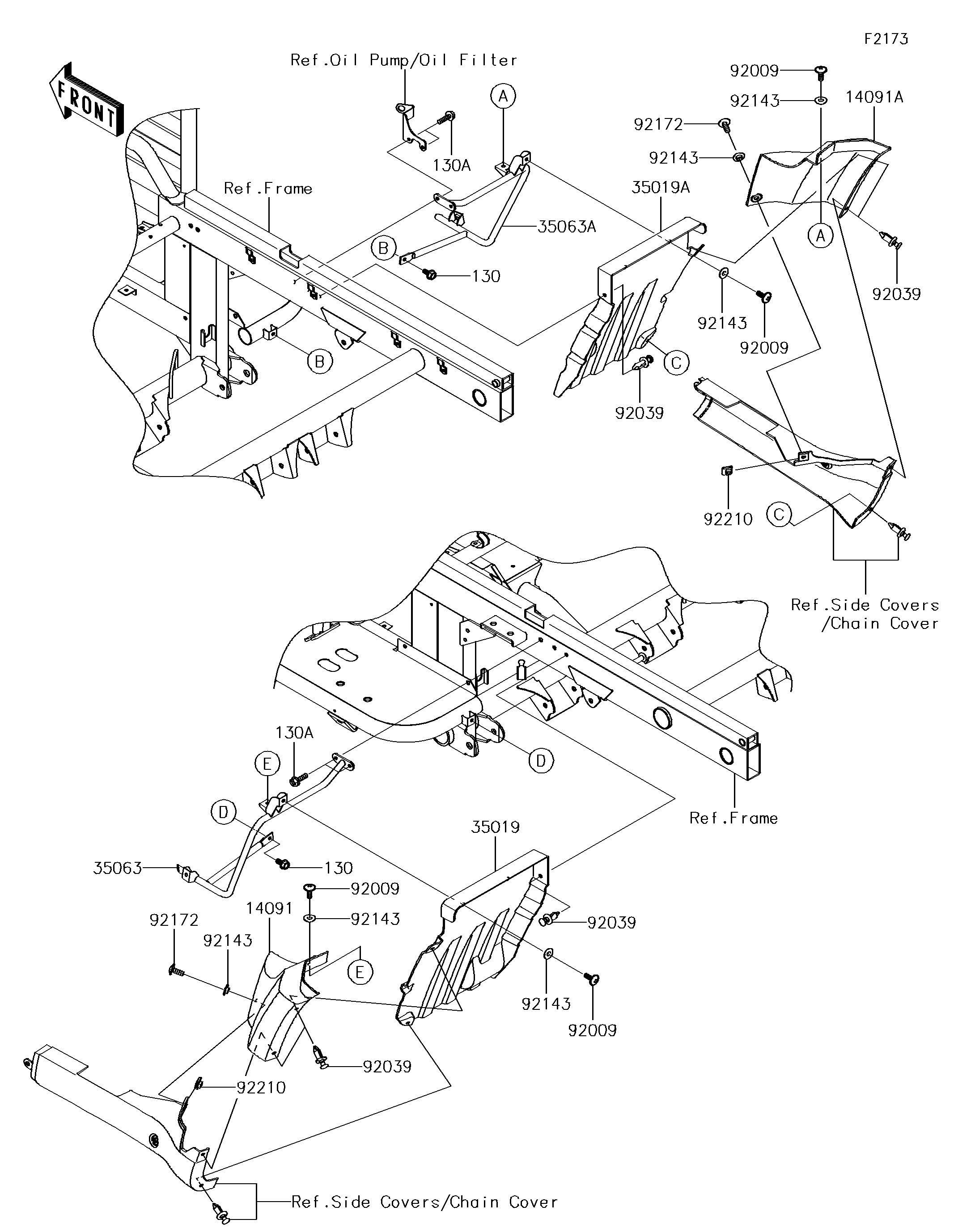

Parts Diagrams |
14091
14091A
35019
35019A
35063
35063A
92009
92009
92009
92009
92039
92039
92039
92039
92143
92143
92143
92143
92143
92143
92172
92172
92210
92210
130
130
130A
130A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER,REAR FENDER,LWR,LH,F.BLK | 14091 | 14091-0819-6Z | 1 | ||
| COVER,REAR FENDER,LWR,RH,F.BLK | 14091A | 14091-0820-6Z | 1 | ||
| FLAP,RR,LH | 35019 | 35019-0066 | 1 | ||
| FLAP,RR,RH | 35019A | 35019-0067 | 1 | ||
| STAY,RR,LH | 35063 | 35063-0451 | 1 | ||
| STAY,RR,RH | 35063A | 35063-0452 | 1 | ||
| SCREW,6X16 | 92009 | 92009-1621 | 4 | ||
| RIVET | 92039 | 92039-0776 | 6 | ||
| COLLAR | 92143 | 92143-1087 | 6 | ||
| SCREW,TAPPING,6X20 | 92172 | 92172-0488 | 2 | ||
| NUT,LEAF SPRING,6MM | 92210 | 92210-0624 | 2 | ||
| BOLT-FLANGED,6X14 | 130 | 130BA0614 | 2 | ||
| BOLT-FLANGED,6X20 | 130A | 130BA0620 | 4 |
