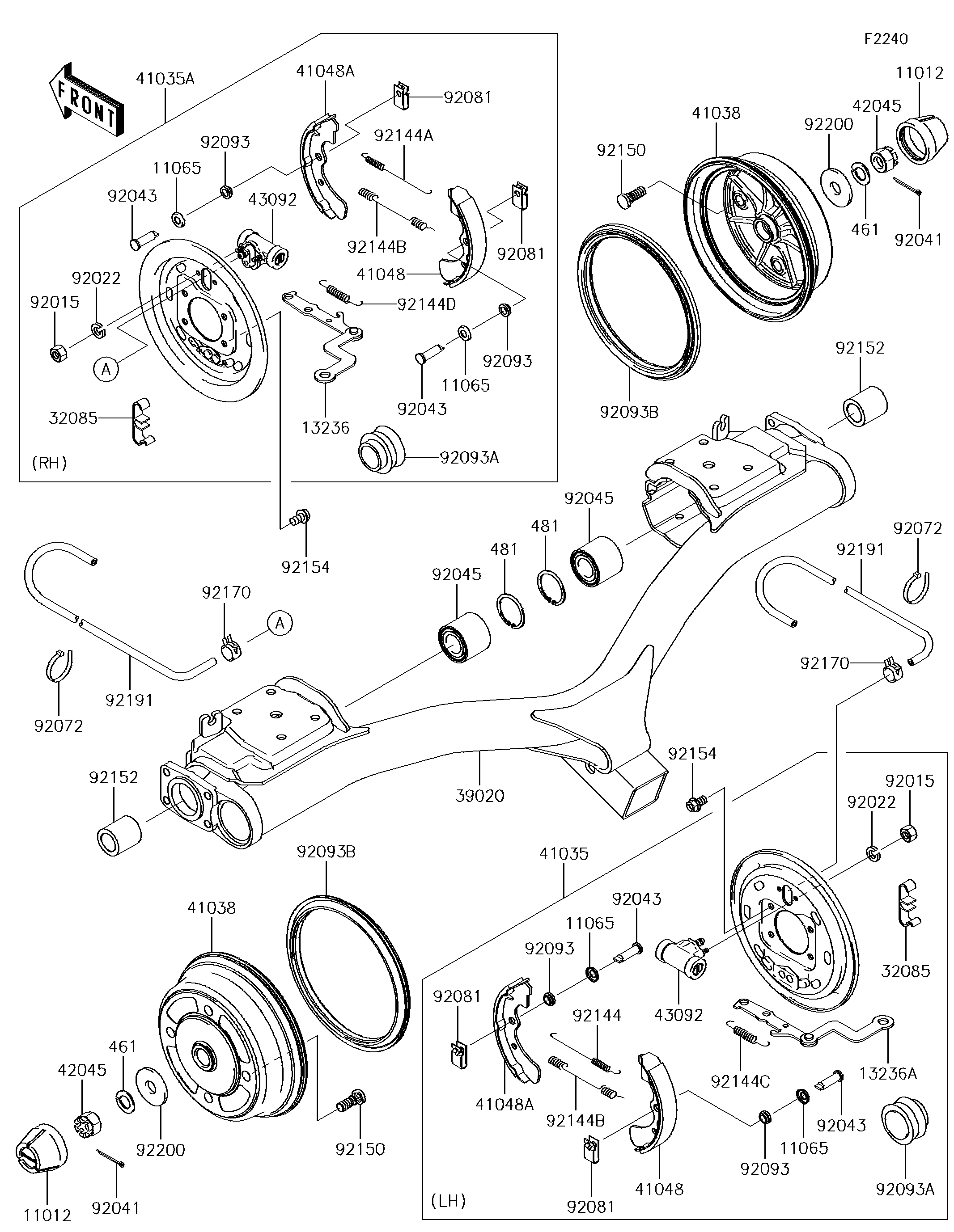

2014 MULE™ 4010 4x4 - Rear Hubs/Brakes

DOWNLOAD PDF
SELECT A NEW PART
11012
11012
11065
11065
11065
11065
13236
13236A
32085
32085
39020
41035
41035A
41038
41038
41048
41048
41048A
41048A
42045
42045
43092
43092
92015
92015
92022
92022
92041
92041
92043
92043
92043
92043
92045
92045
92072
92072
92081
92081
92081
92081
92093
92093
92093
92093
92093A
92093A
92093B
92093B
92144
92144A
92144B
92144B
92144C
92144D
92150
92150
92152
92152
92154
92154
92170
92170
92191
92191
92200
92200
461
461
481
481
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,WHEEL 11012 11012-1969 2
CAP 11065 11065-1175 4
LEVER-COMP,RR BRAKE PANEL,RH 13236 13236-1355 1
LEVER-COMP,RR BRAKE PANEL,LH 13236A 13236-1356 1
STOPPER,REAR BRAKE LEVER 32085 32085-1298 2
BRACKET-COMP-REAR SUSP 39020 39020-0004 1
PANEL-ASSY-BRAKE,RR,LH 41035 41035-7506 1
PANEL-ASSY-BRAKE,RR,RH 41035A 41035-7508 1
DRUM,REAR BRAKE 41038 41038-0035 2
SHOE-BRAKE 41048 41048-7502 2
SHOE-BRAKE 41048A 41048-7503 2
NUT,CASTLE,18MM 42045 42045-018 2
CYLINDER,REAR WHEEL 43092 43092-1053 2
NUT,6MM 92015 92015-1729 4
WASHER,SPRING,6MM 92022 92022-1951 4
COTTER,4.0X35 92041 92041-1053 2
PIN 92043 92043-1636 4
BEARING-BALL,25BWD02CA68 92045 92045-0107 2
BAND,L=123 92072 92072-030 6
SPRING,SHOE CLAMP 92081 92081-1904 4
SEAL 92093 92093-1532 4
SEAL 92093A 92093-1533 2
SEAL,BS184.8X13.5ZS 92093B 92093-1543 2
SPRING,BRAKE 92144 92144-1299 1
SPRING,BRAKE 92144A 92144-1300 1
SPRING,BRAKE 92144B 92144-1301 2
SPRING,ROD,LH 92144C 92144-1302 1
SPRING,ROD,RH 92144D 92144-1303 1
BOLT 92150 92150-1366 8
COLLAR,25.1X38X40.8 92152 92152-1276 2
BOLT,FLANGED,10X16 92154 92154-0803 8
CLAMP 92170 92170-2042 2
TUBE,4.7X9.5X1100 92191 92191-1525 2
WASHER,18.5X52X4.5 92200 92200-1474 2
WASHER-SPRING,18MM 461 461DA1800 2
CIRCLIP-TYPE-C,52MM 481 481J5200 2
