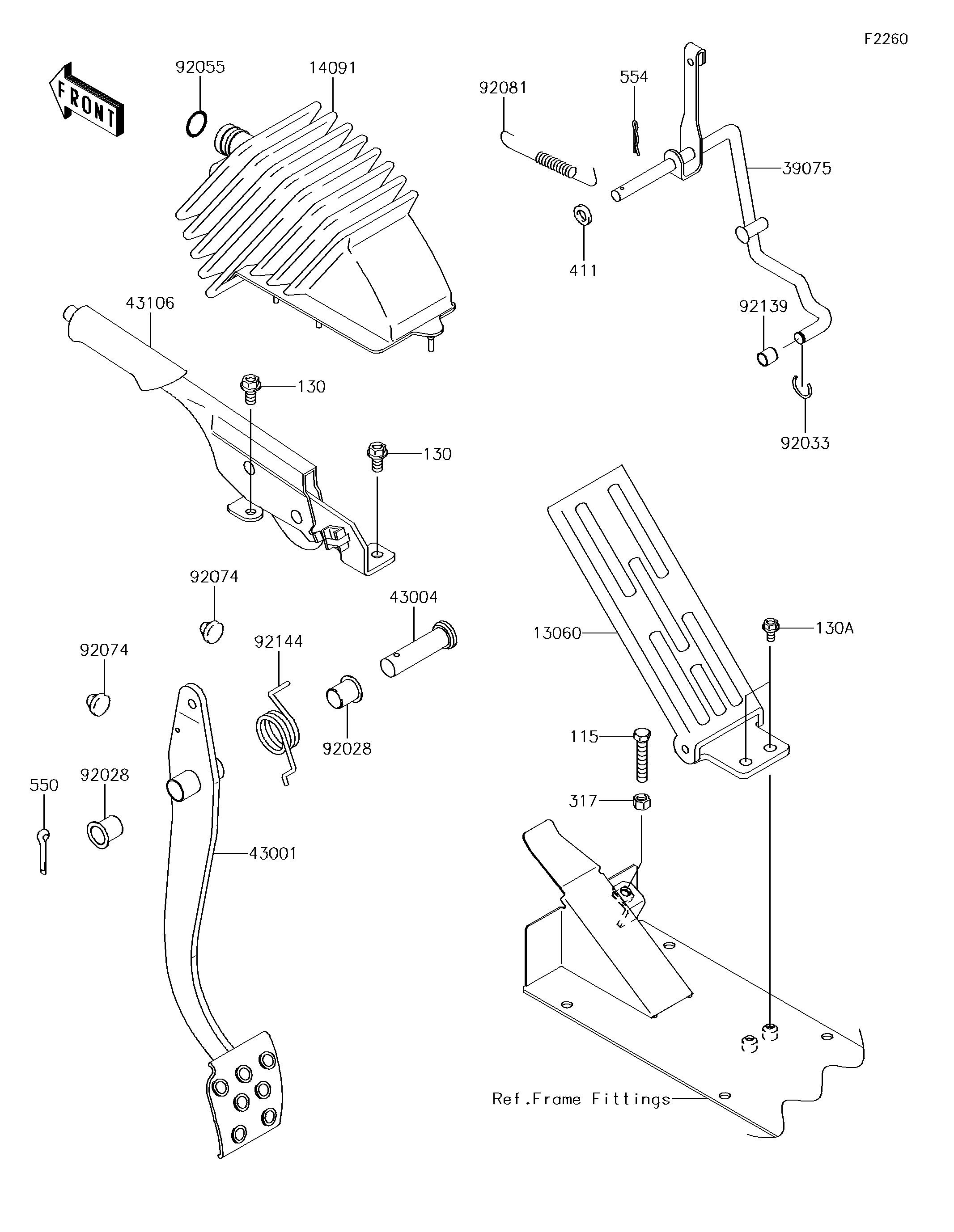

2014 MULE™ 4010 4x4 - Brake Pedal/Throttle Lever

DOWNLOAD PDF
SELECT A NEW PART
13060
14091
39075
43001
43004
43106
92028
92028
92033
92055
92074
92074
92081
92139
92144
115
130
130
130A
317
411
550
554
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PEDAL,THROTTLE 13060 13060-0023 1
COVER,PARKING LEVER 14091 14091-0067 1
LEVER-THROTTLE 39075 39075-0016 1
LEVER-BRAKE,PEDAL 43001 43001-1320 1
SHAFT-BRAKE 43004 43004-1128 1
LEVER-ASSY-PARKING BRAKE 43106 43106-0004 1
BUSHING 92028 92028-1571 2
RING-SNAP 92033 92033-1247 1
RING-O,18X24X3 92055 92055-1633 1
PLUG,7X2 92074 92074-028 2
SPRING 92081 92081-1922 1
BUSHING 92139 92139-0308 1
SPRING 92144 92144-1536 1
BOLT-SMALL-UPSET,8X40 115 115AA0840 1
BOLT-FLANGED,8X16 130 130AA0816 2
BOLT-FLANGED,6X12 130A 130AB0612 2
NUT-HEX-SMALL,8MM 317 317BA0800 1
WASHER-PLAIN,10MM 411 411AA1000 1
PIN-COTTER,2.5X25 550 550AA2525 1
PIN-SNAP,10MM 554 554DA1000 1
