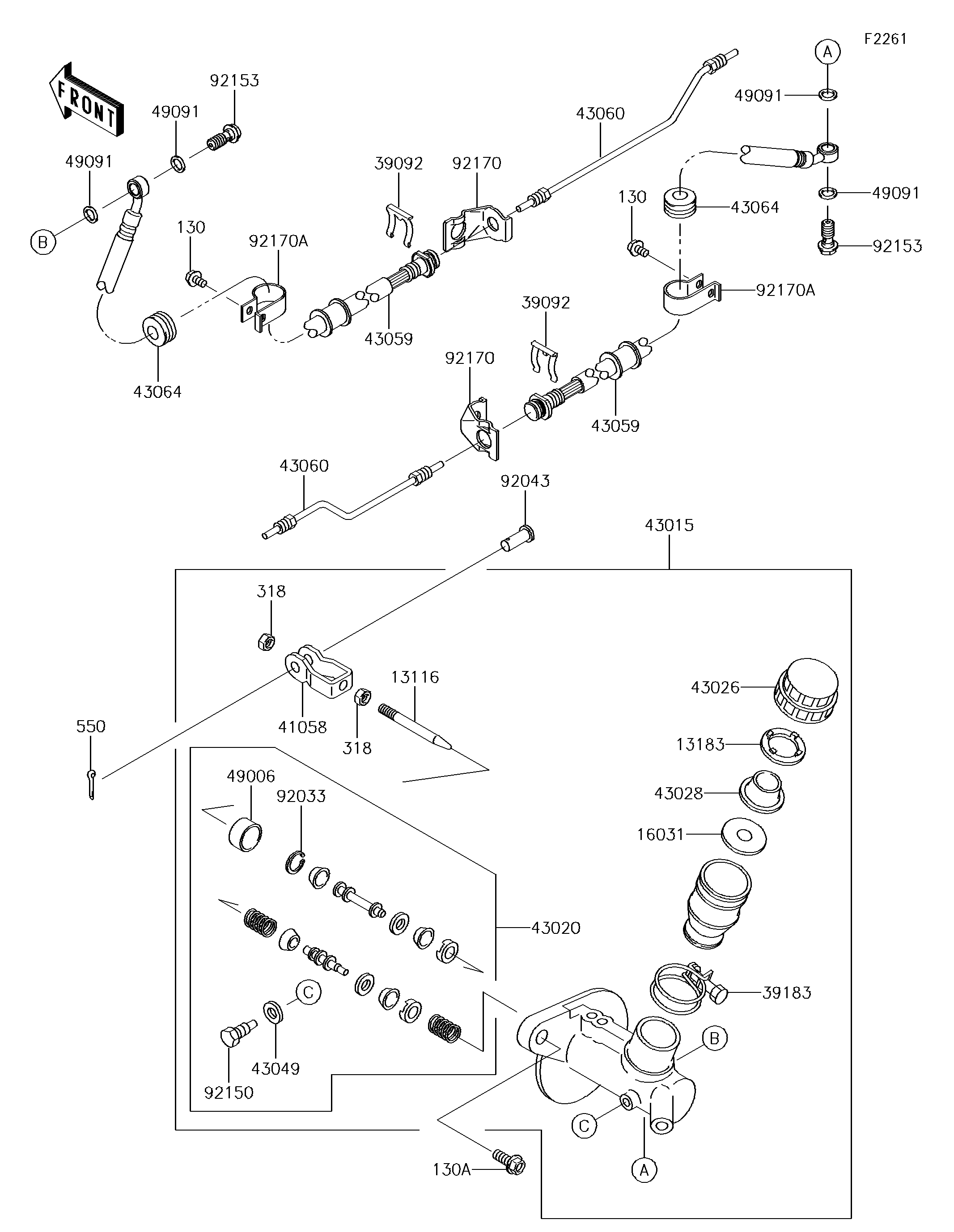

2014 MULE™ 4010 4x4 - Master Cylinder

DOWNLOAD PDF
SELECT A NEW PART
13116
13183
16031
39092
39092
39183
41058
43015
43020
43026
43028
43049
43059
43059
43060
43060
43064
43064
49006
49091
49091
49091
49091
92033
92043
92150
92153
92153
92170
92170
92170A
92170A
130
130
130A
318
318
550
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
ROD-PUSH 13116 13116-1134 1
PLATE 13183 13183-1306 1
FLOAT 16031 16031-1069 1
PIN-HAIR 39092 39092-1052 2
BAND-ASSY 39183 39183-1055 1
RODEND-BRAKE 41058 41058-1053 1
CYLINDER-ASSY-MASTER 43015 43015-1682 1
PISTON-COMP-BRAKE 43020 43020-1124 1
CAP-BRAKE 43026 43026-1067 1
DIAPHRAGM 43028 43028-1078 1
PACKING 43049 43049-1065 1
HOSE-BRAKE,FR 43059 43059-1489 2
PIPE-BRAKE,FR 43060 43060-1082 2
GROMMET,HOSE CLAMP 43064 43064-007 2
BOOT 49006 49006-1245 1
WASHER-SEAL,10.1X14.5X1.5 49091 49091-0001 4
RING-SNAP 92033 92033-1255 1
PIN 92043 92043-1039 1
BOLT,STOP 92150 92150-1165 1
BOLT,OIL,L=23 92153 92153-1419 2
CLAMP,BRAKE PIPE 92170 92170-1093 2
CLAMP,HOSE 92170A 92170-1173 2
BOLT-FLANGED,6X10 130 130AA0610 2
BOLT-FLANGED,8X20 130A 130AA0820 2
NUT-HEX-SMALL,8MM 318 318BA0800 2
PIN-COTTER,2.5X18 550 550AA2518 1
