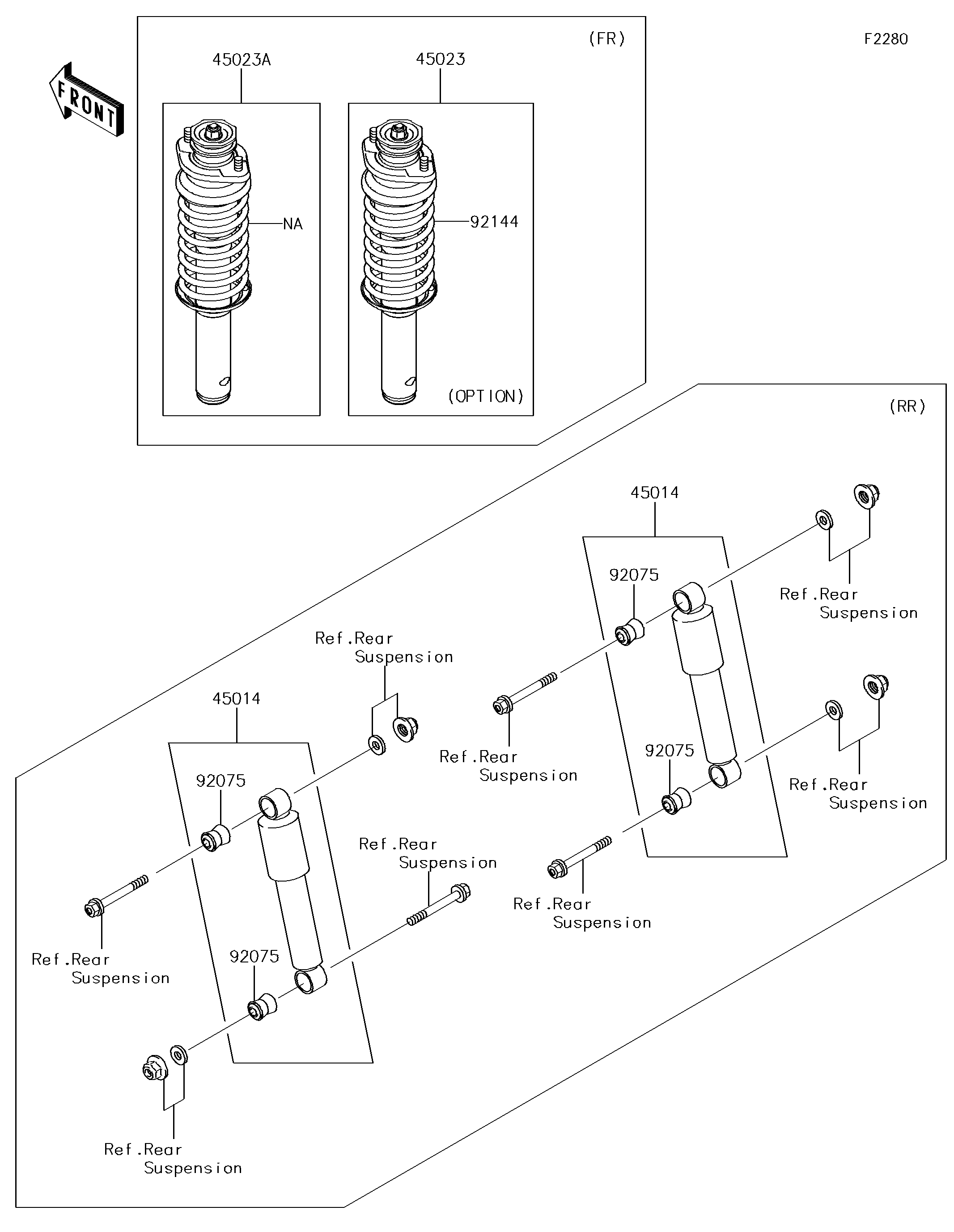

45014
45014
45023
45023A
92075
92075
92075
92075
92144
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SHOCKABSORBER,RR 45014 45014-1435 2
STRUT,FR,K=3.13 45023 45023-1006 2 (OPTION)
STRUT,FR,K=1.95 45023A 45023-7503 2
DAMPER,SHOCKABSORBER 92075 92075-1784 4
SPRING,STRUT,K=30.7N/MM 92144 92144-1919 2 (OPTION)
