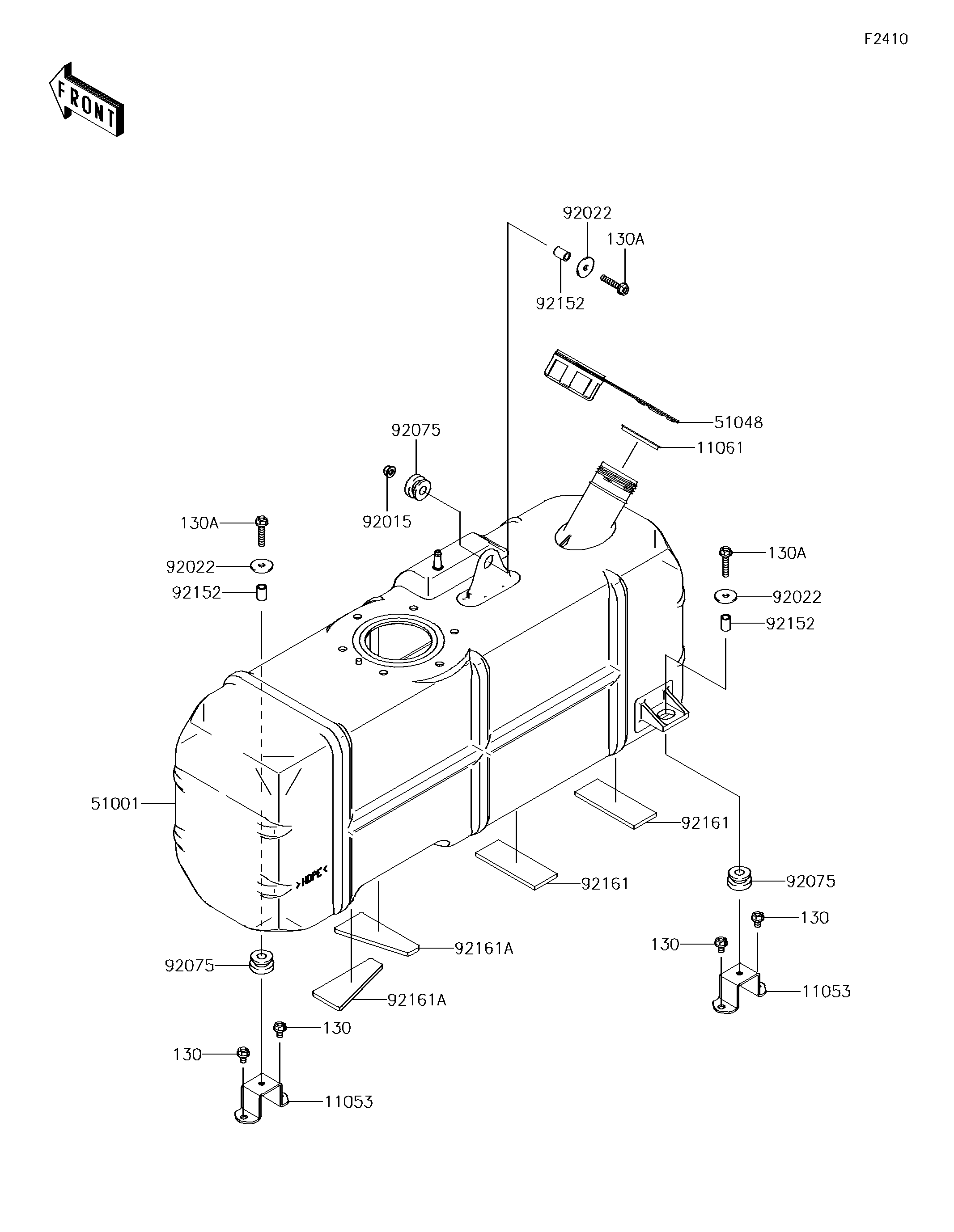

Parts Diagrams |
11053
11053
11061
51001
51048
92015
92022
92022
92022
92075
92075
92075
92152
92152
92152
92161
92161
92161A
92161A
130
130
130
130
130A
130A
130A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET | 11053 | 11053-7512 | 2 | ||
| GASKET,FUEL TANK CAP | 11061 | 11061-0395 | 1 | ||
| TANK-COMP-FUEL | 51001 | 51001-0763 | 1 | ||
| CAP-ASSY-TANK,FUEL | 51048 | 51048-0026 | 1 | ||
| NUT,LOCK,FLANGED,6MM | 92015 | 92015-1675 | 1 | ||
| WASHER,6.5X24X2 | 92022 | 92022-1690 | 3 | ||
| DAMPER | 92075 | 92075-1787 | 3 | ||
| COLLAR,7.02X10.32X15.3 | 92152 | 92152-7511 | 3 | ||
| DAMPER,92X35X4.76 | 92161 | 92161-0813 | 2 | ||
| DAMPER,92X19X4.76 | 92161A | 92161-0814 | 2 | ||
| BOLT-FLANGED,6X10 | 130 | 130BA0610 | 4 | ||
| BOLT-FLANGED,6X30 | 130A | 130BA0630 | 3 |
| BRACKET | |
| REF # | 11053 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| GASKET,FUEL TANK CAP | |
| REF # | 11061 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TANK-COMP-FUEL | |
| REF # | 51001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP-ASSY-TANK,FUEL | |
| REF # | 51048 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,LOCK,FLANGED,6MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,6.5X24X2 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| COLLAR,7.02X10.32X15.3 | |
| REF # | 92152 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| DAMPER,92X35X4.76 | |
| REF # | 92161 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER,92X19X4.76 | |
| REF # | 92161A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,6X10 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,6X30 | |
| REF # | 130A |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
