13183
14091
53061B
53061B
53061C
53061C
53066
53066A
92093
92093
92210
92210

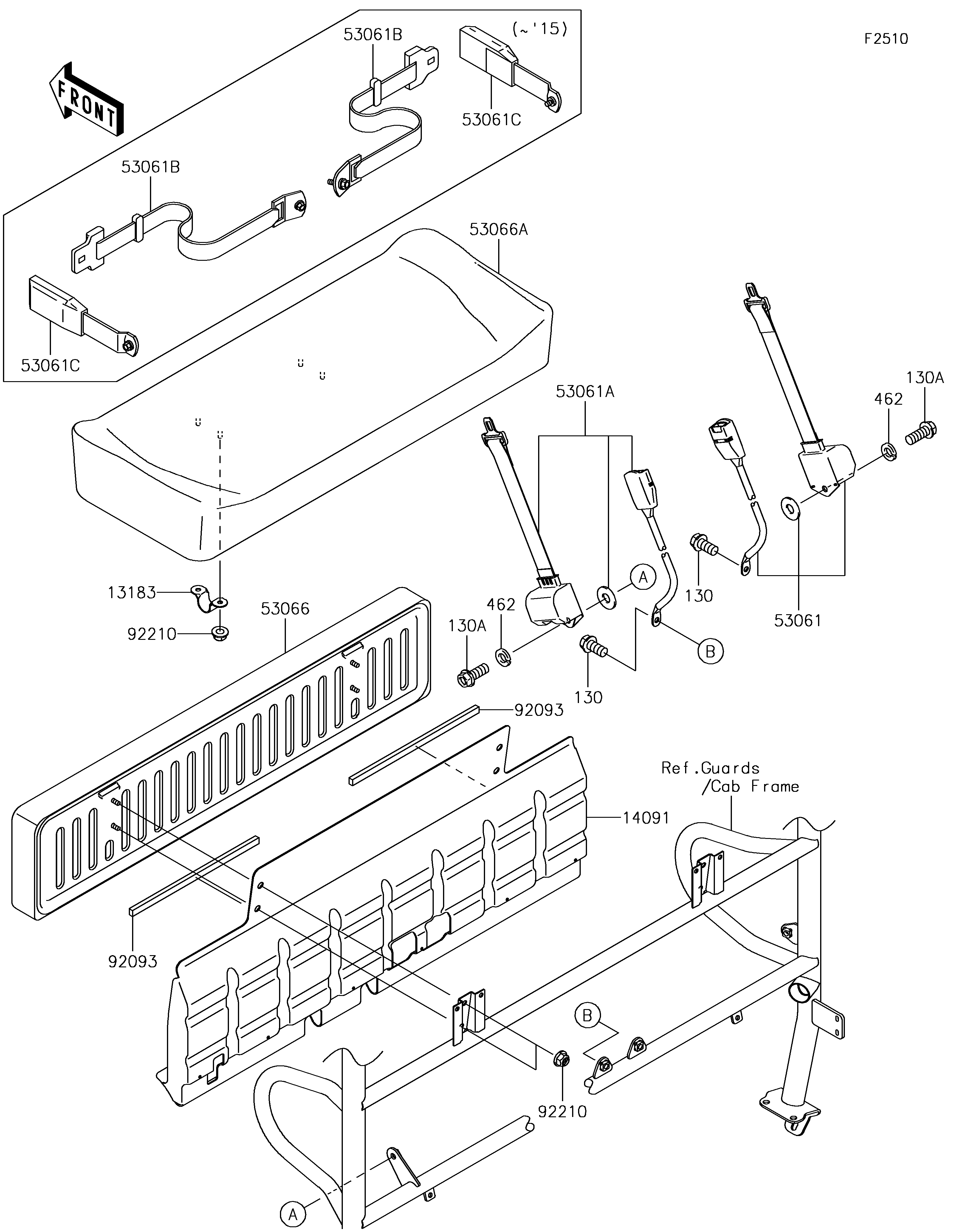

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PLATE,SEAT 13183 13183-1400 2
COVER,SEAT BACK 14091 14091-0529 1
BELT-SEAT,CATCH PLATE 53061B 53061-1013 2
BELT-SEAT,BUCKLE 53061C 53061-1014 2
SEAT-ASSY,BACK,BLACK 53066 53066-0241-MA 1
SEAT-ASSY,FR,LWR,BLACK 53066A 53066-0274-MA 1
SEAL,L=408 92093 92093-0024 2
NUT,FLANGED,LOCK,8MM 92210 92210-0005 8
