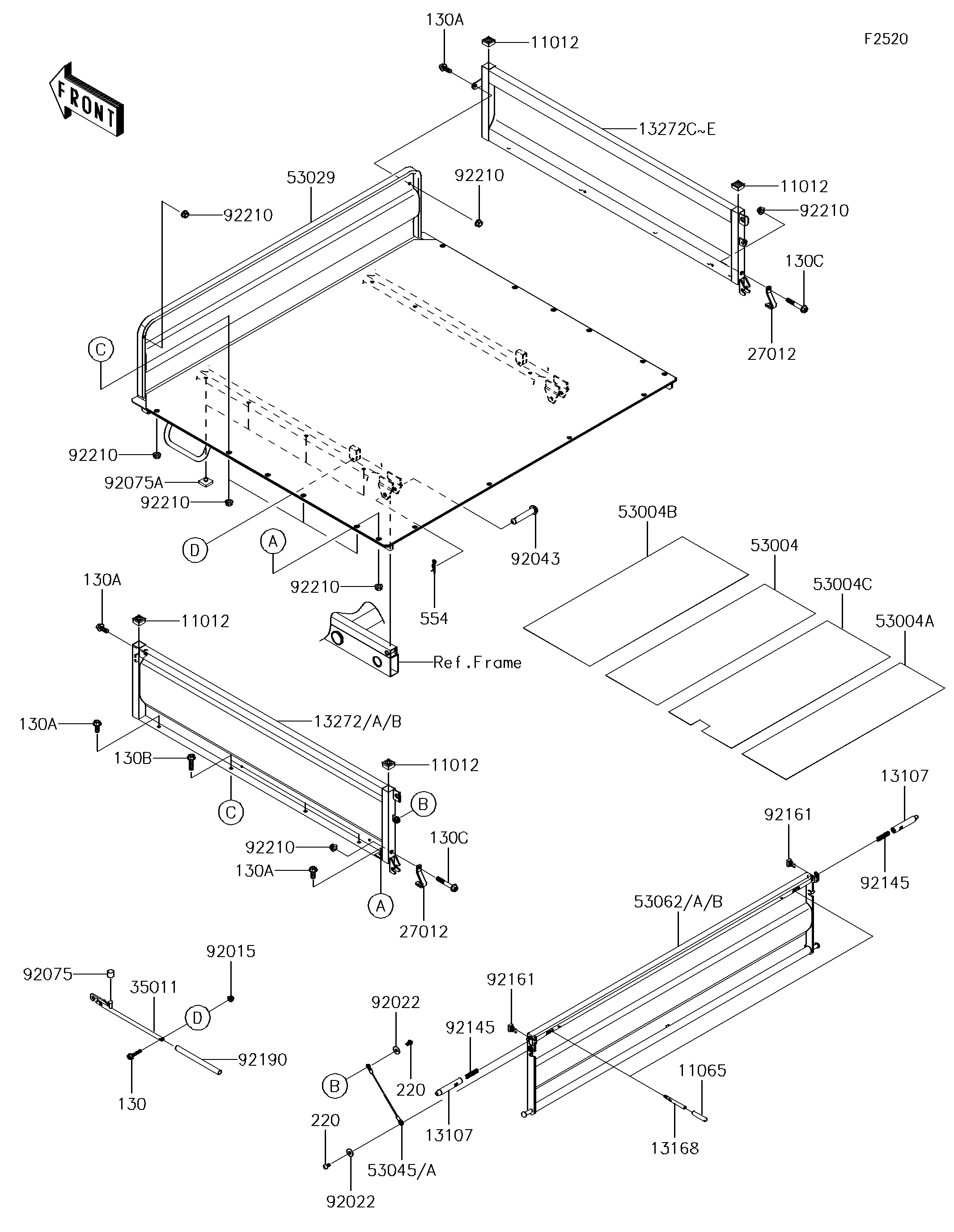

2014 MULE™ 4010 4x4 - Carrier(s)

DOWNLOAD PDF
SELECT A NEW PART
11012
11012
11012
11012
11065
13107
13107
13168
13272
13272A
13272C
13272D
27012
27012
35011
53004
53004A
53004B
53004C
53029
53045
53062
53062A
92015
92022
92022
92043
92075
92075A
92145
92145
92161
92161
92190
92210
92210
92210
92210
92210
92210
92210
130
130A
130A
130A
130A
130B
130C
130C
220
220
554
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP 11012 11012-1784 4
CAP 11065 11065-0126 2
SHAFT 13107 13107-0082 2
LEVER 13168 13168-0090 2
PLATE,SIDE,LH,D.R.RED 13272 13272-1231-16M 1
PLATE,SIDE,LH,W.GREEN 13272A 13272-1231-398 1
PLATE,SIDE,RH,D.R.RED 13272C 13272-1232-16M 1
PLATE,SIDE,RH,W.GREEN 13272D 13272-1232-398 1
HOOK,TAIL GATE 27012 27012-0022 2
STAY,CARRIER STOPPER 35011 35011-1648 1
MAT,CARRIER 53004 53004-0031 1
MAT,CARRIER 53004A 53004-0032 1
MAT,CARRIER 53004B 53004-0034 1
MAT 53004C 53004-1159 1
CARRIER,BASE PLATE,T.BLACK 53029 53029-0063-388 1
HOOK-ASSY,TAIL GATE 53045 53045-0004 2
GATE-TAIL,D.R.RED 53062 53062-0001-16M 1
GATE-TAIL,W.GREEN 53062A 53062-0001-398 1
NUT,LOCK,FLANGED,6MM 92015 92015-1675 1
WASHER,7X18X1.2 92022 92022-1545 4
PIN,12X65 92043 92043-1428 2
DAMPER 92075 92075-1817 1
DAMPER 92075A 92075-1882 8
SPRING,TENSIONER 92145 92145-1215 2
DAMPER 92161 92161-0258 2
TUBE,13X16X200 92190 92190-1401 1
NUT,FLANGED,8MM 92210 92210-0555 14
BOLT-FLANGED,6X30 130 130BA0630 1
BOLT-FLANGED,8X20 130A 130BB0820 6
BOLT-FLANGED,8X30 130B 130BB0830 6
BOLT-FLANGED,8X50 130C 130BB0850 2
SCREW-PAN-CROS,6X10 220 220AB0610 4
PIN-SNAP,12MM 554 554DA1200 2
