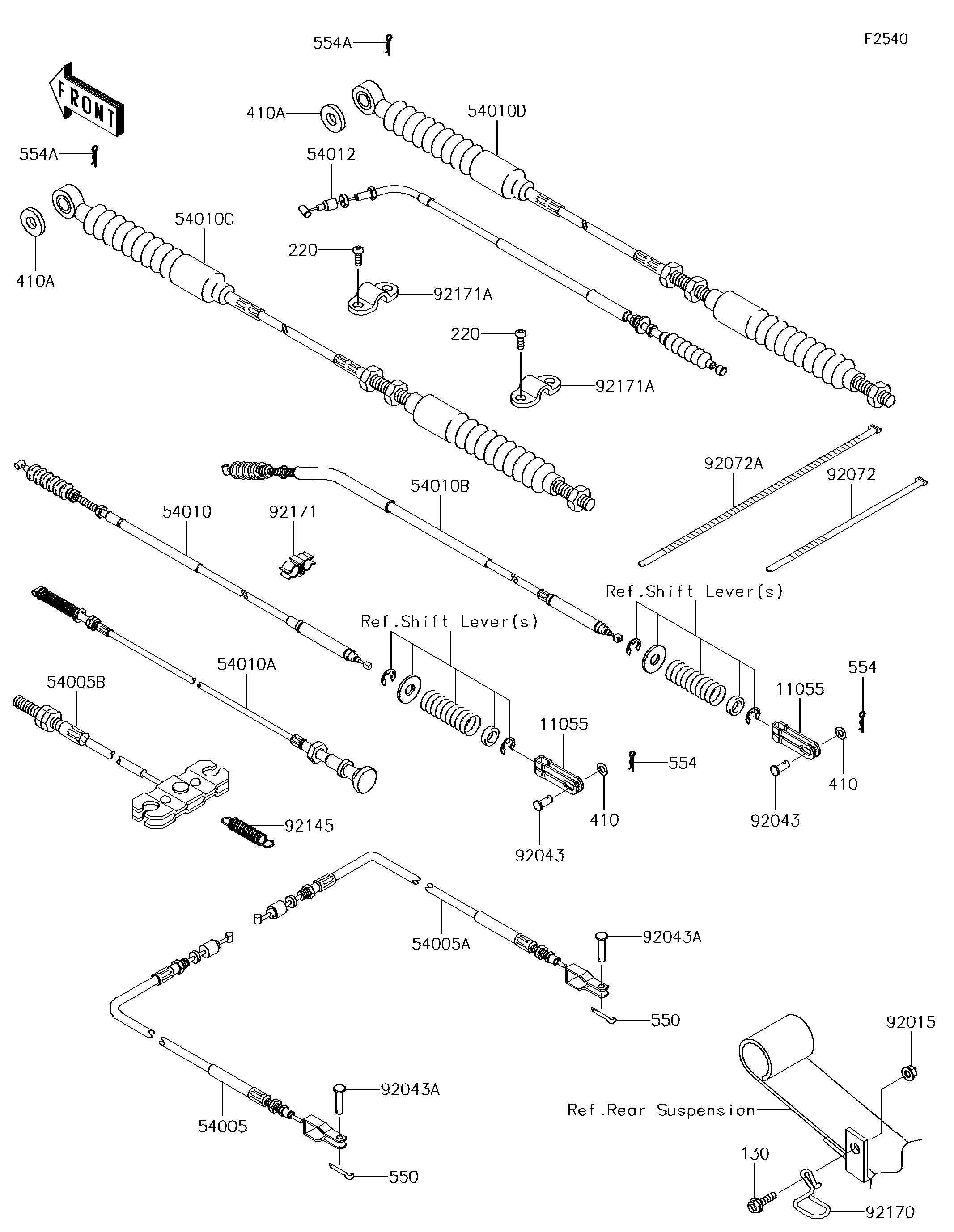

Parts Diagrams |
11055
11055
54005
54005A
54005B
54010
54010A
54010B
54010C
54010D
54012
92015
92043
92043
92043A
92043A
92072
92072A
92145
92170
92171
92171A
92171A
130
220
220
410
410
410A
410A
550
550
554
554
554A
554A
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BRACKET,DIFF LOCK | 11055 | 11055-7505 | 2 | ||
CABLE-BRAKE,PARKING,RR,LH | 54005 | 54005-0306 | 1 | ||
CABLE-BRAKE,PARKING,RR,RH | 54005A | 54005-0307 | 1 | ||
CABLE-BRAKE,PARKING,FR | 54005B | 54005-1198 | 1 | ||
CABLE,2-4WD | 54010 | 54010-0044 | 1 | ||
CABLE,HOOD | 54010A | 54010-0600 | 1 | ||
CABLE,DIFF LOCK | 54010B | 54010-1120 | 1 | ||
CABLE,SHIFT CONTROL | 54010C | 54010-1121 | 1 | ||
CABLE,HI-LOW | 54010D | 54010-1124 | 1 | ||
CABLE-THROTTLE | 54012 | 54012-0251 | 1 | ||
NUT,LOCK,FLANGED,6MM | 92015 | 92015-1675 | 1 | ||
PIN,6X11 | 92043 | 92043-092 | 2 | ||
PIN | 92043A | 92043-1039 | 2 | ||
BAND,L=188 | 92072 | 92072-1239 | 7 | ||
BAND,L=368.3 | 92072A | 92072-3872 | 2 | ||
SPRING | 92145 | 92145-7506 | 1 | ||
CLAMP,CABLE | 92170 | 92170-1372 | 1 | ||
CLAMP | 92171 | 92171-0129 | 1 | ||
CLAMP | 92171A | 92171-1203 | 2 | ||
BOLT-FLANGED,6X20 | 130 | 130AA0620 | 1 | ||
SCREW-PAN-CROS,5X14 | 220 | 220AA0514 | 4 | ||
WASHER-PLAIN-SMALL | 410 | 410AA0600 | 2 | ||
WASHER-PLAIN-SMALL,8MM | 410A | 410AA0800 | 2 | ||
PIN-COTTER,2.0X22 | 550 | 550AA2022 | 2 | ||
PIN-SNAP,1.2X21.2 | 554 | 554DA0600 | 2 | ||
PIN-SNAP | 554A | 554DA0800 | 2 |
BRACKET,DIFF LOCK | |
REF # | 11055 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CABLE-BRAKE,PARKING,RR,LH | |
REF # | 54005 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CABLE-BRAKE,PARKING,RR,RH | |
REF # | 54005A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CABLE-BRAKE,PARKING,FR | |
REF # | 54005B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CABLE,2-4WD | |
REF # | 54010 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CABLE,HOOD | |
REF # | 54010A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CABLE,DIFF LOCK | |
REF # | 54010B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CABLE,SHIFT CONTROL | |
REF # | 54010C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CABLE,HI-LOW | |
REF # | 54010D |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CABLE-THROTTLE | |
REF # | 54012 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,LOCK,FLANGED,6MM | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIN,6X11 | |
REF # | 92043 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
PIN | |
REF # | 92043A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BAND,L=188 | |
REF # | 92072 |
---|---|
PART NUMBER | |
QUANTITY | 7 |
DESTINATION | |
REMARKS |
BAND,L=368.3 | |
REF # | 92072A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SPRING | |
REF # | 92145 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP,CABLE | |
REF # | 92170 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP | |
REF # | 92171 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP | |
REF # | 92171A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT-FLANGED,6X20 | |
REF # | 130 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW-PAN-CROS,5X14 | |
REF # | 220 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
WASHER-PLAIN-SMALL | |
REF # | 410 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER-PLAIN-SMALL,8MM | |
REF # | 410A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
PIN-COTTER,2.0X22 | |
REF # | 550 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
PIN-SNAP,1.2X21.2 | |
REF # | 554 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
PIN-SNAP | |
REF # | 554A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
