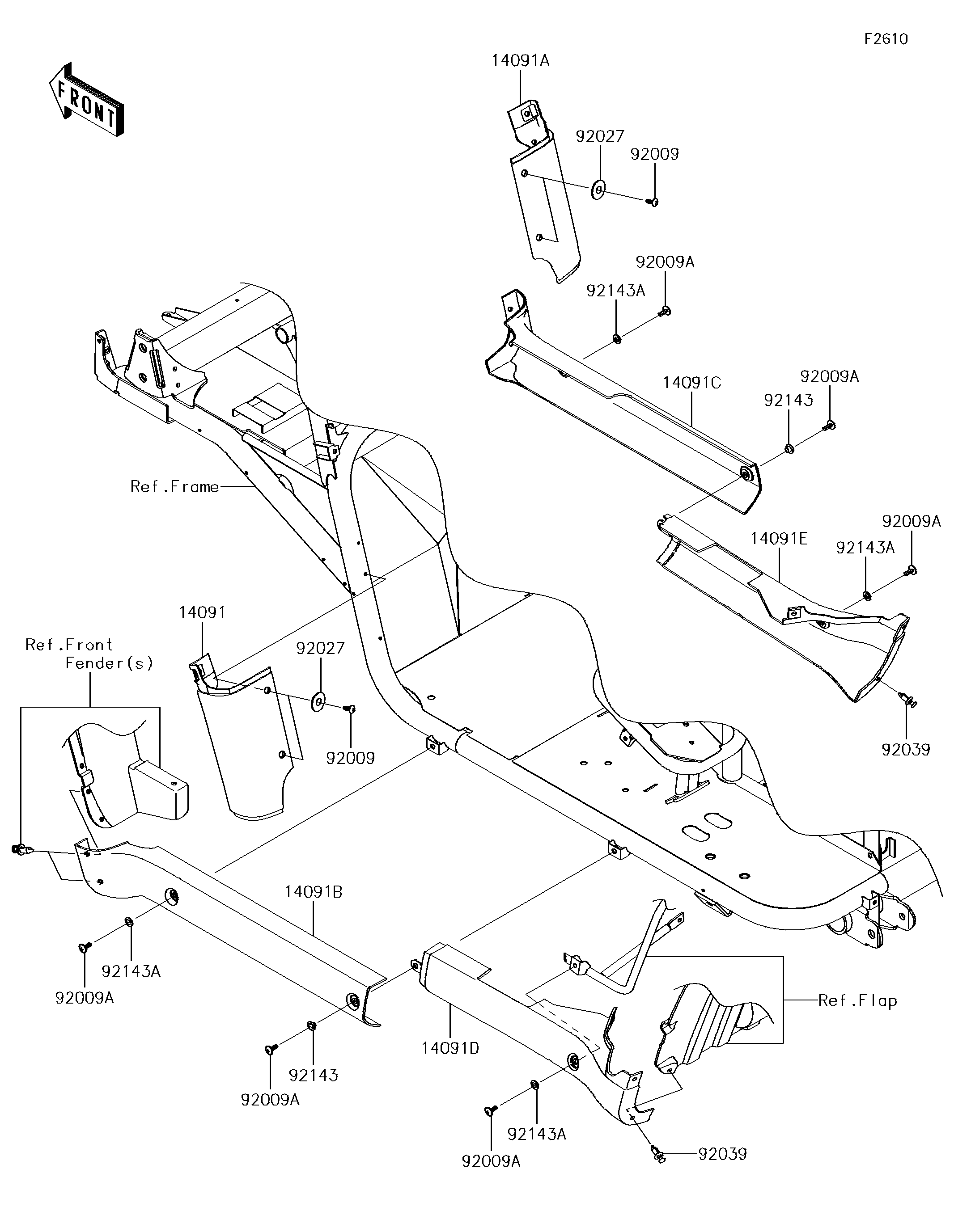

2014 MULE™ 4010 4x4 - Side Covers/Chain Cover
14091
14091A
14091B
14091C
14091D
14091E
92009
92009
92009A
92009A
92009A
92009A
92009A
92009A
92027
92027
92039
92039
92143
92143
92143A
92143A
92143A
92143A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER,FR FENDER,LWR,LH,F.BLACK | 14091 | 14091-0821-6Z | 1 | ||
| COVER,FR FENDER,LWR,RH,F.BLACK | 14091A | 14091-0822-6Z | 1 | ||
| COVER,SIDE STEP,FR,LH,F.BLACK | 14091B | 14091-0823-6Z | 1 | ||
| COVER,SIDE STEP,FR,RH,F.BLACK | 14091C | 14091-0824-6Z | 1 | ||
| COVER,SIDE STEP,RR,LH,F.BLACK | 14091D | 14091-0900-6Z | 1 | ||
| COVER,SIDE STEP,RR,RH,F.BLACK | 14091E | 14091-0901-6Z | 1 | ||
| SCREW,TAPPING,6X16 | 92009 | 92009-1166 | 4 | ||
| SCREW,6X16 | 92009A | 92009-1621 | 6 | ||
| COLLAR,L=4.7 | 92027 | 92027-1964 | 4 | ||
| RIVET | 92039 | 92039-0776 | 2 | ||
| COLLAR | 92143 | 92143-1057 | 2 | ||
| COLLAR | 92143A | 92143-1087 | 4 |
| COVER,FR FENDER,LWR,LH,F.BLACK | |
| REF # | 14091 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,FR FENDER,LWR,RH,F.BLACK | |
| REF # | 14091A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,SIDE STEP,FR,LH,F.BLACK | |
| REF # | 14091B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,SIDE STEP,FR,RH,F.BLACK | |
| REF # | 14091C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,SIDE STEP,RR,LH,F.BLACK | |
| REF # | 14091D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,SIDE STEP,RR,RH,F.BLACK | |
| REF # | 14091E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,TAPPING,6X16 | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SCREW,6X16 | |
| REF # | 92009A |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| COLLAR,L=4.7 | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| RIVET | |
| REF # | 92039 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 92143 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 92143A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
