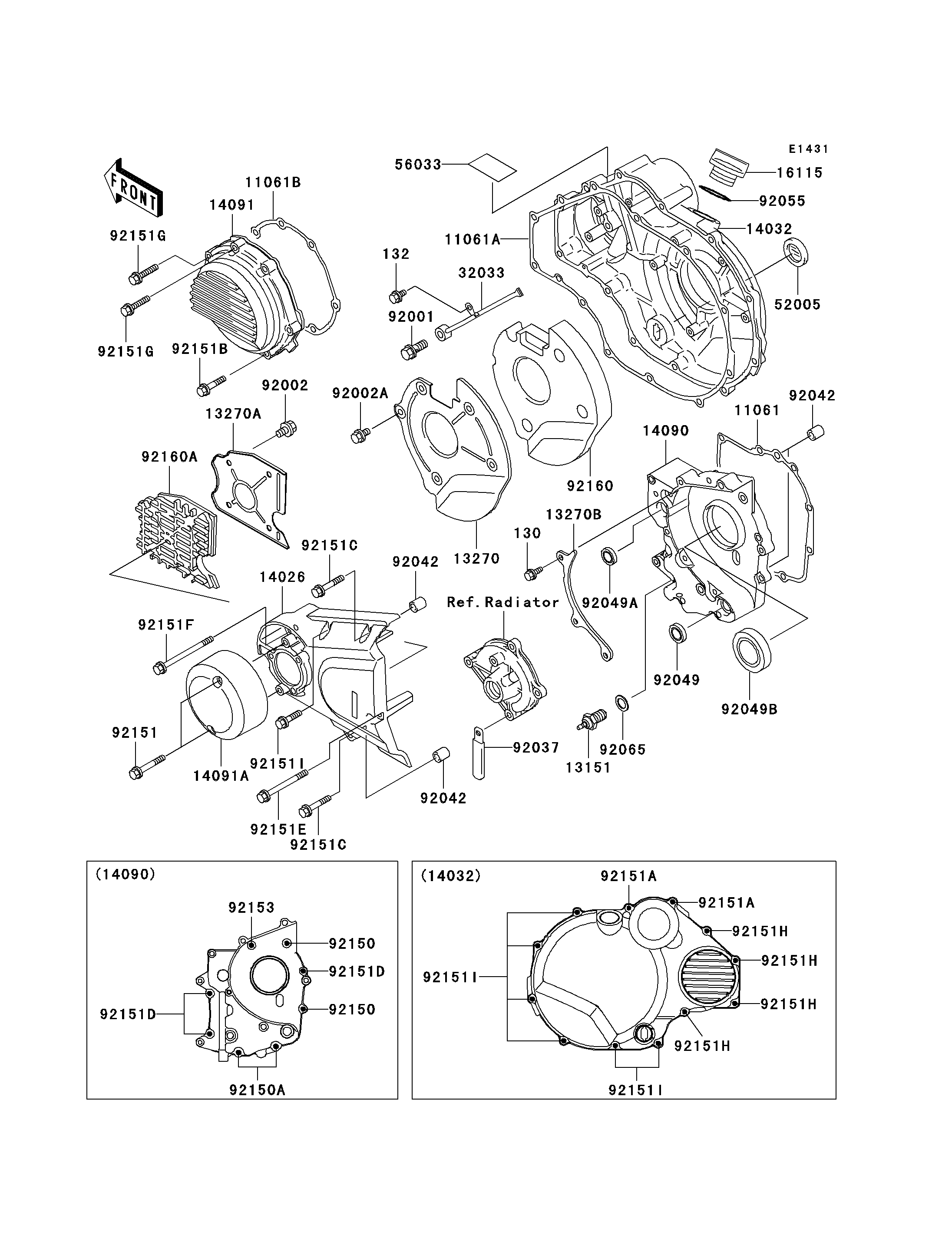

Parts Diagrams |
11061
11061
11061A
11061A
11061B
11061B
13151
13151
13270
13270
13270A
13270A
13270B
13270B
14026
14026
14032
14032
14090
14090
14091
14091
14091A
14091A
16115
16115
32033
32033
52005
52005
56033
56033
92001
92001
92002
92002
92002A
92002A
92037
92037
92042
92042
92042
92042
92042
92042
92049
92049
92049A
92049A
92049B
92049B
92055
92055
92065
92065
92150
92150
92150
92150
92150A
92150A
92151
92151
92151A
92151A
92151A
92151A
92151B
92151B
92151C
92151C
92151C
92151C
92151D
92151D
92151D
92151D
92151E
92151E
92151F
92151F
92151G
92151G
92151G
92151G
92151H
92151H
92151H
92151H
92151H
92151H
92151H
92151H
92151I
92151I
92151I
92151I
92151I
92151I
92153
92153
92160
92160
130
130
132
132
92160A
92160A
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET,TRANSMISSION COVER | 11061 | 11061-1093 | 1 | ||
GASKET,CLUTCH COVER | 11061A | 11061-1154 | 1 | ||
GASKET,PULSING COVER | 11061B | 11061-1155 | 1 | ||
SWITCH-COMP,NEUTRAL | 13151 | 13151-1080 | 1 | ||
PLATE | 13270 | 13270-1765 | 1 | ||
PLATE | 13270A | 13270-1771 | 1 | ||
PLATE,TRANSMISSION | 13270B | 13270-1911 | 1 | ||
COVER-CHAIN | 14026 | 14026-1280 | 1 | ||
COVER-CLUTCH | 14032 | 14032-1519 | 1 | ||
COVER,TRANSMISSION | 14090 | 14090-1877 | 1 | ||
COVER,PULSING | 14091 | 14091-1331 | 1 | ||
COVER,RELEASE | 14091A | 14091-1332 | 1 | ||
CAP-OIL FILLER | 16115 | 16115-1009 | 1 | ||
PIPE,CLUTCH COVER | 32033 | 32033-1204 | 1 | ||
GAUGE,OIL LEVEL | 52005 | 52005-1009 | 1 | ||
LABEL-MANUAL,OIL CAPACITY | 56033 | 56033-1073 | 1 | ||
BOLT,BANJO,8X20 | 92001 | 92001-1855 | 1 | ||
BOLT,6X10 | 92002 | 92002-1449 | 4 | ||
BOLT,6X10 | 92002A | 92002-1541 | 5 | ||
CLAMP,L=60 | 92037 | 92037-1069 | 1 | ||
PIN,DOWEL,6.3X8X14 | 92042 | 92042-007 | 4 | ||
SEAL-OIL | 92049 | 92049-1564 | 1 | ||
SEAL-OIL | 92049A | 92049-1566 | 1 | ||
SEAL-OIL | 92049B | 92049-1567 | 1 | ||
RING-O,31.7X2.4 | 92055 | 92055-049 | 1 | ||
GASKET,10.5X16X1 | 92065 | 92065-058 | 1 | ||
BOLT,6X20 | 92150 | 92150-1010 | 2 | ||
BOLT,6X50 | 92150A | 92150-1968 | 2 | ||
BOLT,6X40 | 92151 | 92151-1131 | 2 | ||
BOLT,6X55 | 92151A | 92151-1132 | 2 | ||
BOLT,6X30 | 92151B | 92151-1134 | 5 | ||
BOLT,6X35 | 92151C | 92151-1135 | 2 | ||
BOLT,6X25 | 92151D | 92151-1190 | 3 | ||
BOLT,6X65 | 92151E | 92151-1199 | 1 | ||
BOLT,6X80 | 92151F | 92151-1200 | 1 | ||
BOLT,6X30 | 92151G | 92151-1201 | 2 | ||
BOLT,6X40 | 92151H | 92151-1202 | 4 | ||
BOLT,6X25 | 92151I | 92151-1930 | 7 | ||
BOLT,M6X20 | 92153 | 92153-1114 | 1 | ||
DAMPER | 92160 | 92160-1812 | 1 | ||
BOLT-FLANGED | 130 | 130S0614 | 3 | ||
BOLT-FLANGED-SMALL | 132 | 132H0510 | 1 | ||
DAMPER | 92160A | 92160-1819 | 1 |
