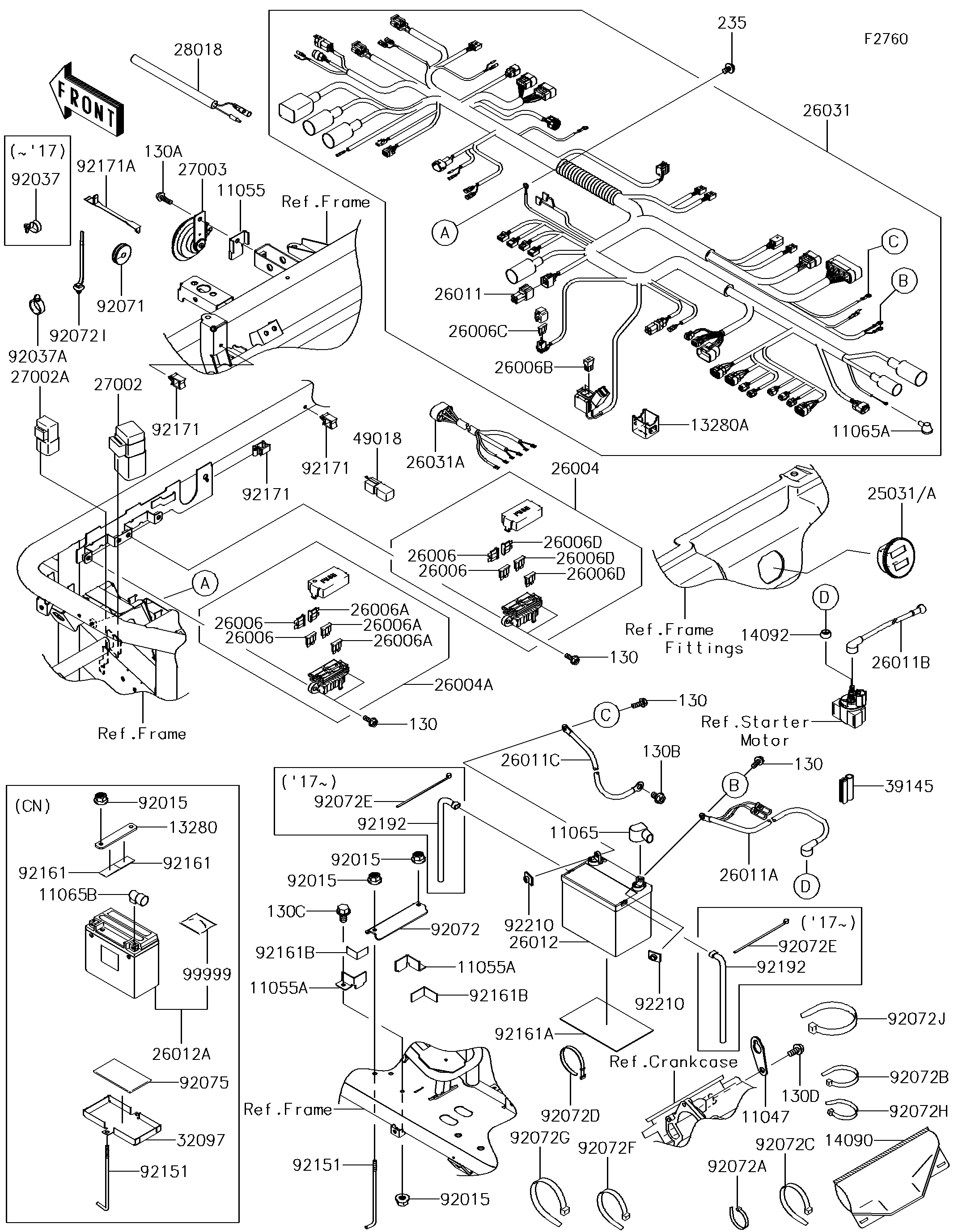

2014 MULE™ 4010 4x4 - Chassis Electrical Equipment
11047
11047
11047
11055
11055
11055
11065A
11065A
11065A
13280A
13280A
13280A
14090
14090
14090
14092
14092
14092
25031
25031
25031
26004
26004
26004
26004A
26004A
26004A
26006
26006
26006
26006
26006
26006
26006
26006
26006
26006
26006
26006
26006A
26006A
26006A
26006A
26006A
26006A
26006A
26006A
26006A
26006B
26006B
26006B
26006C
26006C
26006C
26006D
26006D
26006D
26006D
26006D
26006D
26006D
26006D
26006D
26011
26011
26011
26011A
26011A
26011A
26011B
26011B
26011B
26011C
26011C
26011C
26031
26031
26031
26031A
26031A
26031A
27002
27002
27002
27002A
27002A
27002A
27003
27003
27003
28018
28018
28018
39145
39145
39145
49018
49018
49018
92037
92037
92037
92037A
92037A
92037A
92071
92071
92071
92072A
92072A
92072A
92072B
92072B
92072B
92072C
92072C
92072C
92072D
92072D
92072D
92072F
92072F
92072F
92072G
92072G
92072G
92072H
92072H
92072H
92072J
92072J
92072J
92151
92151
92151
92151
92151
92151
92171
92171
92171
92171
92171
92171
92171
92171
92171
92171A
92171A
92171A
130A
130A
130A
130B
130B
130B
130D
130D
130D
235
235
235
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BRACKET,F.BLACK | 11047 | 11047-2056-9H | 1 | ||
BRACKET,HORN | 11055 | 11055-0167 | 1 | ||
CAP,NEUTRAL SW. | 11065A | 11065-0726 | 1 | ||
HOLDER | 13280A | 13280-7508 | 1 | ||
COVER,COUPLER | 14090 | 14090-1611 | 1 | ||
COVER,MAGNETIC SW. | 14092 | 14092-0851 | 1 | ||
METER-ASSY | 25031 | 25031-0455 | 1 | ||
FUSE-ASSY | 26004 | 26004-0018 | 1 | ||
FUSE-ASSY | 26004A | 26004-0019 | 1 | ||
FUSE,BLADE,30A,GREEN | 26006 | 26006-0004 | 4 | ||
FUSE,BLADE,10A,RED | 26006A | 26006-0005 | 3 | ||
FUSE,SLOW BLOW,BT,40A,GREEN | 26006B | 26006-0014 | 2 | ||
FUSE,7.5A | 26006C | 26006-0015 | 2 | ||
FUSE,BLADE,20A,YELLOW | 26006D | 26006-1051 | 3 | ||
WIRE-LEAD | 26011 | 26011-0037 | 1 | ||
WIRE-LEAD,BATTERY(+) | 26011A | 26011-0813 | 1 | ||
WIRE-LEAD,STARTER | 26011B | 26011-0814 | 1 | ||
WIRE-LEAD,BATTERY(-) | 26011C | 26011-1787 | 1 | ||
HARNESS,MAIN | 26031 | 26031-1535 | 1 | ||
HARNESS | 26031A | 26031-2080 | 1 | ||
RELAY-ASSY | 27002 | 27002-1068 | 1 | ||
RELAY-ASSY | 27002A | 27002-1088 | 1 | ||
HORN | 27003 | 27003-1330 | 1 | ||
RESISTOR | 28018 | 28018-0553 | 1 | ||
TRIM-SEAL | 39145 | 39145-0046 | 1 | ||
DIODE | 49018 | 49018-0005 | 1 | ||
CLAMP,SPEED,L=58 | 92037 | 92037-1163 | 2 | ||
CLAMP,HOSE | 92037A | 92037-1827 | 4 | ||
GROMMET | 92071 | 92071-1136 | 1 | ||
BAND,L=123 | 92072A | 92072-030 | 3 | ||
BAND,L=149 | 92072B | 92072-031 | 2 | ||
BAND,L=218 | 92072C | 92072-032 | 2 | ||
BAND,L=186 | 92072D | 92072-056 | 1 | ||
BAND,L=202 | 92072F | 92072-1195 | 1 | ||
BAND,L=250 | 92072G | 92072-1237 | 2 | ||
BAND,L=188 | 92072H | 92072-1239 | 15 | ||
BAND,L=368.3 | 92072J | 92072-3872 | 4 | ||
BOLT,BATTERY | 92151 | 92151-1897 | 2 | ||
CLAMP | 92171 | 92171-0290 | 3 | ||
CLAMP | 92171A | 92171-1365 | 1 | ||
BOLT-FLANGED,6X20 | 130A | 130BA0620 | 1 | ||
BOLT-FLANGED,8X12 | 130B | 130BA0812 | 1 | ||
BOLT-FLANGED,8X16 | 130D | 130BA0816 | 1 | ||
SCREW-PAN-WP-CROS,6X10 | 235 | 235AA0610 | 1 |
