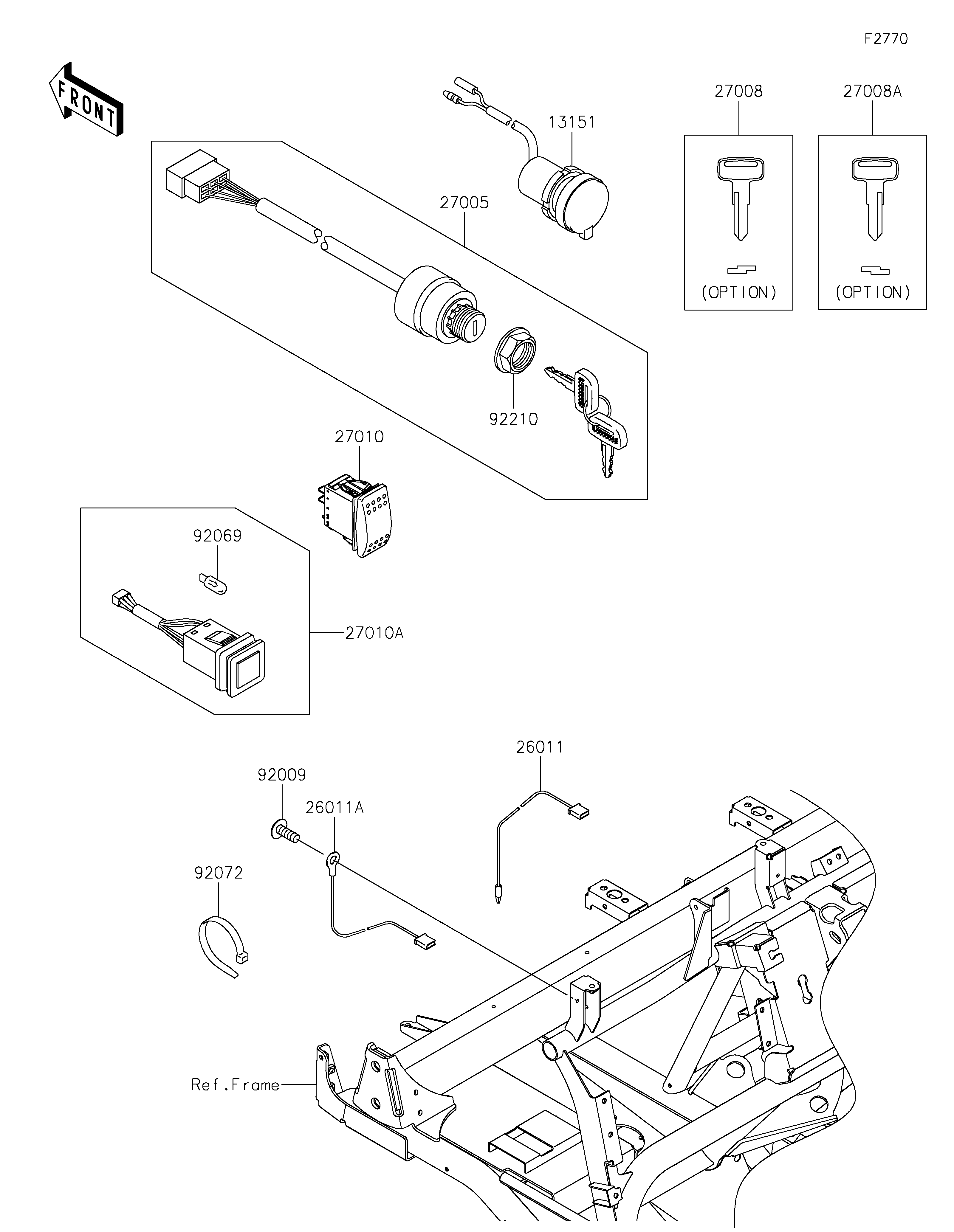

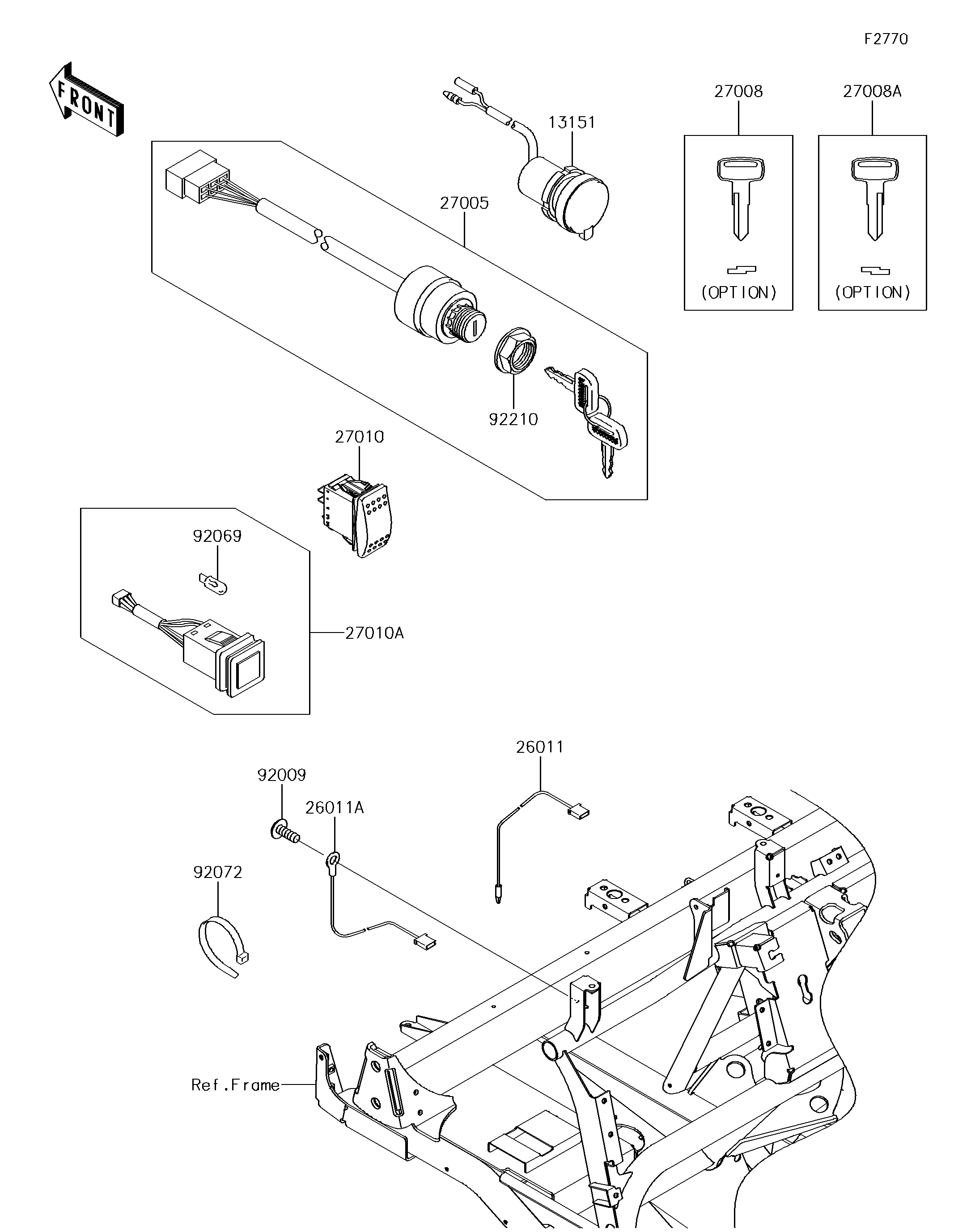

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SWITCH-COMP,D.C.TERMINAL 13151 13151-0003 1
WIRE-LEAD,360MM 26011 26011-0796 1
WIRE-LEAD,320MM 26011A 26011-0797 1
SWITCH-ASSY-IGNITION 27005 27005-0011 1
KEY-LOCK,BLANK 27008 27008-1153 1 (OPTION)
KEY-LOCK,BLANK 27008A 27008-1157 1 (OPTION)
SWITCH,HORN 27010 27010-0734 1
SWITCH,HEAD LAMP 27010A 27010-0814 1
SCREW,TAPPING,6X16 92009 92009-1166 1
BULB,12V 1.7W 92069 92069-0083 1
BAND,L=188 92072 92072-1239 1
NUT,IGNITION SWITCH 92210 92210-1264 1
