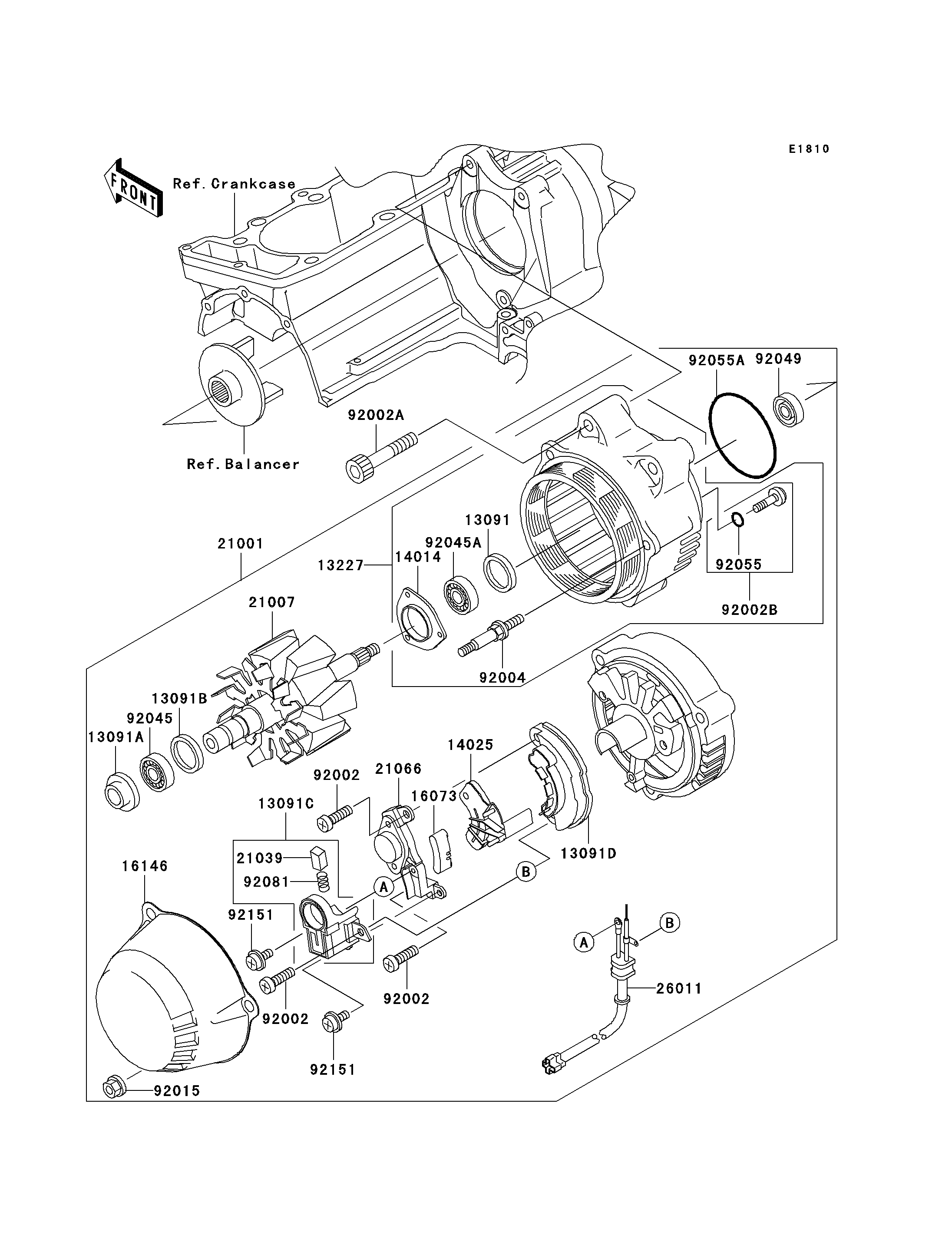

2004 ZRX1200R - Generator

DOWNLOAD PDF
SELECT A NEW PART
13091
13091A
13091B
13091C
13091D
13227
14014
14025
16073
16146
21001
21007
21039
21066
26011
92002
92002
92002
92002A
92002B
92004
92015
92045
92045A
92049
92055
92055A
92081
92151
92151
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER,BEARING 13091 13091-1326 1
HOLDER,COVER 13091A 13091-1327 1
HOLDER,BEARING 13091B 13091-1328 1
HOLDER,BRUSH 13091C 13091-1465 1
RECTIFIER 13091D 13091-1466 1
HOUSING,GENERATOR 13227 13227-1127 1
PLATE-POSITION 14014 14014-1065 1
COVER,RECTIFIER 14025 14025-1942 1
INSULATOR 16073 16073-1062 1
COVER-ASSY,GENERATOR 16146 16146-1074 1
GENERATOR 21001 21001-1150 1
ROTOR,GENERATOR 21007 21007-1196 1
BRUSH,CARBON 21039 21039-1052 2
REGULATOR-VOLTAGE 21066 21066-1076 1
WIRE-LEAD,GENERATOR 26011 26011-1671 1
SCREW,5X17.5 92002 92002-1380 3
BOLT,SOCKET,8X45 92002A 92002-1716 3
SCREW 92002B 92002-1856 3
STUD 92004 92004-1196 3
NUT 92015 92015-1800 3
BEARING-BALL,#6002NC 92045 92045-1133 1
BEARING-BALL,#6002 92045A 92045-1350 1
SEAL-OIL 92049 92049-1467 1
RING-O,3.5MM 92055 92055-1264 3
RING-O,70.6X2.4 92055A 92055-1366 1
SPRING,BRUSH 92081 92081-1759 2
SCREW,4X6 92151 92151-1245 2
