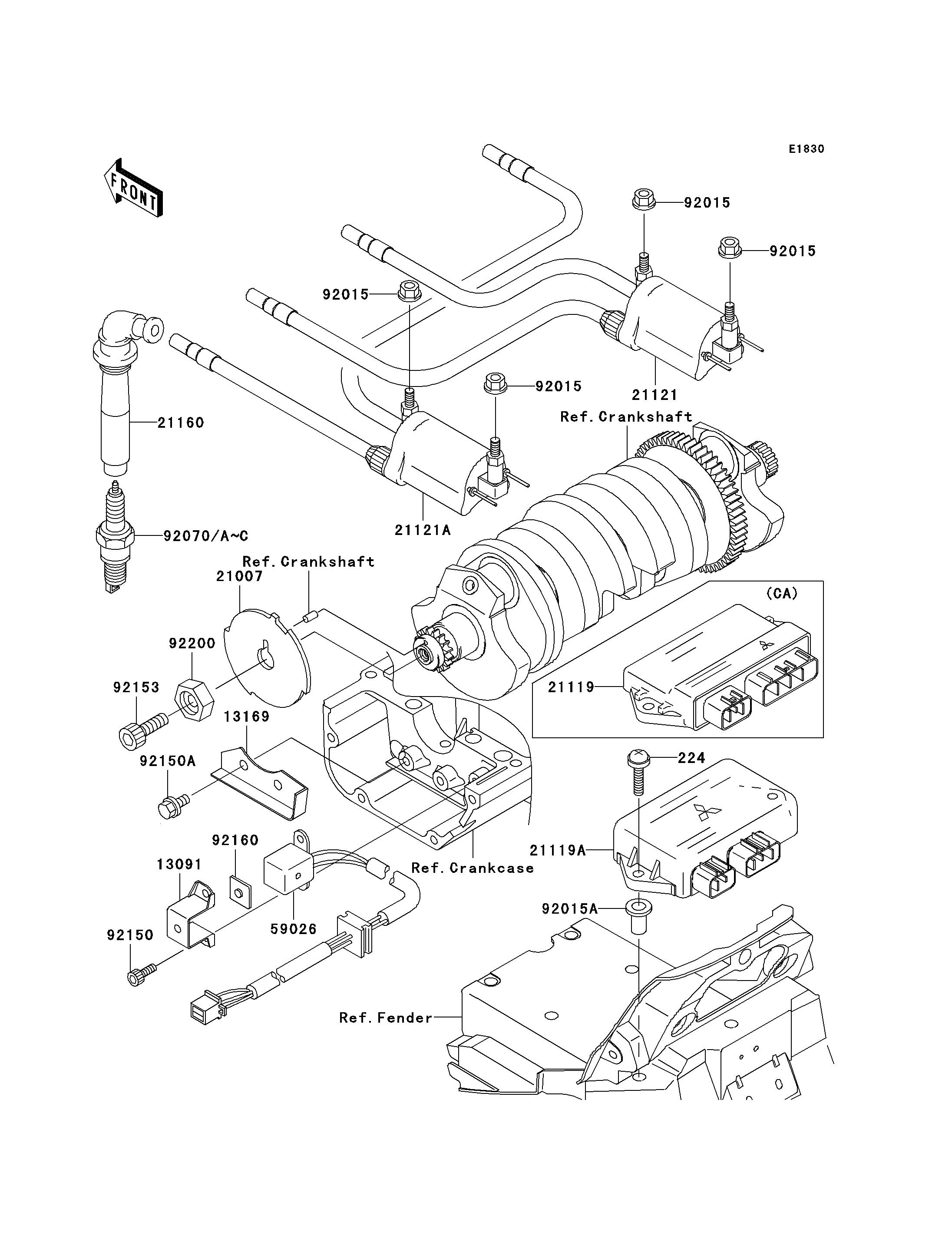

2004 ZRX1200R - Ignition System

DOWNLOAD PDF
SELECT A NEW PART
224
13091
13169
21007
21121
21121A
21160
59026
92015
92015
92015
92015
92015A
92070
92070A
92070B
92070C
92150
92150A
92153
92160
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW-PAN-WP-CROS 224 224C0625 2
HOLDER 13091 13091-1562 1
PLATE,CHAIN GUIDE 13169 13169-1748 1
ROTOR,PULSING 21007 21007-1277 1
COIL-IGNITION,#2&#3 21121 21121-1268 1
COIL-IGNITION 21121A 21121-1300 1
CAP-ASSY-PLUG 21160 21160-1098 4
COIL-PULSING 59026 59026-1132 1
NUT,FLANGED,6MM 92015 92015-1193 4
NUT 92015A 92015-1700 2
PLUG-SPARK,U27ETR(ND) 92070 4 (LOCAL PROCUREMENT ITEM)
PLUG-SPARK,U24ETR(ND) 92070A 4 (OPTION)
PLUG-SPARK,CR9EK(NGK) 92070B 92070-1264 4
PLUG-SPARK,CR8EK(NGK) 92070C 92070-1265 4 (OPTION)
BOLT,SOCKET,5X14 92150 92150-1180 2
BOLT,6X12 92150A 92150-1841 2
BOLT,M8X25 92153 92153-1191 1
DAMPER 92160 92160-1091 1
WASHER,ROTOR 92200 92200-1173 1
IGNITER 21119 21119-0029 1 CA
IGNITER 21119A 21119-1585 1 CNUS
