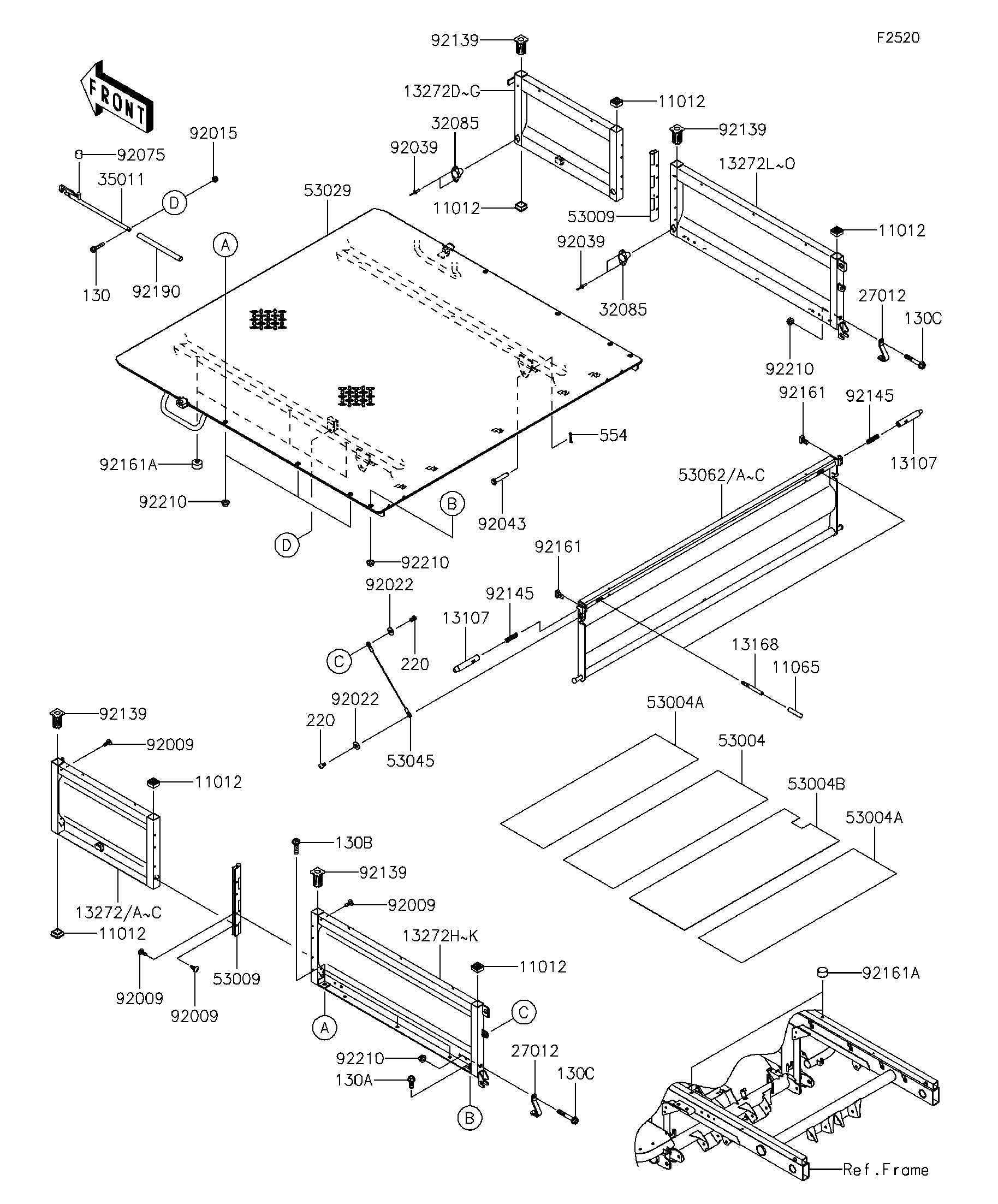

2014 MULE™ 4010 TRANS4x4® - Carrier(s)

DOWNLOAD PDF
SELECT A NEW PART
11012
11012
11012
11012
11012
11012
11012
11012
11012
11012
11012
11012
11065
11065
13107
13107
13107
13107
13168
13168
13272
13272
13272B
13272B
13272D
13272D
13272F
13272F
13272H
13272H
13272J
13272J
13272L
13272L
13272N
13272N
27012
27012
27012
27012
32085
32085
32085
32085
35011
35011
53004
53004
53004A
53004A
53004A
53004A
53004B
53004B
53009
53009
53009
53009
53029
53029
53045
53045
53062
53062
53062B
53062B
92009
92009
92009
92009
92009
92009
92009
92009
92015
92015
92022
92022
92022
92022
92039
92039
92039
92039
92043
92043
92075
92075
92139
92139
92139
92139
92139
92139
92139
92139
92145
92145
92145
92145
92161
92161
92161
92161
92161A
92161A
92161A
92161A
92190
92190
92210
92210
92210
92210
92210
92210
92210
92210
130
130
130A
130A
130B
130B
130C
130C
130C
130C
220
220
220
220
554
554
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP 11012 11012-1784 6
CAP 11065 11065-0126 2
SHAFT 13107 13107-0082 2
LEVER 13168 13168-0090 2
PLATE,SIDE,FR,LH,BLACK 13272 13272-0501-10 1
PLATE,SIDE,FR,LH,W.GREEN 13272B 13272-0501-398 1
PLATE,SIDE,FR,RH,BLACK 13272D 13272-0502-10 1
PLATE,SIDE,FR,RH,W.GREEN 13272F 13272-0502-398 1
PLATE,SIDE,RR,LH,BLACK 13272H 13272-1233-10 1
PLATE,SIDE,RR,LH,W.GREEN 13272J 13272-1233-398 1
PLATE,SIDE,RR,RH,BLACK 13272L 13272-1234-10 1
PLATE,SIDE,RR,RH,W.GREEN 13272N 13272-1234-398 1
HOOK,TAIL GATE 27012 27012-0022 2
STOPPER 32085 32085-7501 4
STAY,CARRIER STOPPER 35011 35011-1648 1
MAT,CARRIER 53004 53004-0031 1
MAT,CARRIER 53004A 53004-0032 2
MAT 53004B 53004-7501 1
HINGE,CARRIER 53009 53009-7501 2
CARRIER,BASE PLATE,BLACK 53029 53029-0313-10 1
HOOK-ASSY,TAIL GATE 53045 53045-0004 2
GATE-TAIL,BLACK 53062 53062-7503-10 1
GATE-TAIL,W.GREEN 53062B 53062-7503-398 1
SCREW,TAPPING,6X16 92009 92009-1166 20
NUT,LOCK,FLANGED,6MM 92015 92015-1675 1
WASHER,7X18X1.2 92022 92022-1545 4
RIVET 92039 92039-1150 8
PIN,12X65 92043 92043-1428 2
DAMPER 92075 92075-1817 1
BUSHING,REAR SCREEN 92139 92139-7501 4
SPRING,TENSIONER 92145 92145-1215 2
DAMPER 92161 92161-0258 2
DAMPER 92161A 92161-7510 8
TUBE,13X16X200 92190 92190-1401 1
NUT,FLANGED,8MM 92210 92210-0555 10
BOLT-FLANGED,6X30 130 130BA0630 1
BOLT-FLANGED,8X20 130A 130BB0820 2
BOLT-FLANGED,8X30 130B 130BB0830 6
BOLT-FLANGED,8X50 130C 130BB0850 2
SCREW-PAN-CROSS,6X10 220 220AB0610 4
PIN-SNAP,12MM 554 554DA1200 2
