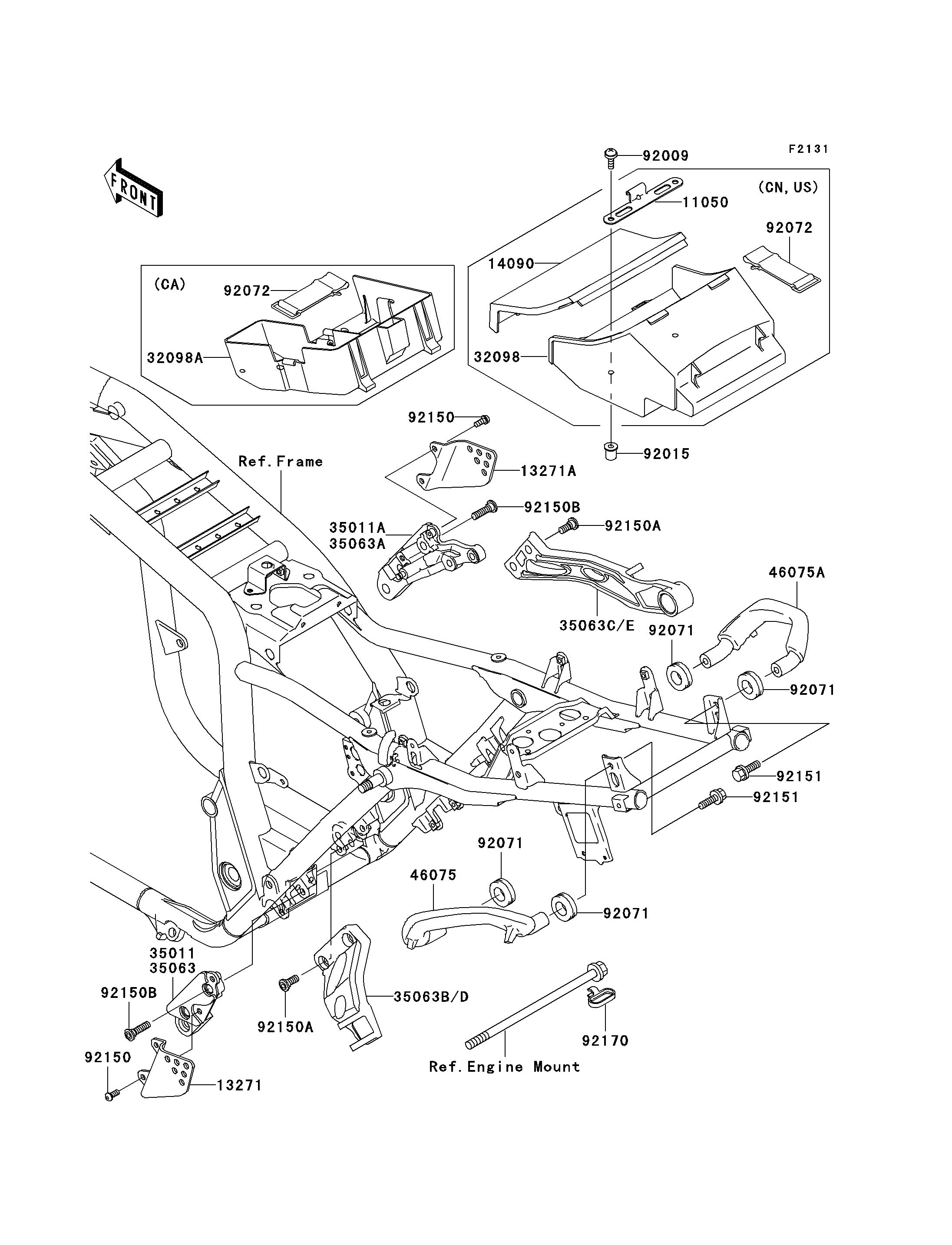

2004 ZRX1200R - Frame Fittings

DOWNLOAD PDF
SELECT A NEW PART
13271
13271A
35011
35011A
35063D
35063E
46075
46075A
92009
92015
92071
92071
92071
92071
92072
92072
92150
92150
92150A
92150A
92150B
92150B
92151
92151
92170
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PLATE,STAY,LH 13271 13271-1698 1
PLATE,STAY,RH 13271A 13271-1699 1
STAY,FR,LH 35011 35011-1819 1
STAY,FR,RH 35011A 35011-1820 1
STAY,RR,LH 35063D 35063-1187 1
STAY,RR,RH 35063E 35063-1188 1
GRIP,RR,LH,F.BLACK 46075 46075-1141-21 1
GRIP,RR,RH,F.BLACK 46075A 46075-1142-21 1
SCREW,6X18 92009 92009-1663 2
NUT 92015 92015-1700 2
GROMMET,AIR FILTER 92071 92071-1028 4
BAND,TOOL 92072 92072-1417 1
BOLT,SOCKET,6X14 92150 92150-1836 4
BOLT,SOCKET,8X20 92150A 92150-1839 4
BOLT,SOCKET,8X30 92150B 92150-1843 4
BOLT,FLANGED,8X25 92151 92151-1204 4
CLAMP,DRAIN 92170 92170-1777 1
BRACKET,TOOL BAND 11050 11050-1115 1 CNUS
COVER,TOOL CASE 14090 14090-1794 1 CNUS
CASE-TOOL 32098 32098-1116 1 CNUS
CASE-TOOL 32098A 32098-1136 1 CA
