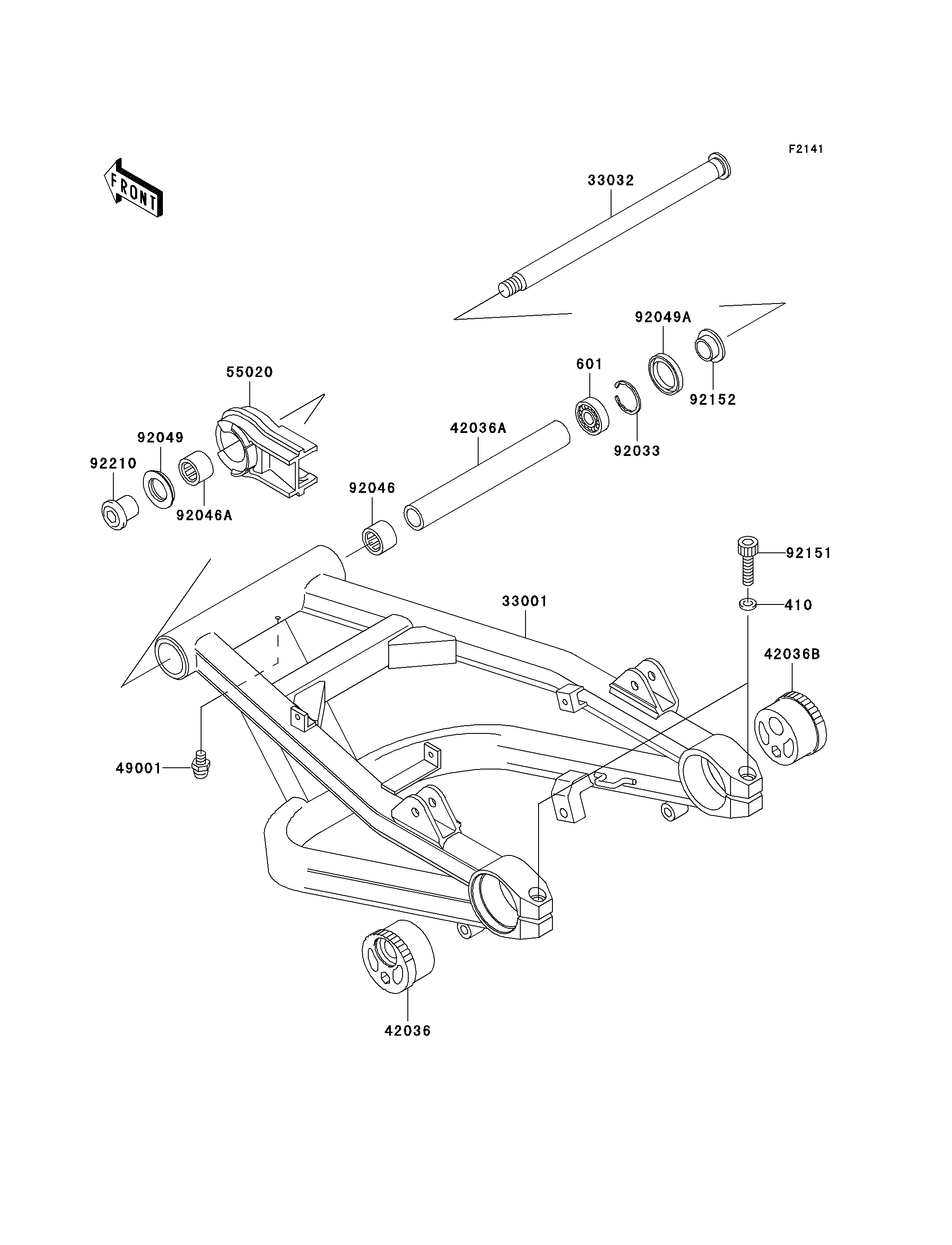

Parts Diagrams |
410
601
33001
33032
42036
42036A
42036B
49001
55020
92033
92046
92046A
92049
92049A
92151
92152
92210
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
W-PLAIN-S | 410 | 410E1000 | 2 | ||
BEARING-BALL,#6004 | 601 | 601A6004 | 1 | ||
ARM-COMP-SWING | 33001 | 33001-0026 | 1 | ||
SHAFT-SWING ARM | 33032 | 33032-1182 | 1 | ||
SLEEVE,REAR AXLE,LH,A.GOLD | 42036 | 42036-1153-ES | 1 | ||
SLEEVE,SWING ARM,L=213.5 | 42036A | 42036-1259 | 1 | ||
SLEEVE,REAR AXLE,RH,A.GOLD | 42036B | 42036-1265-ES | 1 | ||
NIPPLE-GREASE | 49001 | 49001-0001 | 1 | ||
GUARD,CHAIN | 55020 | 55020-1742 | 1 | ||
RING-SNAP,42MM | 92033 | 92033-1041 | 1 | ||
BEARING-NEEDLE,BM2817 | 92046 | 92046-1111 | 1 | ||
BEARING-NEEDLE,BM2824 | 92046A | 92046-1202 | 1 | ||
SEAL-OIL | 92049 | 92049-1181 | 1 | ||
SEAL-OIL,MHSA25 42 6 | 92049A | 92049-1314 | 1 | ||
BOLT,SOCKET,10X40 | 92151 | 92151-1899 | 2 | ||
COLLAR,SWING ARM,L=12.5 | 92152 | 92152-1234 | 1 | ||
NUT,PIVOT,16MM | 92210 | 92210-1077 | 1 |
W-PLAIN-S | |
REF # | 410 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BEARING-BALL,#6004 | |
REF # | 601 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ARM-COMP-SWING | |
REF # | 33001 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SHAFT-SWING ARM | |
REF # | 33032 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SLEEVE,REAR AXLE,LH,A.GOLD | |
REF # | 42036 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SLEEVE,SWING ARM,L=213.5 | |
REF # | 42036A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SLEEVE,REAR AXLE,RH,A.GOLD | |
REF # | 42036B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NIPPLE-GREASE | |
REF # | 49001 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GUARD,CHAIN | |
REF # | 55020 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-SNAP,42MM | |
REF # | 92033 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BEARING-NEEDLE,BM2817 | |
REF # | 92046 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BEARING-NEEDLE,BM2824 | |
REF # | 92046A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SEAL-OIL | |
REF # | 92049 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SEAL-OIL,MHSA25 42 6 | |
REF # | 92049A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,SOCKET,10X40 | |
REF # | 92151 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
COLLAR,SWING ARM,L=12.5 | |
REF # | 92152 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,PIVOT,16MM | |
REF # | 92210 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
