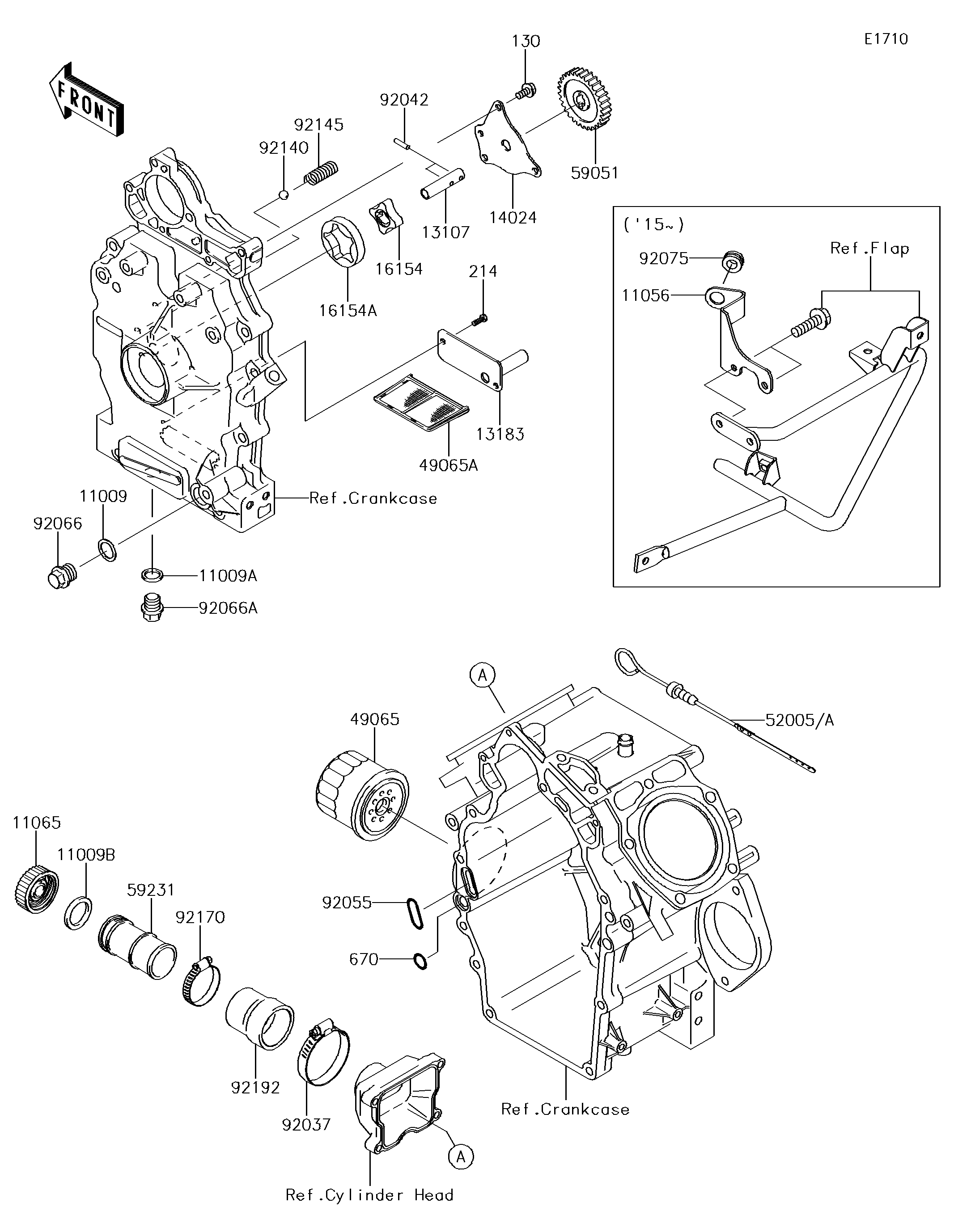

2014 MULE™ 4010 TRANS4x4® CAMO - Oil Pump/Oil Filter

DOWNLOAD PDF
SELECT A NEW PART
11009
11009A
11009B
11065
13107
13183
14024
16154
16154A
49065
49065A
52005A
59051
59231
92037
92042
92055
92066
92066A
92140
92145
92170
92192
130
214
670
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,16.2X22X1 11009 11009-1467 1
GASKET 11009A 11009-2175 1
GASKET,OIL GAUGE 11009B 11009-2346 1
CAP 11065 11065-1167 1
SHAFT,OIL PUMP 13107 13107-2296 1
PLATE 13183 13183-2419 1
COVER,OIL PUMP 14024 14024-2113 1
ROTOR-PUMP,IN 16154 16154-2053 1
ROTOR-PUMP,OUT 16154A 16154-2054 1
FILTER-OIL 49065 49065-2071 1
FILTER-OIL 49065A 49065-2072 1
GAUGE 52005A 52005-2149 1
GEAR-SPUR 59051 59051-2114 1
FILLER 59231 59231-7501 1
CLAMP 92037 92037-506 1
PIN,DOWEL,4X15.8 92042 92042-014 2
RING-O 92055 92055-2086 1
PLUG,16X11.5 92066 92066-2251 1
PLUG,14X12 92066A 92066-2253 1
BALL,STEEL,13/32 92140 92140-7003 1
SPRING 92145 92145-2132 1
CLAMP 92170 92170-1036 1
TUBE 92192 92192-7502 1
BOLT-FLANGED,6X12 130 130BA0612 3
SCREW-PAN+-,5X12 214 214AA0512 2
O RING,11MM 670 670B2011 1
