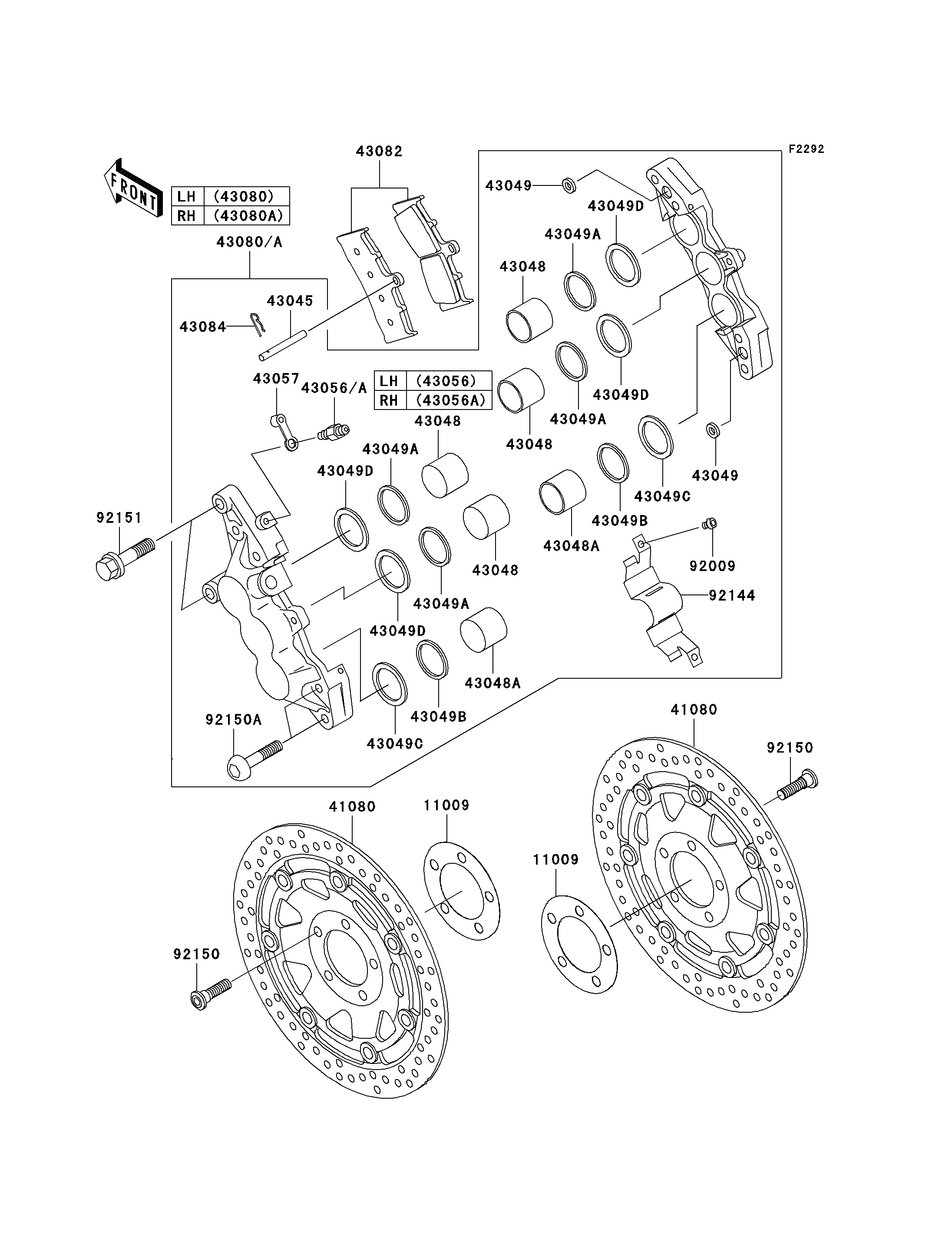

2004 ZRX1200R - Front Brake(A4)

DOWNLOAD PDF
SELECT A NEW PART
11009
11009
41080
41080
43045
43048
43048
43048
43048
43048A
43048A
43049
43049
43049A
43049A
43049A
43049A
43049B
43049B
43049C
43049C
43049D
43049D
43049D
43049D
43056
43056A
43057
43080
43080A
43082
43084
92009
92144
92150
92150
92150A
92151
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,DISC PLATE 11009 11009-1754 2
DISC,FR,HOUSING GOLD+DISC SIL 41080 41080-0066-488 2
SHAFT-CALIPER 43045 43045-007 2
PISTON-CALIPER 43048 43048-1078 8
PISTON-CALIPER 43048A 43048-1079 4
PACKING,SEAL,6.5X11.5X2.2 43049 43049-1004 4
PACKING,PISTON 43049A 43049-1055 8
PACKING,PISTON 43049B 43049-1059 4
PACKING,PISTON SEAL 43049C 43049-1090 4
PACKING,PISTON SEAL 43049D 43049-1096 8
BREATHER 43056 43056-003 1
BREATHER-BRAKE 43056A 43056-1056 1
CAP-BREATHER 43057 43057-003 2
CALIPER-SUB-ASSY,FR,LH,BLACK 43080 43080-5026-DJ 1
CALIPER-SUB-ASSY,FR,RH,BLACK 43080A 43080-5027-DJ 1
PAD-ASSY-BRAKE 43082 43082-1272 2
CLAMP,PAD 43084 43084-003 2
BOLT,SOCKET,4X6 92009 92009-1758 4
SPRING 92144 92144-1903 2
BOLT,SOCKET,8X30 92150 92150-1771 10
BOLT,SOCKET,8X40 92150A 92150-1973 8
BOLT,FLANGED,10X38 92151 92151-1288 4
