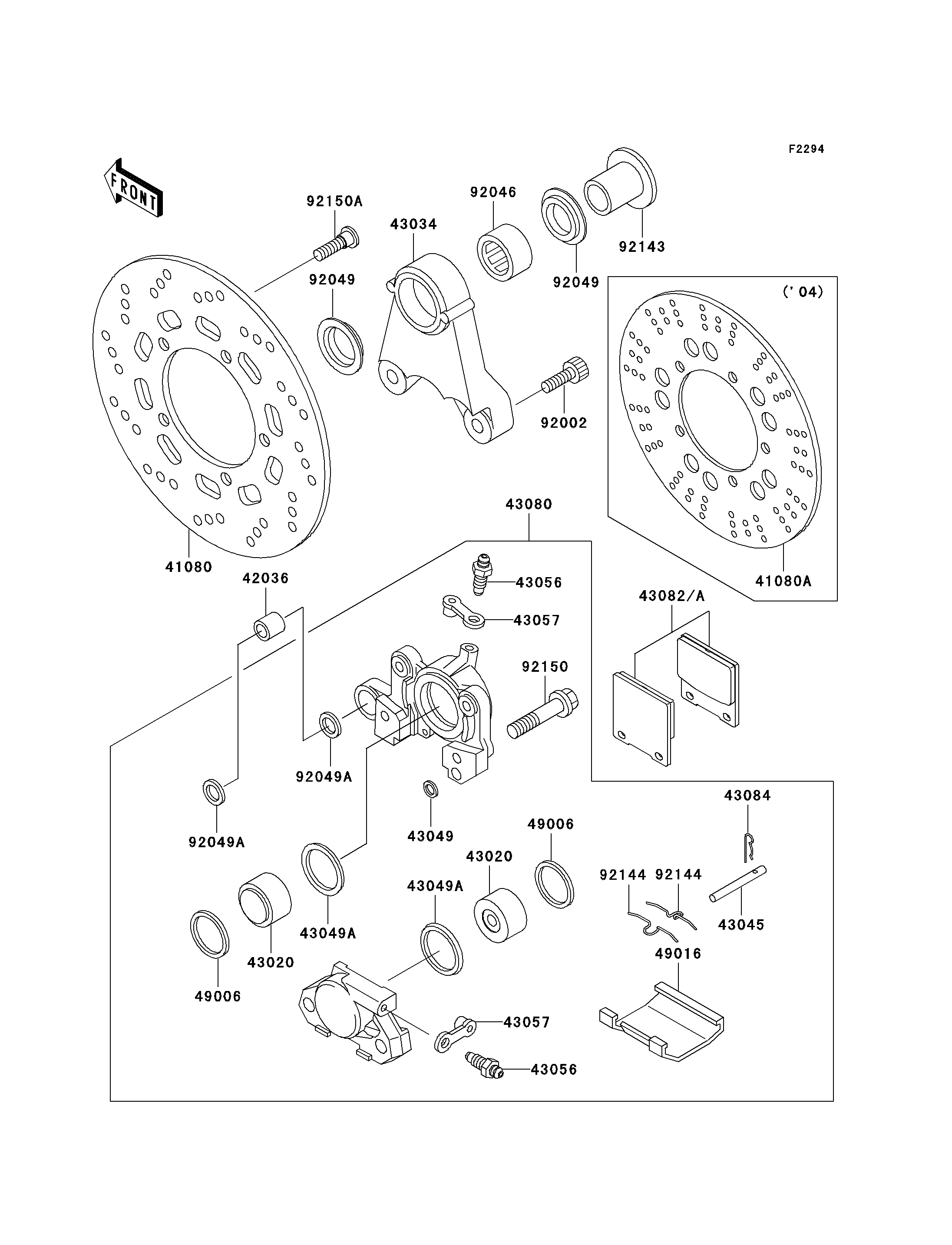

Parts Diagrams |
41080A
42036
43020
43020
43034
43045
43049
43049A
43049A
43056
43056
43057
43057
43080
43082A
43084
49006
49006
49016
92002
92046
92049
92049
92049A
92049A
92143
92144
92144
92150
92150A
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
DISC,RR,P.GOLD | 41080A | 41080-1422-487 | 1 | ||
SLEEVE,8.1X14X17.6 | 42036 | 42036-1260 | 1 | ||
PISTON-COMP-BRAKE | 43020 | 43020-1107 | 2 | ||
HOLDER-BRAKE,REAR CALIPER | 43034 | 43034-1124 | 1 | ||
SHAFT-CALIPER | 43045 | 43045-007 | 2 | ||
PACKING,SEAL,6.5X11.5X2.2 | 43049 | 43049-1004 | 1 | ||
PACKING,PISTON SEAL | 43049A | 43049-1097 | 2 | ||
BREATHER-BRAKE | 43056 | 43056-1054 | 2 | ||
CAP-BREATHER | 43057 | 43057-003 | 2 | ||
CALIPER-SUB-ASSY,RR,BLACK | 43080 | 43080-5083-DJ | 1 | ||
PAD-ASSY-BRAKE | 43082A | 43082-1257 | 1 | ||
CLAMP,PAD | 43084 | 43084-003 | 2 | ||
BOOT,PISTON SEAL | 49006 | 49006-1212 | 2 | ||
COVER-SEAL | 49016 | 49016-1145 | 1 | ||
BOLT,SOCKET,8X25 | 92002 | 92002-1442 | 2 | ||
BEARING-NEEDLE,BM2817 | 92046 | 92046-1111 | 1 | ||
SEAL-OIL | 92049 | 92049-1181 | 2 | ||
SEAL-OIL | 92049A | 92049-1339 | 2 | ||
COLLAR,L=35 | 92143 | 92143-1043 | 1 | ||
SPRING,PAD | 92144 | 92144-1401 | 2 | ||
BOLT,FLANGED,10X45 | 92150 | 92150-1273 | 2 | ||
BOLT,SOCKET,8X30 | 92150A | 92150-1771 | 5 |
DISC,RR,P.GOLD | |
REF # | 41080A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SLEEVE,8.1X14X17.6 | |
REF # | 42036 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PISTON-COMP-BRAKE | |
REF # | 43020 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
HOLDER-BRAKE,REAR CALIPER | |
REF # | 43034 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SHAFT-CALIPER | |
REF # | 43045 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
PACKING,SEAL,6.5X11.5X2.2 | |
REF # | 43049 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PACKING,PISTON SEAL | |
REF # | 43049A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BREATHER-BRAKE | |
REF # | 43056 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CAP-BREATHER | |
REF # | 43057 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CALIPER-SUB-ASSY,RR,BLACK | |
REF # | 43080 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PAD-ASSY-BRAKE | |
REF # | 43082A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP,PAD | |
REF # | 43084 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOOT,PISTON SEAL | |
REF # | 49006 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
COVER-SEAL | |
REF # | 49016 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,SOCKET,8X25 | |
REF # | 92002 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BEARING-NEEDLE,BM2817 | |
REF # | 92046 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SEAL-OIL | |
REF # | 92049 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SEAL-OIL | |
REF # | 92049A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
COLLAR,L=35 | |
REF # | 92143 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING,PAD | |
REF # | 92144 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,FLANGED,10X45 | |
REF # | 92150 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,SOCKET,8X30 | |
REF # | 92150A |
---|---|
PART NUMBER | |
QUANTITY | 5 |
DESTINATION | |
REMARKS |
