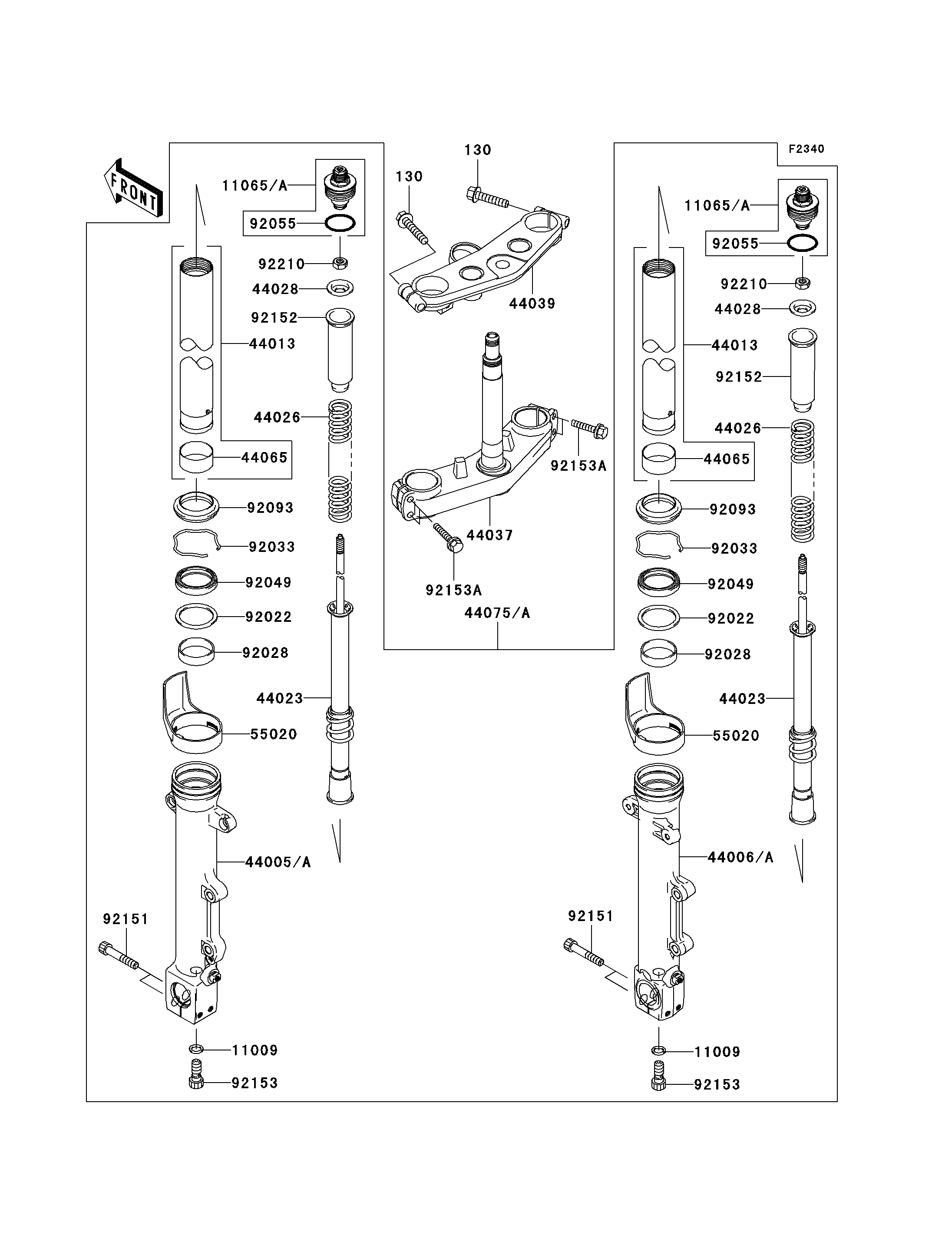

2004 ZRX1200R - Front Fork

DOWNLOAD PDF
SELECT A NEW PART
130
130
11009
11009
11065
11065
44005
44006
44013
44013
44023
44023
44026
44026
44028
44028
44037
44039
44065
44065
44075
55020
55020
92022
92022
92028
92028
92033
92033
92049
92049
92055
92055
92093
92093
92151
92151
92152
92152
92153
92153
92153A
92153A
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED 130 130J1045 2
GASKET,PIPE-COMP-SUSP 11009 11009-1325 2
CAP 11065 11065-0076 2
PIPE-LEFT FORK OUTER 44005 44005-0026 1
PIPE-RIGHT FORK OUTER 44006 44006-0026 1
PIPE-FORK INNER 44013 44013-0021 2
CYLINDER-SET-FORK 44023 44023-0024 2
SPRING-FRONT FORK 44026 44026-0049 2
GUIDE-FORK SPRING 44028 44028-0002 2
HOLDER-FORK UNDER 44037 44037-0018 1
HOLDER-FORK UPPER 44039 44039-1318 1
BUSHING-FRONT FORK,INNER PIPE 44065 44065-1142 2
DAMPER-SET-FORK 44075 44075-0050 1
GUARD,FORK 55020 55020-1691 2
WASHER 92022 92022-1299 2
BUSHING 92028 92028-1784 2
RING-SNAP 92033 92033-1077 2
SEAL-OIL,FORK OUTER TUBE 92049 92049-1496 2
RING-O 92055 92055-0062 2
SEAL,FORK OUTER TUBE 92093 92093-1480 2
BOLT,SOCKET,8X45 92151 92151-1991 4
COLLAR,FORK 92152 92152-0207 2
BOLT,SOCKET,10X25 92153 92153-0548 2
BOLT,FLANGED,8X40 92153A 92153-0739 4
NUT 92210 92210-0158 2
