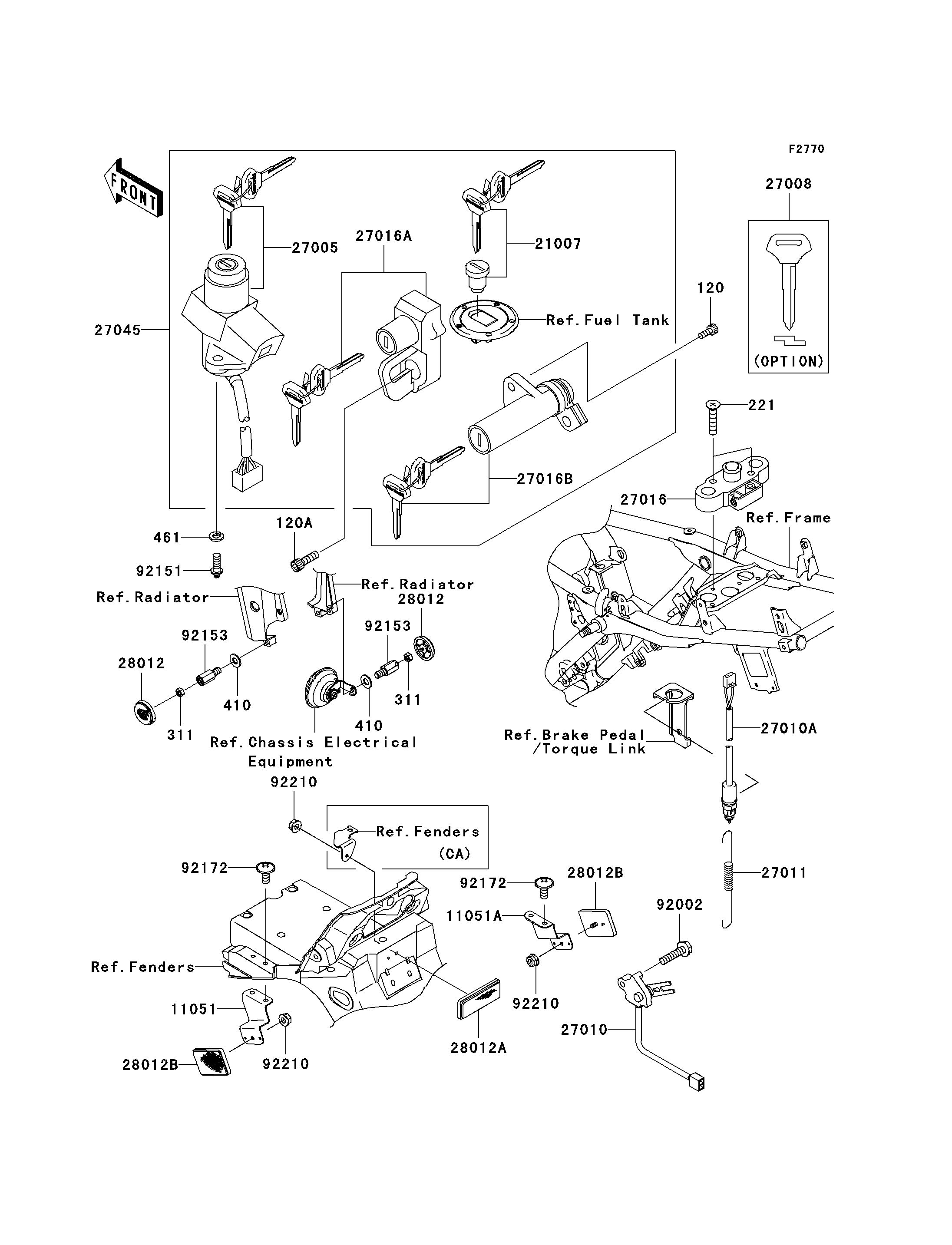

2004 ZRX1200R - Ignition Switch/Locks/Reflectors
120
120A
221
311
311
410
410
461
11051
11051A
21007
27005
27008
27010
27010A
27011
27016
27016A
27016B
27045
28012
28012
28012A
28012B
28012B
92002
92151
92153
92153
92172
92172
92210
92210
92210
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-SOCKET | 120 | 120S0512 | 2 | ||
BOLT-SOCKET | 120A | 120S0620 | 1 | ||
SCREW-CSK-CROSS | 221 | 221F0630 | 2 | ||
NUT-HEX | 311 | 311L0500 | 2 | ||
WASHER-PLAIN-SMALL,8MM,BLACK | 410 | 410F0800 | 2 | ||
WASHER-SPRING | 461 | 461L0600 | 2 | ||
BRACKET,REFLECTOR,RR,SIDE,LH | 11051 | 11051-1131 | 1 | ||
BRACKET,REFLECTOR,RR,SIDE,RH | 11051A | 11051-1132 | 1 | ||
ROTOR,LOCK,TANK CAP | 21007 | 21007-5042 | 1 | ||
SWITCH-ASSY-IGNITION | 27005 | 27005-5120 | 1 | ||
KEY-LOCK,BLANK | 27008 | 27008-1189 | 1 | (OPTION) | |
SWITCH,SIDE STAND | 27010 | 27010-1465 | 1 | ||
SWITCH,REAR BRAKE | 27010A | 27010-1479 | 1 | ||
SPRING,BRAKE LAMP SWITCH | 27011 | 27011-017 | 1 | ||
LOCK-ASSY,SEAT STRIKER | 27016 | 27016-1098 | 1 | ||
LOCK-ASSY,HELMET | 27016A | 27016-5249 | 1 | ||
LOCK-ASSY,SEAT | 27016B | 27016-5250 | 1 | ||
SWITCH-ASSY | 27045 | 27045-5142 | 1 | ||
REFLECTOR-REFLEX,FR | 28012 | 28012-016 | 2 | ||
REFLECTOR-REFLEX | 28012A | 28012-1077 | 1 | ||
REFLECTOR-REFLEX | 28012B | 28012-1088 | 2 | ||
BOLT,FLANGED,6X25 | 92002 | 92002-1582 | 1 | ||
BOLT,TORX,6X16 | 92151 | 92151-1911 | 2 | ||
BOLT,8MM | 92153 | 92153-0788 | 2 | ||
SCREW,6X14 | 92172 | 92172-0004 | 4 | ||
NUT,FLANGED,5MM | 92210 | 92210-0007 | 3 |
