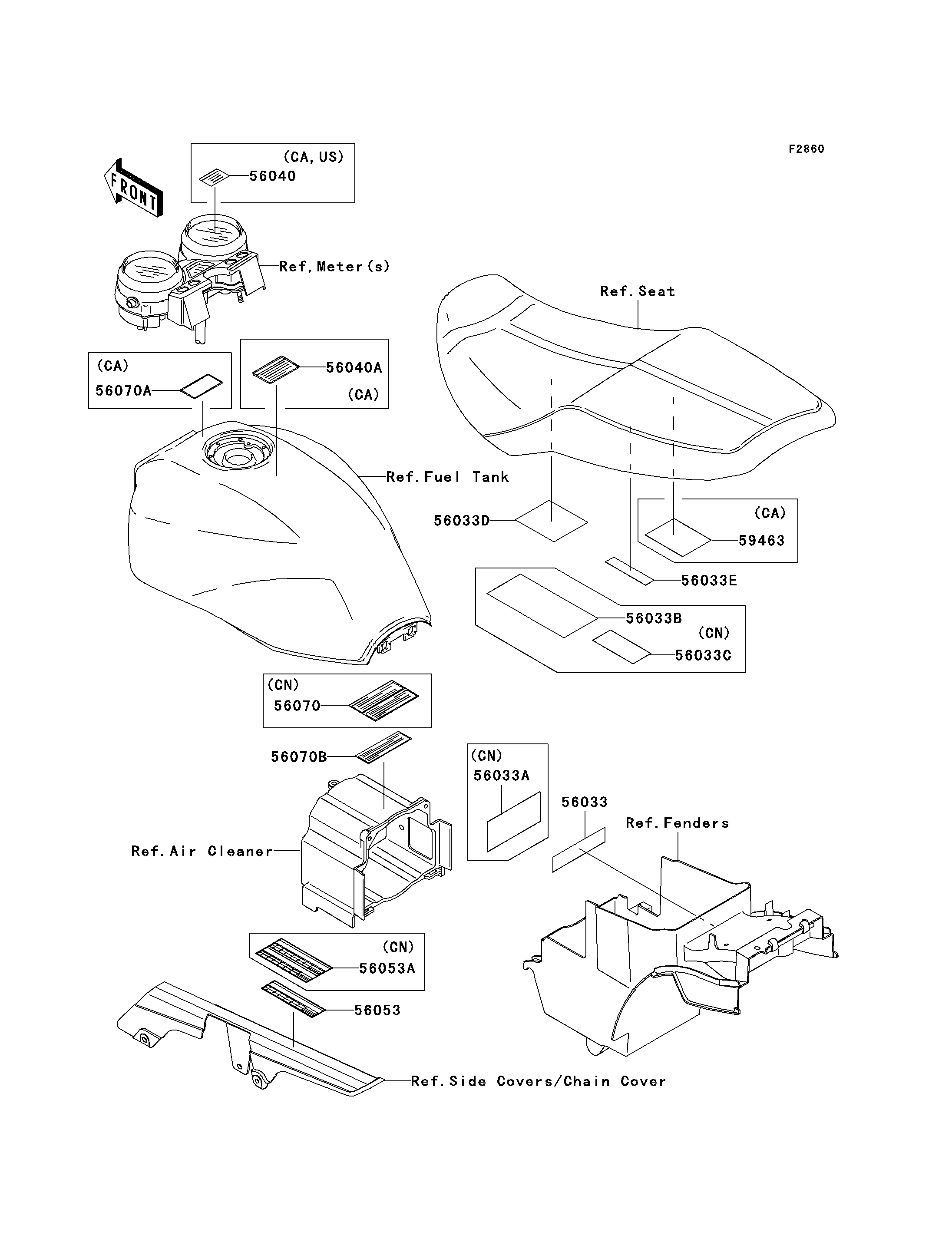

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LABEL-MANUAL,CHAIN 56033 56033-0037 1 CAUS
LABEL-MANUAL,CHAIN 56033A 56033-0038 1 CN
LABEL-MANUAL,DAILY SAFETY 56033B 56033-1113 1 CN
LABEL-MANUAL,OIL&OIL FILTER 56033C 56033-1271 1 CN
LABEL-MANUAL,DAILY SAFETY 56033D 56033-1356 1 CAUS
LABEL-MANUAL,OIL&OIL FILTER 56033E 56033-1358 1 CAUS
LABEL-WARNING,BREAK IN CAUTION 56040 56040-1007 1 CAUS
LABEL-WARNING,EVAPO 56040A 56040-1121 1 CA
LABEL-SPECIFICATION,TIRE&LOAD 56053 56053-1067 1 CAUS
LABEL-SPECIFICATION,TIRE&LOAD 56053A 56053-1104 1 CN
LABEL-WARNING,STORAGE 56070 56070-1139 1 CN
LABEL,UNLEADED PETROL ONLY 56070A 56070-1143 1 CA
LABEL-WARNING,STORAGE CASE 56070B 56070-1301 1 CAUS
LABEL-CERTIFICATION,EVAPO ROUT 59463 59463-1723 1 CA
