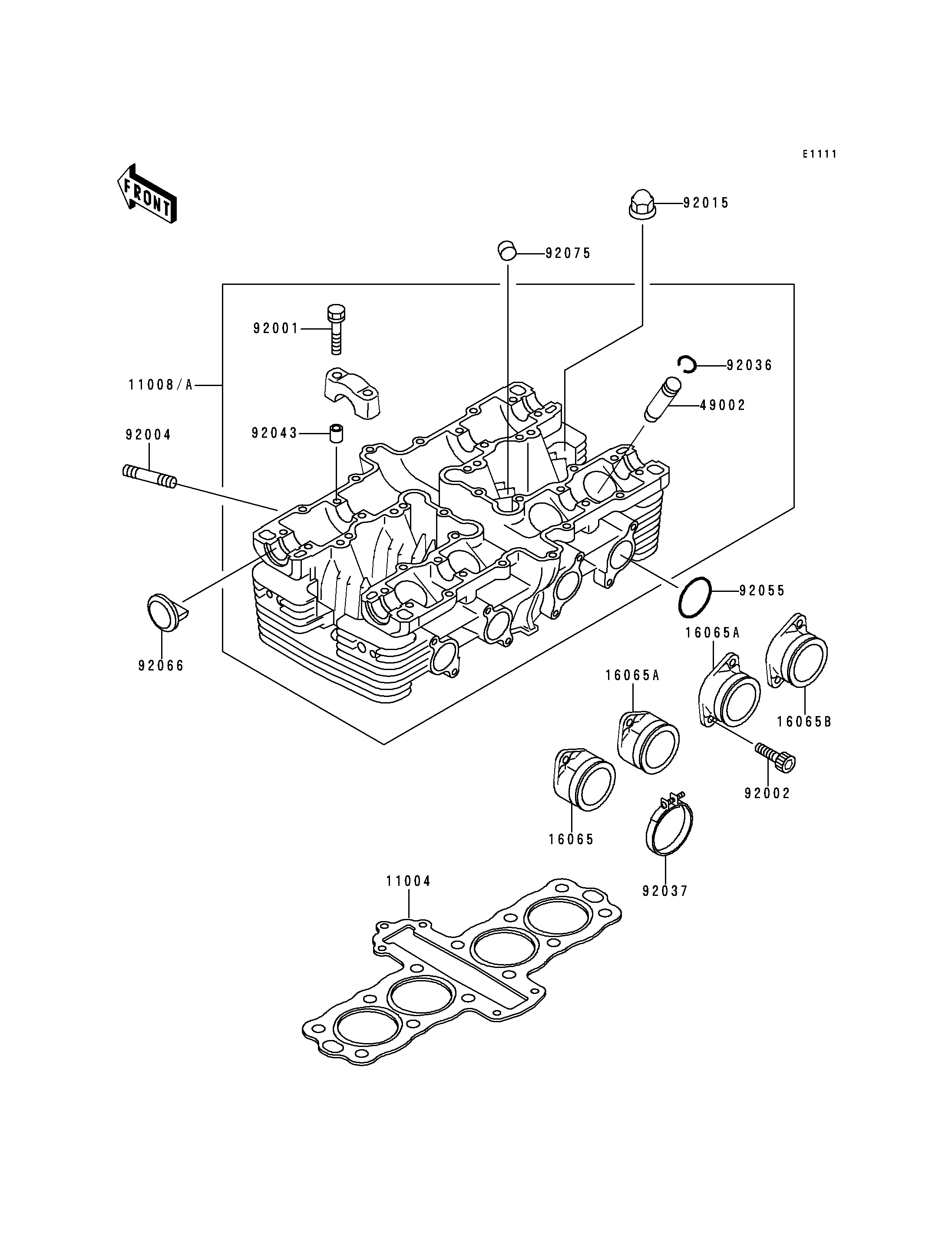

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET-HEAD 11004 11004-1212 1
HEAD-COMP-CYLINDER 11008 11008-1225 1
HOLDER-CARBURETOR,#1 16065 16065-1234 1
HOLDER-CARBURETOR,#2&#3 16065A 16065-1235 2
HOLDER-CARBURETOR,#4 16065B 16065-1236 1
GUIDE-VALVE 49002 49002-1005 8
BOLT,FLANGED,6X38 92001 92001-1105 16
BOLT,6X16 92002 92002-1143 8
STUD,6X27 92004 92004-1162 8
NUT,CAP,8MM,BLACK 92015 92015-1174 12
RING-SNAP 92036 92036-023 8
CLAMP 92037 92037-1326 4
PIN,6.2X8X14 92043 92043-1263 16
RING-O,32MM 92055 92055-1256 4
PLUG,CAMSHAFT 92066 92066-1329 4
DAMPER 92075 92075-182 4
