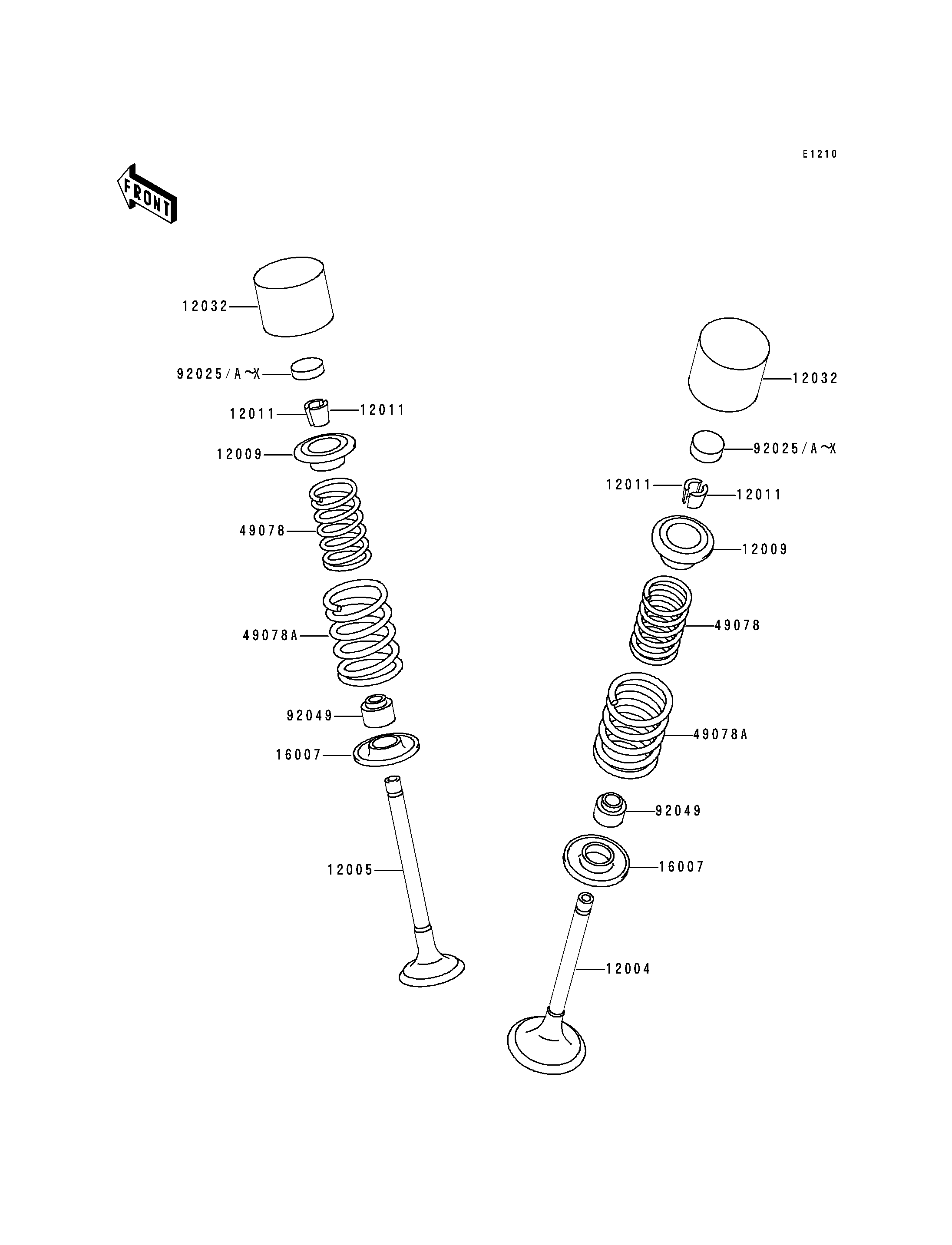

1992 Zephyr - Valve

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
VALVE-INTAKE 12004 12004-1016 4
VALVE-EXHAUST 12005 12005-1013 4
RETAINER-VALVE SPRING 12009 12009-1002 8
COLLET 12011 12011-1003 16
TAPPET 12032 12032-1001 8
SEAT-SPRING,VALVE 16007 16007-1024 8
SPRING-ENGINE VALVE,INNER 49078 49078-1001 8
SPRING-ENGINE VALVE,OUTER 49078A 49078-1002 8
SHIM,T=2.00 92025 92025-1090 AR
SHIM,T=2.05 92025A 92025-1091 AR
SHIM,T=2.10 92025B 92025-1092 AR
SHIM,T=2.15 92025C 92025-1093 AR
SHIM,T=2.20 92025D 92025-1094 AR
SHIM,T=2.25 92025E 92025-1095 AR
SHIM,T=2.30 92025F 92025-1096 AR
SHIM,T=2.35 92025G 92025-1097 AR
SHIM,T=2.40 92025H 92025-1098 AR
SHIM,T=2.45 92025I 92025-1099 AR
SHIM,T=2.50 92025J 92025-1100 AR
SHIM,T=2.55 92025K 92025-1101 AR
SHIM,T=2.60 92025L 92025-1102 AR
SHIM,T=2.65 92025M 92025-1103 AR
SHIM,T=2.70 92025N 92025-1104 AR
SHIM,T=2.75 92025O 92025-1105 AR
SHIM,T=2.80 92025P 92025-1106 AR
SHIM,T=2.85 92025Q 92025-1107 AR
SHIM,T=2.90 92025R 92025-1108 AR
SHIM,T=2.95 92025S 92025-1109 AR
SHIM,T=3.00 92025T 92025-1110 AR
SHIM,T=3.05 92025U 92025-1111 AR
SHIM,T=3.10 92025V 92025-1112 AR
SHIM,T=3.15 92025W 92025-1113 AR
SHIM,T=3.20 92025X 92025-1114 AR
SEAL-OIL,VALVE STEM 92049 92049-1153 8
