Parts Diagrams |

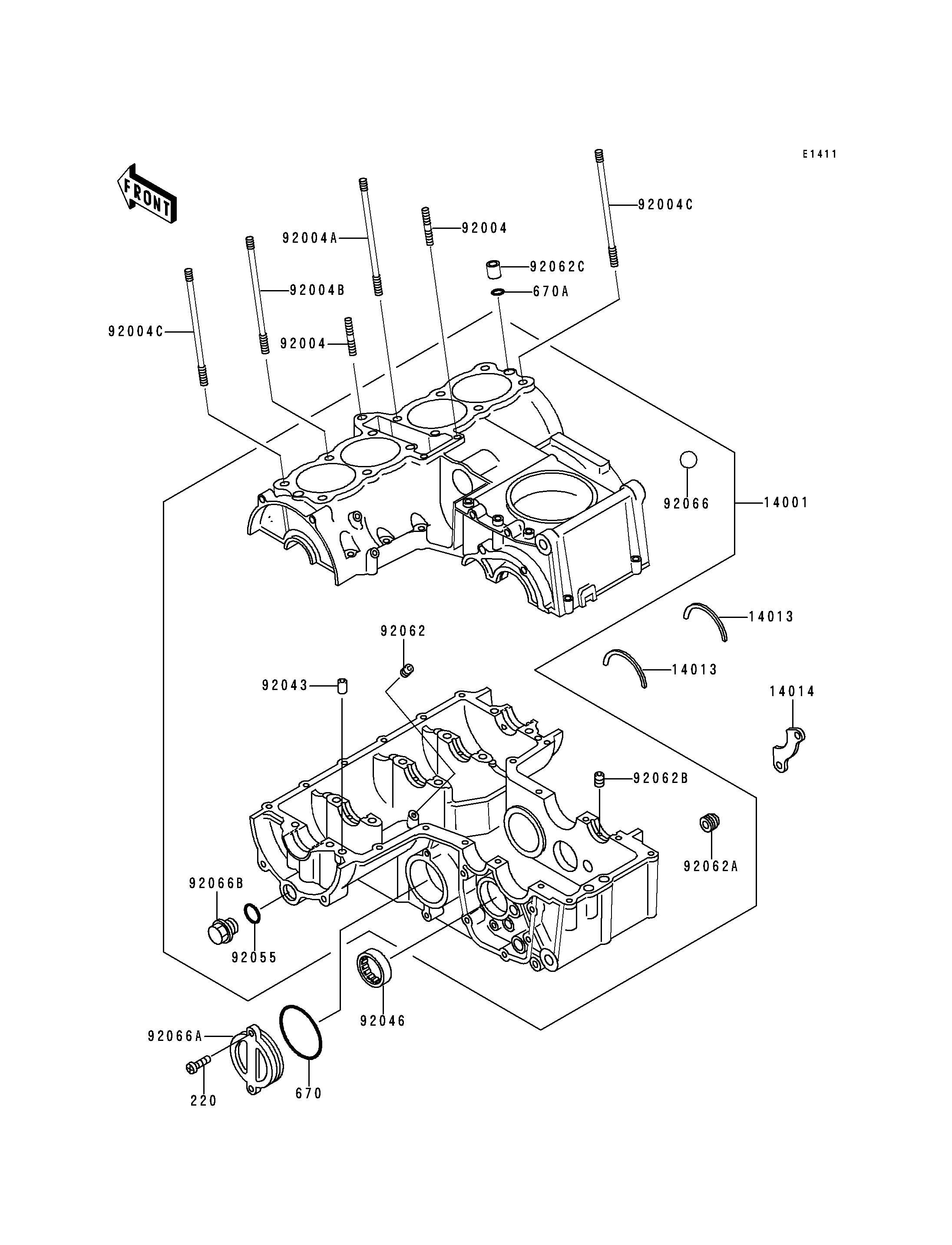

ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
SCREW-PAN-CROS,6X20,WHITE | 220 | 220B0620 | 2 | ||
O RING,46MM | 670 | 670B3046 | 1 | ||
O RING | 670A | 670D2010 | 2 | ||
SET-CRANKCASE | 14001 | 14001-5270 | 1 | ||
RING-POSITION | 14013 | 14013-004 | 2 | ||
PLATE-POSITION | 14014 | 14014-1006 | 1 | ||
STUD,6X22 | 92004 | 92004-059 | 3 | ||
STUD,8X146 | 92004A | 92004-1193 | 4 | ||
STUD,8X108.5 | 92004B | 92004-1194 | 4 | ||
STUD,8X128.5 | 92004C | 92004-1195 | 4 | ||
PIN,8.2X10X14 | 92043 | 92043-1264 | 2 | ||
BEARING-NEEDLE,37BTM4312 | 92046 | 92046-051 | 1 | ||
RING-O | 92055 | 92055-1146 | 2 | ||
NOZZLE,BLACK | 92062 | 92062-011 | 1 | ||
NOZZLE | 92062A | 92062-014 | 1 | ||
NOZZLE,SILVER | 92062B | 92062-015 | 1 | ||
NOZZLE | 92062C | 92062-016 | 2 | ||
PLUG,RUBBER BALL,6.7 | 92066 | 92066-057 | 1 | ||
PLUG,SECONDARY SHAFT,52X19 | 92066A | 92066-1019 | 1 | ||
PLUG,MAIN GALLERY,18X9,BLACK | 92066B | 92066-1096 | 2 |
SCREW-PAN-CROS,6X20,WHITE | |
REF # | 220 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
O RING,46MM | |
REF # | 670 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
O RING | |
REF # | 670A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SET-CRANKCASE | |
REF # | 14001 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-POSITION | |
REF # | 14013 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
PLATE-POSITION | |
REF # | 14014 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
STUD,6X22 | |
REF # | 92004 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
STUD,8X146 | |
REF # | 92004A |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
STUD,8X108.5 | |
REF # | 92004B |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
STUD,8X128.5 | |
REF # | 92004C |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
PIN,8.2X10X14 | |
REF # | 92043 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BEARING-NEEDLE,37BTM4312 | |
REF # | 92046 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-O | |
REF # | 92055 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NOZZLE,BLACK | |
REF # | 92062 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NOZZLE | |
REF # | 92062A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NOZZLE,SILVER | |
REF # | 92062B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NOZZLE | |
REF # | 92062C |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
PLUG,RUBBER BALL,6.7 | |
REF # | 92066 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLUG,SECONDARY SHAFT,52X19 | |
REF # | 92066A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLUG,MAIN GALLERY,18X9,BLACK | |
REF # | 92066B |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
