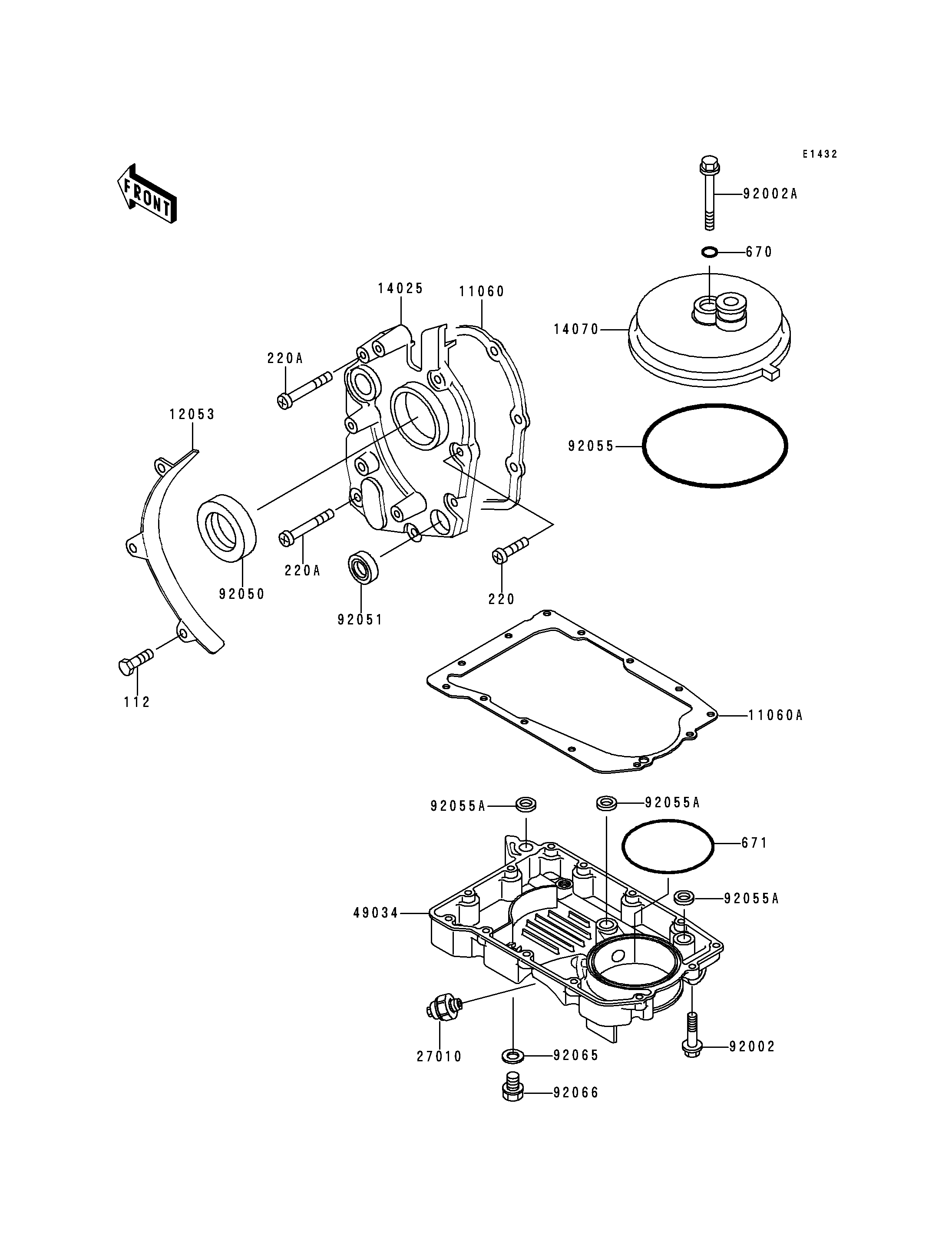

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-UPSET | 112 | 112B0614 | 3 | ||
SCREW-PAN-CROS,6X20,WHITE | 220 | 220B0620 | 5 | ||
SCREW-PAN-CROS,6X40 | 220A | 220B0640 | 2 | ||
O RING,8MM | 670 | 670B1508 | 1 | ||
O RING,90MM | 671 | 671B2590 | 1 | ||
GASKET,TRANSMISSION COVER | 11060 | 11060-1056 | 1 | ||
GASKET,OIL PAN | 11060A | 11060-1057 | 1 | ||
GUIDE-CHAIN | 12053 | 12053-1006 | 1 | ||
COVER,TRANSMISSION | 14025 | 14025-1700 | 1 | ||
BODY-BREATHER,BLACK | 14070 | 14070-1010 | 1 | ||
SWITCH,OIL PRESSURE | 27010 | 27010-1155 | 1 | ||
PAN-OIL | 49034 | 49034-1084 | 1 | ||
BOLT,6X25 | 92002 | 92002-1089 | 13 | ||
BOLT,8X72 | 92002A | 92002-1329 | 1 | ||
SEAL-OIL,SC325210 | 92050 | 92050-024 | 1 | ||
SEAL-OIL,TB13225.5 | 92051 | 92051-005 | 1 | ||
RING-O,91.6X3.4 | 92055 | 92055-052 | 1 | ||
RING-O,19.5MM | 92055A | 92055-077 | 3 | ||
GASKET,12X22X2,DRAIN PLUG | 92065 | 92065-097 | 1 | ||
PLUG,OIL DRAIN,12X15 | 92066 | 92066-1174 | 1 |
BOLT-UPSET | |
REF # | 112 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
SCREW-PAN-CROS,6X20,WHITE | |
REF # | 220 |
---|---|
PART NUMBER | |
QUANTITY | 5 |
DESTINATION | |
REMARKS |
SCREW-PAN-CROS,6X40 | |
REF # | 220A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
O RING,8MM | |
REF # | 670 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
O RING,90MM | |
REF # | 671 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GASKET,TRANSMISSION COVER | |
REF # | 11060 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GASKET,OIL PAN | |
REF # | 11060A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GUIDE-CHAIN | |
REF # | 12053 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER,TRANSMISSION | |
REF # | 14025 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BODY-BREATHER,BLACK | |
REF # | 14070 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SWITCH,OIL PRESSURE | |
REF # | 27010 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PAN-OIL | |
REF # | 49034 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,6X25 | |
REF # | 92002 |
---|---|
PART NUMBER | |
QUANTITY | 13 |
DESTINATION | |
REMARKS |
BOLT,8X72 | |
REF # | 92002A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SEAL-OIL,SC325210 | |
REF # | 92050 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SEAL-OIL,TB13225.5 | |
REF # | 92051 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-O,91.6X3.4 | |
REF # | 92055 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-O,19.5MM | |
REF # | 92055A |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
GASKET,12X22X2,DRAIN PLUG | |
REF # | 92065 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLUG,OIL DRAIN,12X15 | |
REF # | 92066 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
