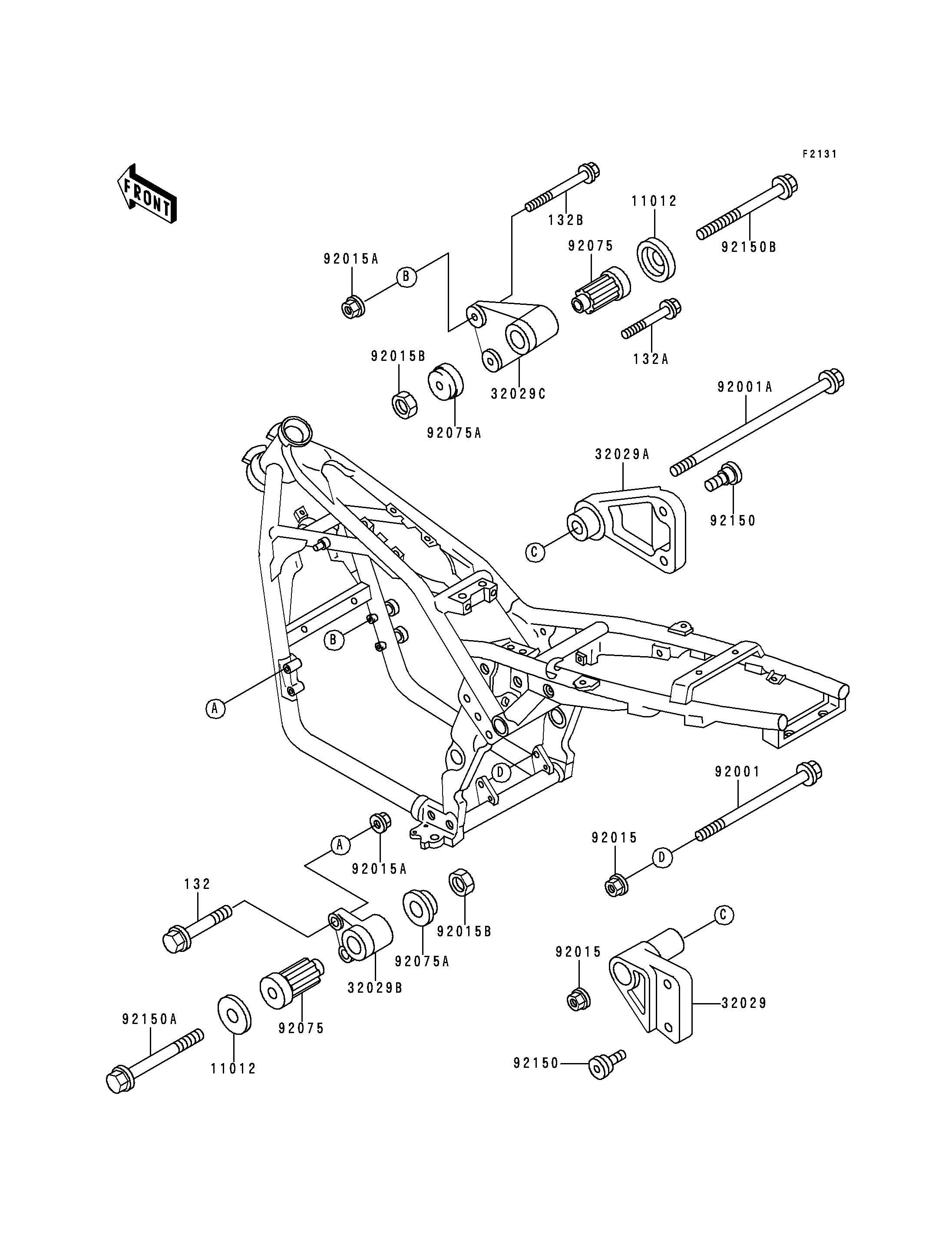

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED-SMALL,8X60 | 132 | 132J0860 | 2 | ||
BOLT-FLANGED-SMALL | 132A | 132J0875 | 1 | ||
BOLT-FLANGED-SMALL | 132B | 132J0890 | 1 | ||
CAP,ENGINE BRACKET | 11012 | 11012-1228 | 2 | ||
BRACKET-ENGINE,RR,LH,C.GRAY | 32029 | 32029-1676-EZ | 1 | ||
BRACKET-ENGINE,RR,RH,C.GRAY | 32029A | 32029-1677-EZ | 1 | ||
BRACKET-ENGINE,FR,LH,C.GRAY | 32029B | 32029-1679-EZ | 1 | ||
BRACKET-ENGINE,FR,RH,C.GRAY | 32029C | 32029-1680-EZ | 1 | ||
BOLT,FLANGED,10X180 | 92001 | 92001-1621 | 1 | ||
BOLT,FLANGED,10X240 | 92001A | 92001-1812 | 1 | ||
NUT,FLANGED,10MM | 92015 | 92015-1180 | 2 | ||
NUT,FLANGED,8MM,BLACK | 92015A | 92015-1183 | 4 | ||
NUT,LOCK,10MM,BLACK | 92015B | 92015-1188 | 2 | ||
DAMPER,ENGINE MOUNT,MAIN | 92075 | 92075-1377 | 2 | ||
DAMPER,ENGINE BRACKET | 92075A | 92075-1462 | 2 | ||
BOLT,SOCKET,8X20 | 92150 | 92150-1148 | 4 | ||
BOLT,FLANGED,10X110 | 92150A | 92150-1317 | 1 | ||
BOLT,FLANGED,10X125 | 92150B | 92150-1318 | 1 |
