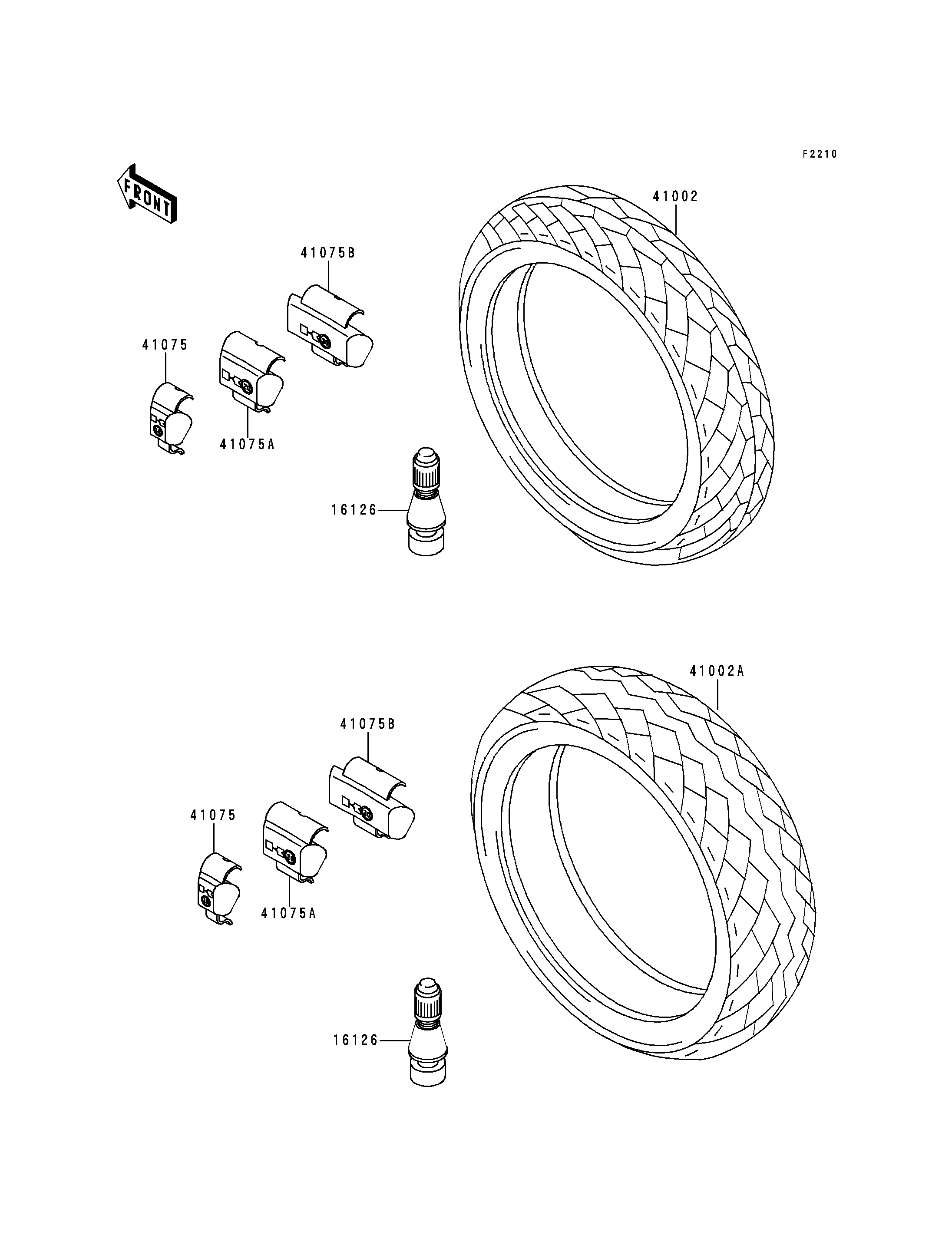

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
VALVE,TIRE 16126 16126-1140 2
TIRE,FR,110/80-17 57H,G547E(BS 41002 41002-1834 1
TIRE,RR,140/70-18 67H,G548F(BS 41002A 41002-1835 1
BALANCER-WHEEL,10G,SILVER 41075 41075-1014 AR
BALANCER-WHEEL,20G,SILVER 41075A 41075-1015 AR
BALANCER-WHEEL,30G,SILVER 41075B 41075-1016 AR
