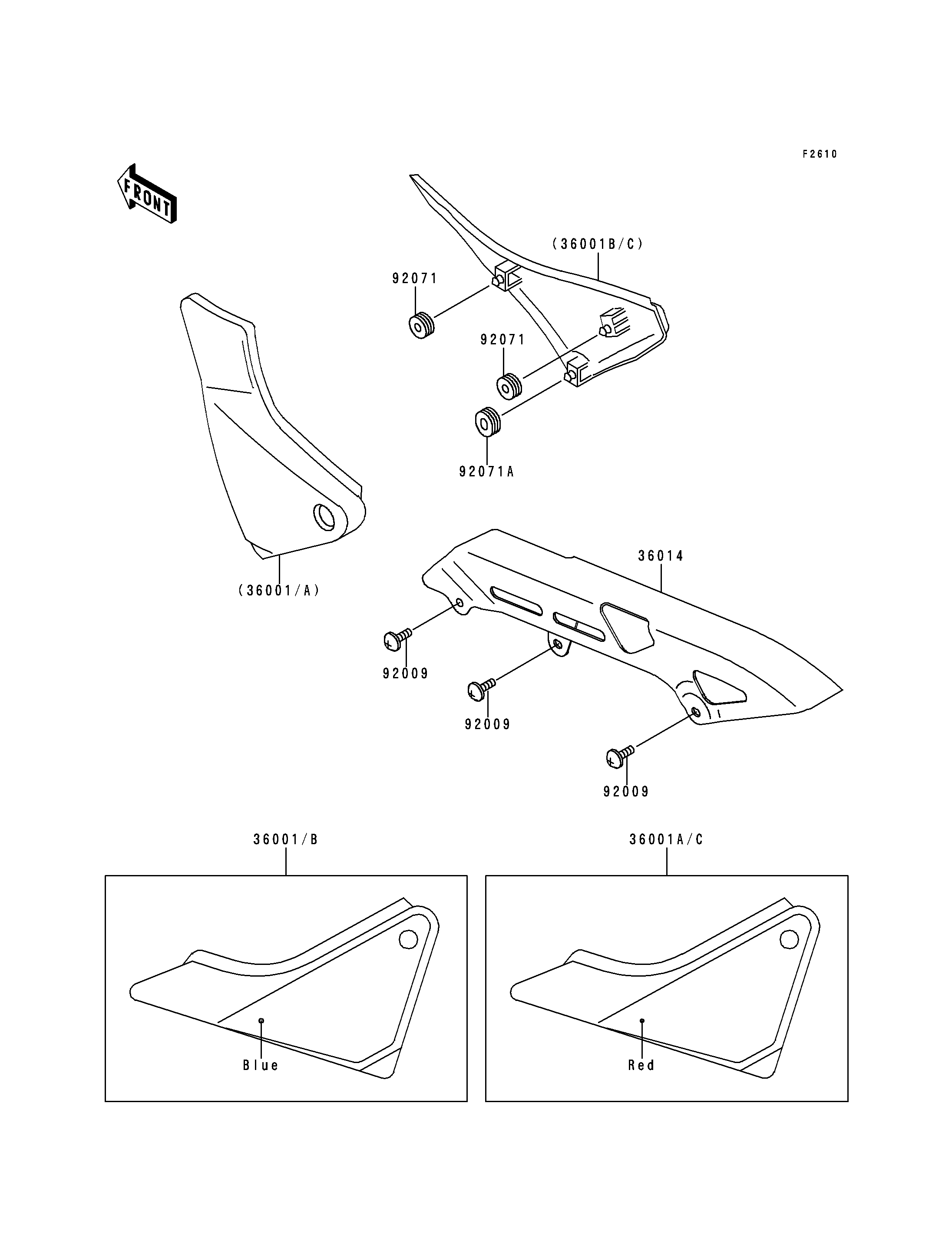

1990 Zephyr - Side Cover/Chain Case(ZR550-B1/B2)

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER-SIDE,LH,C.A.BLUE 36001 36001-1422-FC 1
COVER-SIDE,LH,C.C.RED 36001A 36001-1422-L1 1
COVER-SIDE,RH,C.A.BLUE 36001B 36001-1423-FC 1
COVER-SIDE,RH,C.C.RED 36001C 36001-1423-L1 1
CASE-CHAIN 36014 36014-1161 1
SCREW,6X10,WHITE 92009 92009-1286 3
GROMMET 92071 92071-056 4
GROMMET 92071A 92071-1043 2
