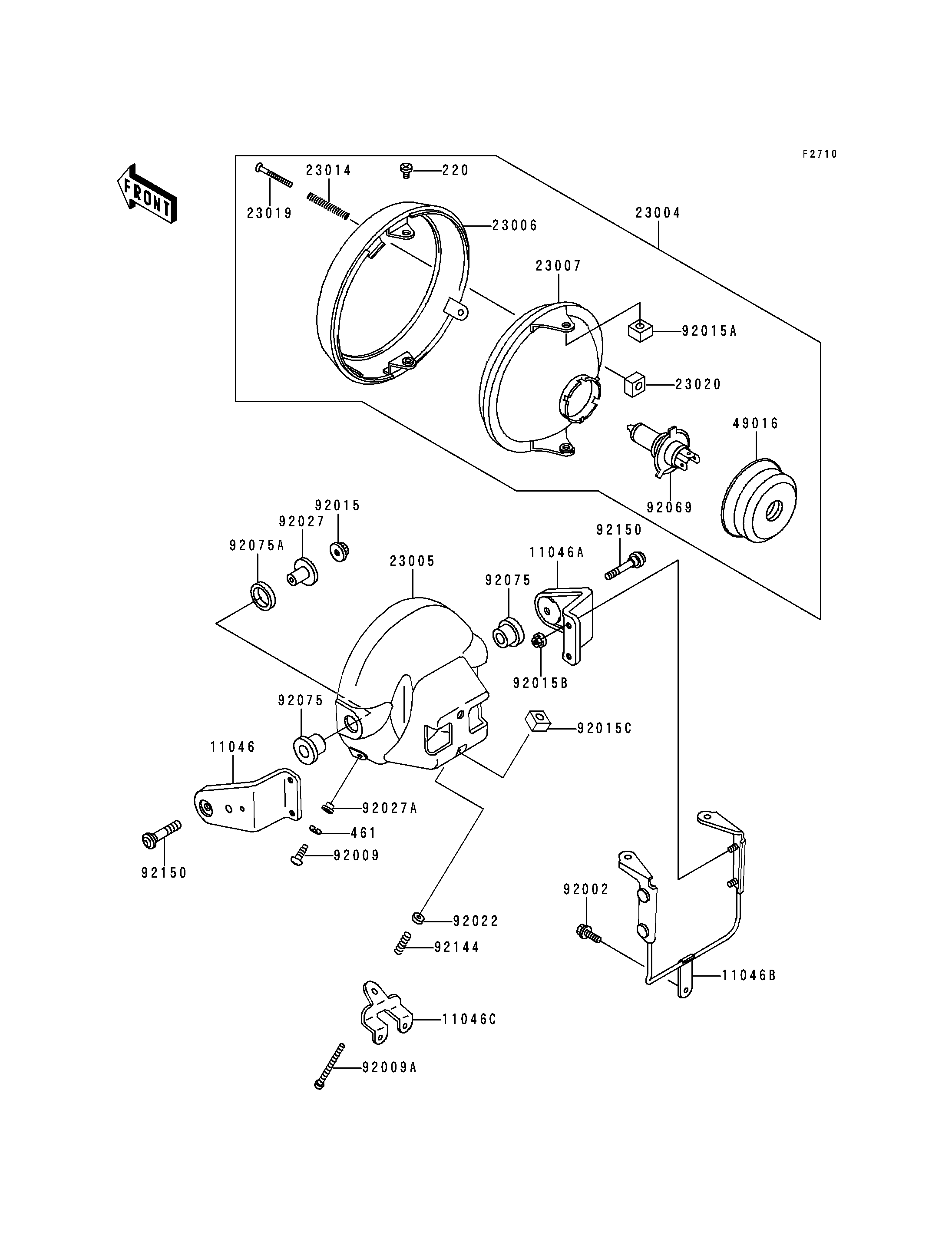

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SCREW-PAN-CROS | 220 | 220D0510 | 2 | ||
| WASHER-SPRING,5MM,BLACK | 461 | 461K0500 | 2 | ||
| BRACKET,HEAD LAMP,LH | 11046 | 11046-1747 | 1 | ||
| BRACKET,HEAD LAMP,RH | 11046A | 11046-1748 | 1 | ||
| BRACKET,HEAD LAMP | 11046B | 11046-1779 | 1 | ||
| BRACKET,HEAD LAMP BODY | 11046C | 11046-1796 | 1 | ||
| LAMP-HEAD | 23004 | 23004-1275 | 1 | ||
| BODY-COMP-HEAD LAMP,F.BLACK | 23005 | 23005-1102-21 | 1 | ||
| RIM-LAMP,CR PLATED | 23006 | 23006-1020 | 1 | ||
| LENS-COMP,HEAD LAMP | 23007 | 23007-1224 | 1 | ||
| SPRING,FOCUS ADJUSTING | 23014 | 23014-005 | 1 | ||
| SCREW,FOCUS ADJUSTING | 23019 | 23019-021 | 1 | ||
| NUT,4MM,FOCUS ADJUST | 23020 | 23020-018 | 1 | ||
| COVER-SEAL,HEAD LAMP | 49016 | 49016-1046 | 1 | ||
| BOLT | 92002 | 92002-1626 | 1 | ||
| SCREW,5X16 | 92009 | 92009-1157 | 2 | ||
| SCREW,ADJUST | 92009A | 92009-1580 | 1 | ||
| NUT,FLANGED,8MM | 92015 | 92015-1014 | 2 | ||
| NUT,5MM | 92015A | 92015-1157 | 2 | ||
| NUT,CAP,6MM,BLACK | 92015B | 92015-1170 | 4 | ||
| NUT,5MM,FOCUS ADJUST | 92015C | 92015-1799 | 1 | ||
| WASHER,5.2X13X1 | 92022 | 92022-1380 | 1 | ||
| COLLAR,L=20 | 92027 | 92027-1131 | 2 | ||
| COLLAR,HEAD LAMP,BLACK | 92027A | 92027-1503 | 2 | ||
| BULB,12V 60/55W,H4 | 92069 | 92069-1002 | 1 | ||
| DAMPER,HEAD LAMP FITTING | 92075 | 92075-1109 | 2 | ||
| DAMPER,HEAD LAMP FITTING | 92075A | 92075-1110 | 2 | ||
| SPRING | 92144 | 92144-1417 | 1 | ||
| BOLT,8X40 | 92150 | 92150-1403 | 2 |
