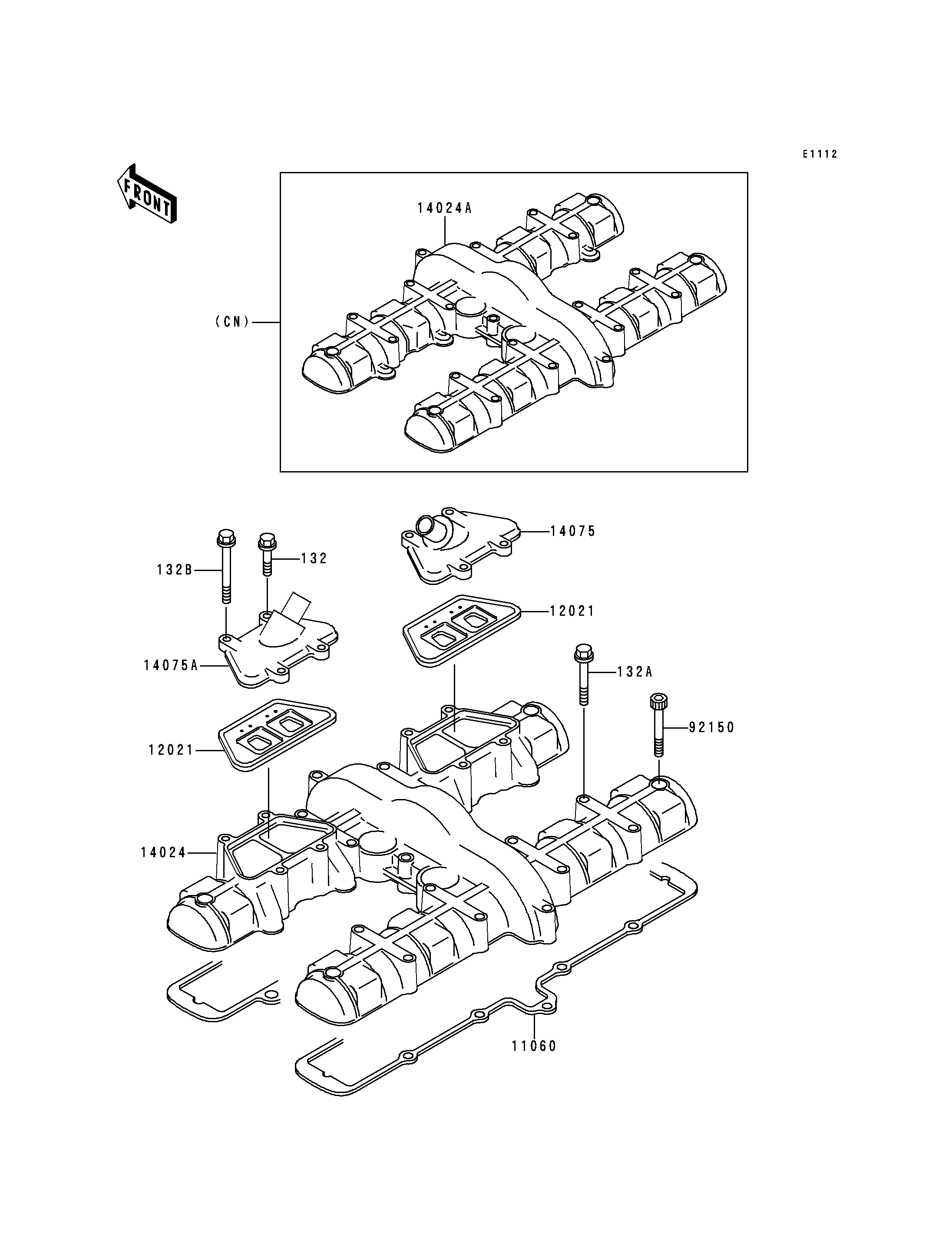

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL 132 132E0620 4
BOLT-FLANGED-SMALL 132A 132E0645 16
BOLT-FLANGED-SMALL 132A 132E0645 20
BOLT-FLANGED-SMALL 132B 132E0665 4
GASKET,HEAD COVER 11060 11060-1306 1
VALVE-ASSY-REED 12021 12021-1003 2
COVER,HEAD 14024 14024-1963 1
COVER,HEAD 14024A 14024-1964 1
CAP-ASSY,REED VALVE,RH 14075 14075-5016 1
CAP-ASSY,REED VALVE,LH 14075A 14075-5017 1
BOLT,SOCKET,6X50 92150 92150-1436 4
