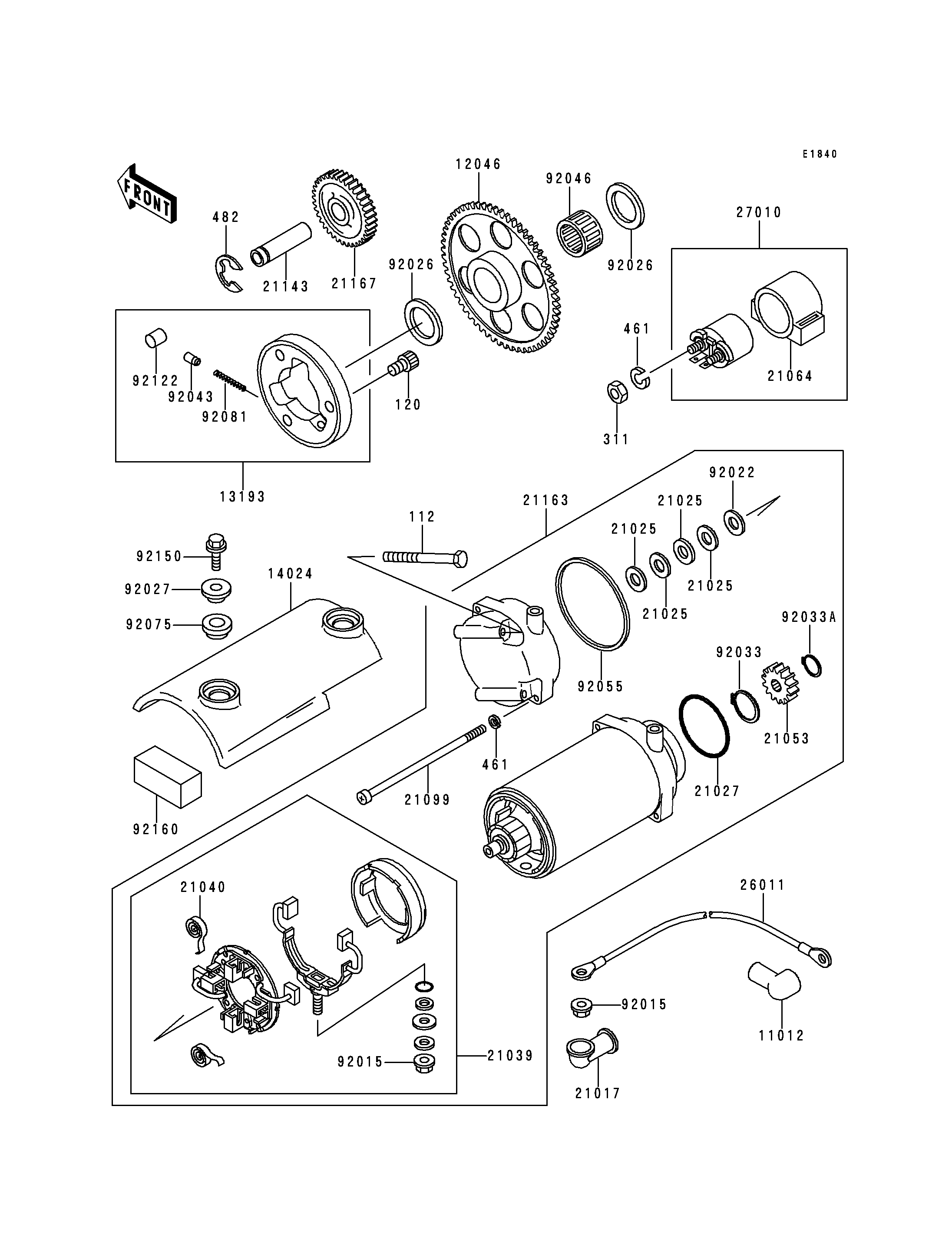

1992 Zephyr 750 - Starter Motor

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-UPSET 112 112G0660 2
BOLT-SOCKET,8X12 120 120P0812 3
NUT-HEX,6MM 311 311B0600 2
WASHER-SPRING,6MM 461 461F0600 4
CIRCLIP-TYPE-E,12MM 482 482J0200 1
CAP,TERMINAL 11012 11012-1354 1
SPROCKET,STARTER,58T 12046 12046-1032 1
CLUTCH-ASSY-ONEWAY 13193 13193-1012 1
COVER,STARTER MOTOR 14024 14024-1972 1
GROMMET,STARTER TERMINAL 21017 21017-017 1
WASHER,9.1X18X0.2 21025 21025-011 4
RING-O,40MM 21027 21027-008 1
BRUSH,CARBON 21039 21039-1053 1
SPRING-BRUSH 21040 21040-1003 4
SPROCKET-ASSY,STARTER 21053 21053-004 1
DAMPER,MAGNETIC SWITCH 21064 21064-002 1
SCREW,PAN HEAD,6X130 21099 21099-006 2
SHAFT,IDLE GEAR 21143 21143-003 1
STARTER-ELECTRIC 21163 21163-1053 1
GEAR-SPUR,IDLE,29T 21167 21167-004 1
WIRE-LEAD,STARTER MOTOR 26011 26011-1135 1
SWITCH,MAGNETIC 27010 27010-1209 1
NUT,STARTER MOTOR 92015 92015-1476 2
WASHER,9.1X18X0.8 92022 92022-1132 1
SPACER,25X36X3.2 92026 92026-1025 2
COLLAR,L=7.4 92027 92027-1848 2
RING-SNAP,17MM 92033 92033-034 1
RING-SNAP,13MM 92033A 92033-037 1
PIN 92043 92043-087 3
BEARING-NEEDLE,K253017 92046 92046-056 1
RING-O,64MM 92055 92055-1086 1
DAMPER 92075 92075-1244 2
SPRING 92081 92081-110 3
ROLLER,15X13 92122 92122-004 3
BOLT,FLANGED,6X12 92150 92150-1235 2
DAMPER 92160 92160-1272 2
