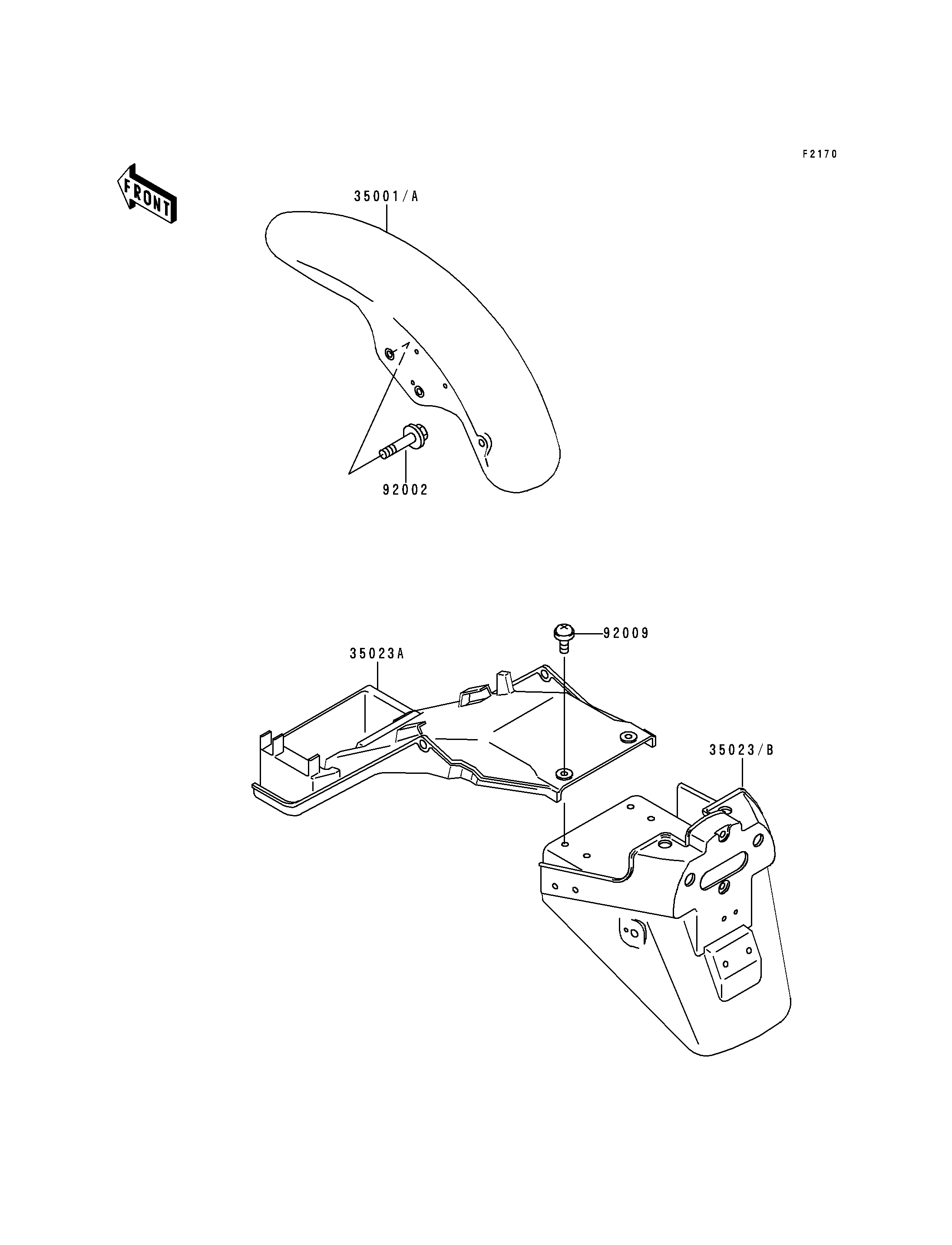

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FENDER-ASSY-FRONT,C.P.RED 35001 35001-1150-A5 1
FENDER-REAR,RR 35023 35023-1295 1
FENDER-REAR,FR 35023A 35023-1297 1
FENDER-REAR,RR 35023B 35023-1308 1
BOLT,FLANGED,8X20 92002 92002-1134 4
SCREW,6X14 92009 92009-1288 6
