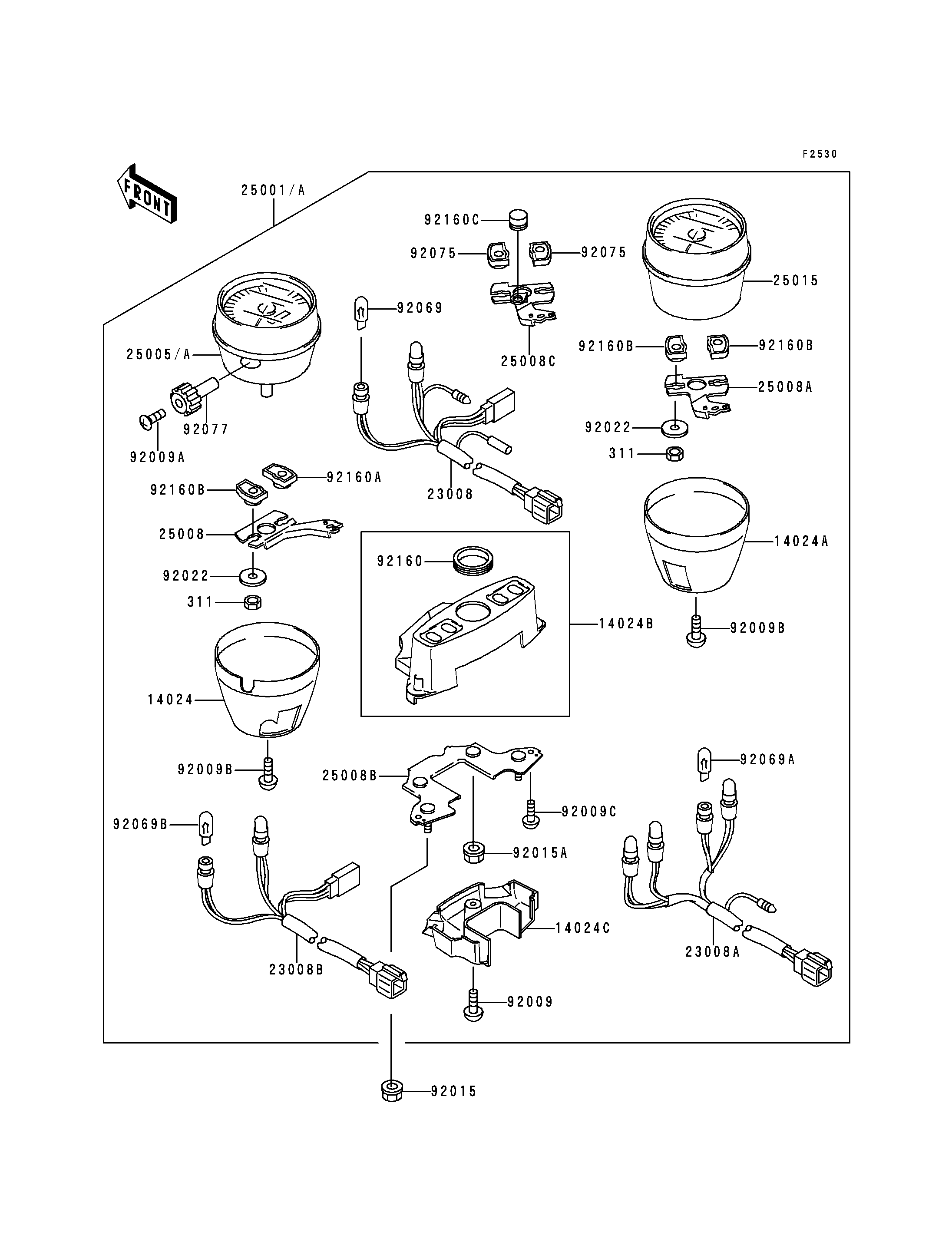

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
NUT-HEX | 311 | 311B0500 | 4 | ||
COVER,SPEEDOMETER | 14024 | 14024-1986 | 1 | ||
COVER,TACHOMETER | 14024A | 14024-1987 | 1 | ||
COVER,PILOT BOX,UPP | 14024B | 14024-1988 | 1 | ||
COVER,PILOT BOX,LWR | 14024C | 14024-1989 | 1 | ||
SOCKET-ASSY,TACHOMETER | 23008 | 23008-1458 | 1 | ||
SOCKET-ASSY,PILOT BOX | 23008A | 23008-1459 | 1 | ||
SOCKET-ASSY,SPEEDOMETER | 23008B | 23008-1460 | 1 | ||
METER-ASSY,KPH | 25001 | 25001-1828 | 1 | ||
METER-ASSY,MPH | 25001A | 25001-1832 | 1 | ||
SPEEDOMETER,KPH | 25005 | 25005-1466 | 1 | ||
SPEEDOMETER,MPH | 25005A | 25005-1468 | 1 | ||
BRACKET-METER,SPEED | 25008 | 25008-1171 | 1 | ||
BRACKET-METER,TACHO | 25008A | 25008-1172 | 1 | ||
BRACKET-METER,PILOT BOX | 25008B | 25008-1173 | 1 | ||
BRACKET-METER,TACHO | 25008C | 25008-1185 | 1 | ||
TACHOMETER,X1000R/MIN | 25015 | 25015-1298 | 1 | ||
SCREW,4X16,BLACK | 92009 | 92009-1158 | 1 | ||
SCREW,2X6,BLACK | 92009A | 92009-1172 | 1 | ||
SCREW,TAPPING,4X16 | 92009B | 92009-1601 | 2 | ||
SCREW,4X16 | 92009C | 92009-1605 | 2 | ||
NUT,FLANGED,6MM,BLACK | 92015 | 92015-1237 | 2 | ||
NUT,FLANGED,6MM | 92015A | 92015-1367 | 2 | ||
WASHER,5.2X16X1.2 | 92022 | 92022-263 | 4 | ||
BULB,12V3W T-7 | 92069 | 92069-1020 | 2 | ||
BULB,14V 3W | 92069A | 92069-1068 | 4 | ||
BULB,12V 1.7W T-7 | 92069B | 92069-1085 | 2 | ||
DAMPER,METER | 92075 | 92075-1714 | 2 | ||
KNOB,RESET TRIP | 92077 | 92077-1096 | 1 | ||
DAMPER,IGNITION SWITCH | 92160 | 92160-1179 | 1 | ||
DAMPER,METER | 92160A | 92160-1280 | 1 | ||
DAMPER,METER | 92160B | 92160-1281 | 3 | ||
DAMPER,METER | 92160C | 92160-1309 | 1 |
