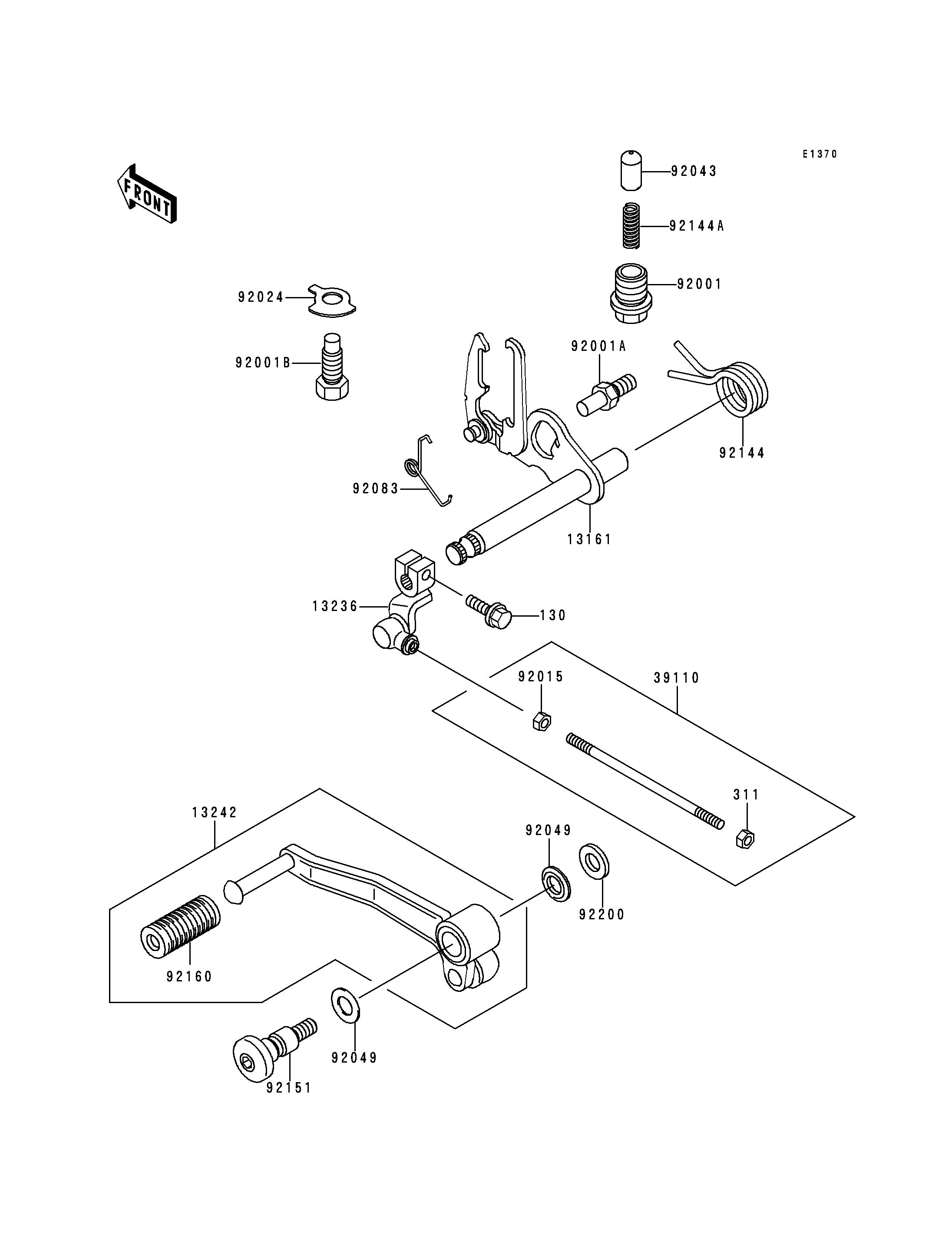

2000 ZR-7 - Gear Change Mechanism

DOWNLOAD PDF
SELECT A NEW PART
130
311
13161
13236
13242
39110
92001
92001A
92001B
92015
92024
92043
92049
92049
92083
92144
92144A
92151
92160
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X20,BLACK 130 130S0620 1
NUT-HEX 311 311J0600 1
LEVER-COMP-CHANGE SHAFT 13161 13161-042 1
LEVER-COMP,CHANGE 13236 13236-1332 1
LEVER-ASSY-CHANGE,PEDAL 13242 13242-1359 1
ROD-ASSY-TIE 39110 39110-1106 1
BOLT,NEUTRAL POSITION 92001 92001-1037 1
BOLT,RETURN SPRING 92001A 92001-1455 1
BOLT,10X26 92001B 92001-174 1
NUT 92015 92015-1178 1
WASHER,LOCK,10MM 92024 92024-074 1
PIN 92043 92043-076 1
SEAL-OIL,VB13193 92049 92049-1398 2
SPRING 92083 92083-018 1
SPRING,CHANGE PEDAL RETURN 92144 92144-1074 1
SPRING,NEUTRAL POSITION 92144A 92144-1580 1
BOLT,CHANGE PEDAL 92151 92151-1481 1
DAMPER,CHANGE PEDAL 92160 92160-1036 1
WASHER,8.5X25X1.5 92200 92200-3717 1
