670
670
670A
670A
39067
51044
51044A
92002
92002
92015
92075
92075
92143
92143
92150
92150A

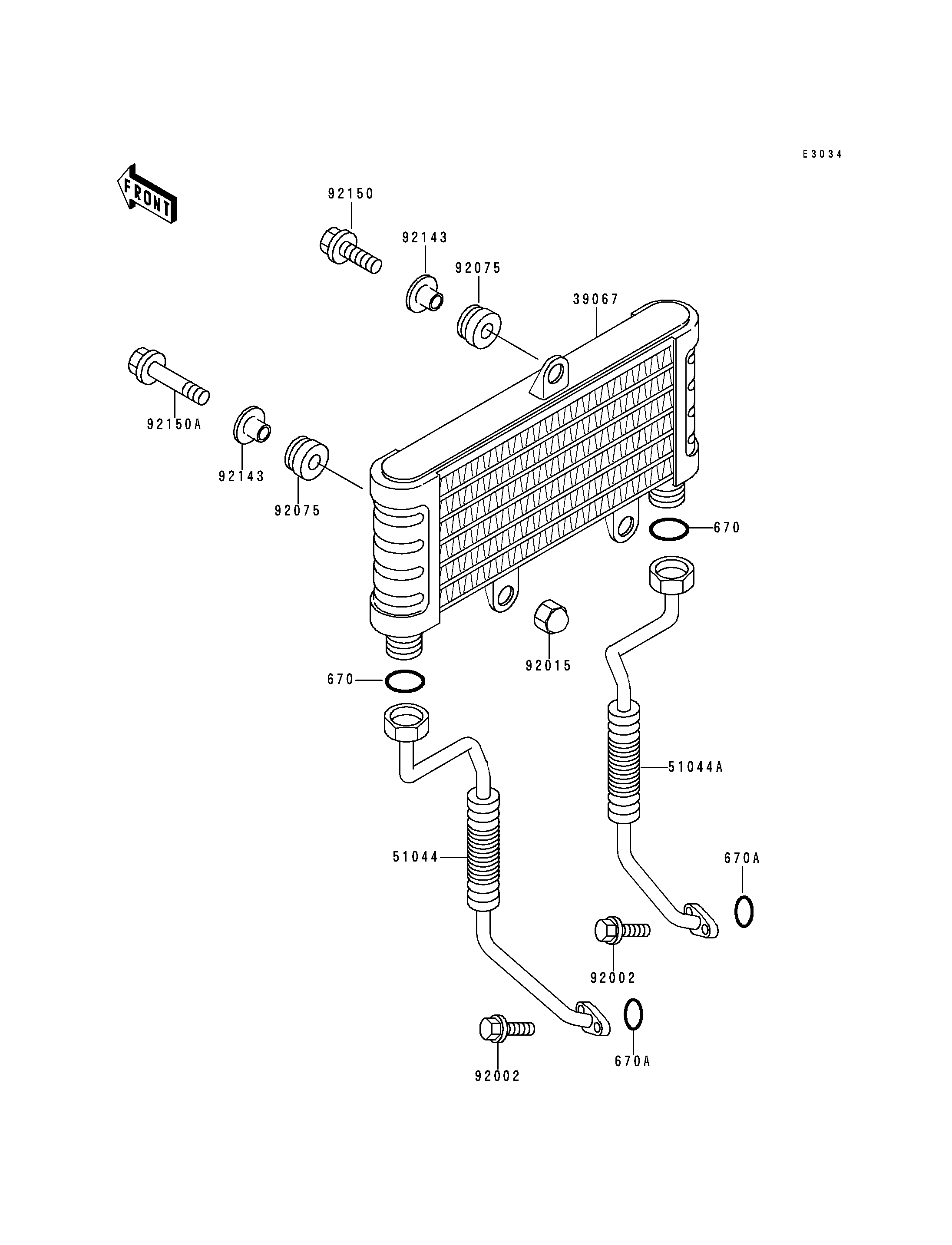

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
O RING,8MM 670 670B1508 2
O RING,10MM 670A 670B2010 2
COOLER-OIL 39067 39067-1055 1
TUBE-ASSY,LH 51044 51044-1204 1
TUBE-ASSY,RH 51044A 51044-1205 1
BOLT,6X16 92002 92002-1100 4
NUT,CAP,6MM,BLACK 92015 92015-1170 2
DAMPER 92075 92075-277 3
COLLAR,L=12.5 92143 92143-1677 3
BOLT,6X25 92150 92150-1733 1
BOLT,6X40 92150A 92150-1734 2
