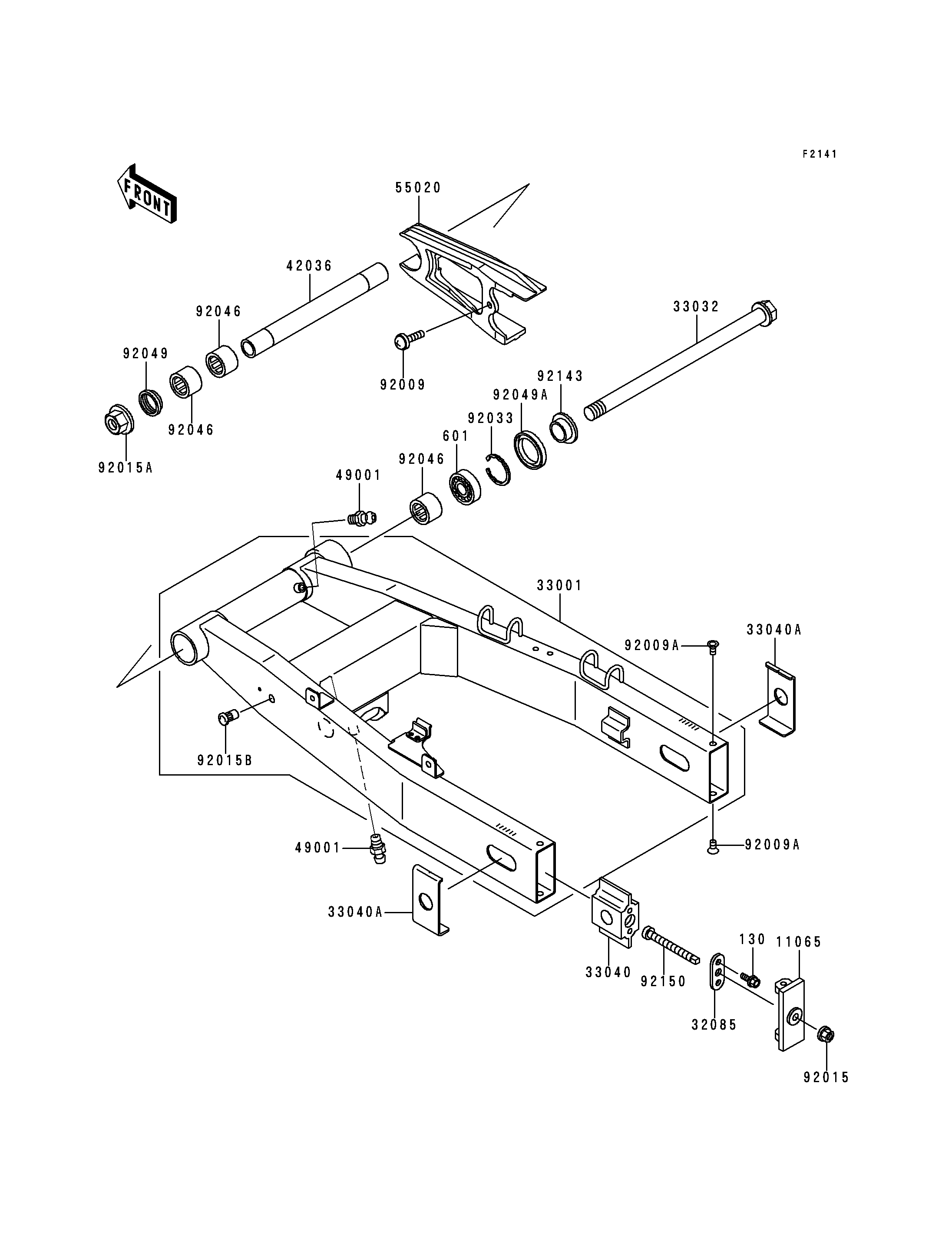

2000 ZR-7 - Swingarm

DOWNLOAD PDF
SELECT A NEW PART
130
601
11065
32085
33001
33032
33040
33040A
33040A
42036
49001
49001
55020
92009
92009A
92009A
92015
92015A
92015B
92033
92046
92046
92046
92049
92049A
92143
92150
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED 130 130P0616 4
BEARING-BALL,#6004 601 601A6004 1
CAP,CHAIN ADJUSTER,SILVER 11065 11065-1132-CE 2
STOPPER,CHAIN ADJUSTER 32085 32085-1408 2
ARM-COMP-SWING,SILVER 33001 33001-1569-CE 1
SHAFT-SWING ARM 33032 33032-1142 1
ADJUSTER-CHAIN,INNER 33040 33040-1142 2
ADJUSTER-CHAIN,OUTER 33040A 33040-1143 2
SLEEVE,SWING ARM,L=219.5 42036 42036-1358 1
NIPPLE-GREASE 49001 49001-1051 2
GUARD,CHAIN 55020 55020-1690 1
SCREW,6X22 92009 92009-1664 1
SCREW,6X12 92009A 92009-1894 4
NUT,FLANGED,8MM 92015 92015-1406 2
NUT,FLANGED,20MM 92015A 92015-1724 1
NUT,POP,6MM,L=15 92015B 92015-1791 1
RING-SNAP,42MM 92033 92033-1041 1
BEARING-NEEDLE,BM2817 92046 92046-1111 3
SEAL-OIL 92049 92049-1181 1
SEAL-OIL,TC28426.5 92049A 92049-1185 1
COLLAR,SWING ARM,RH,L=12.5 92143 92143-1727 1
BOLT,CHAIN ADJUSTER 92150 92150-1285 2
