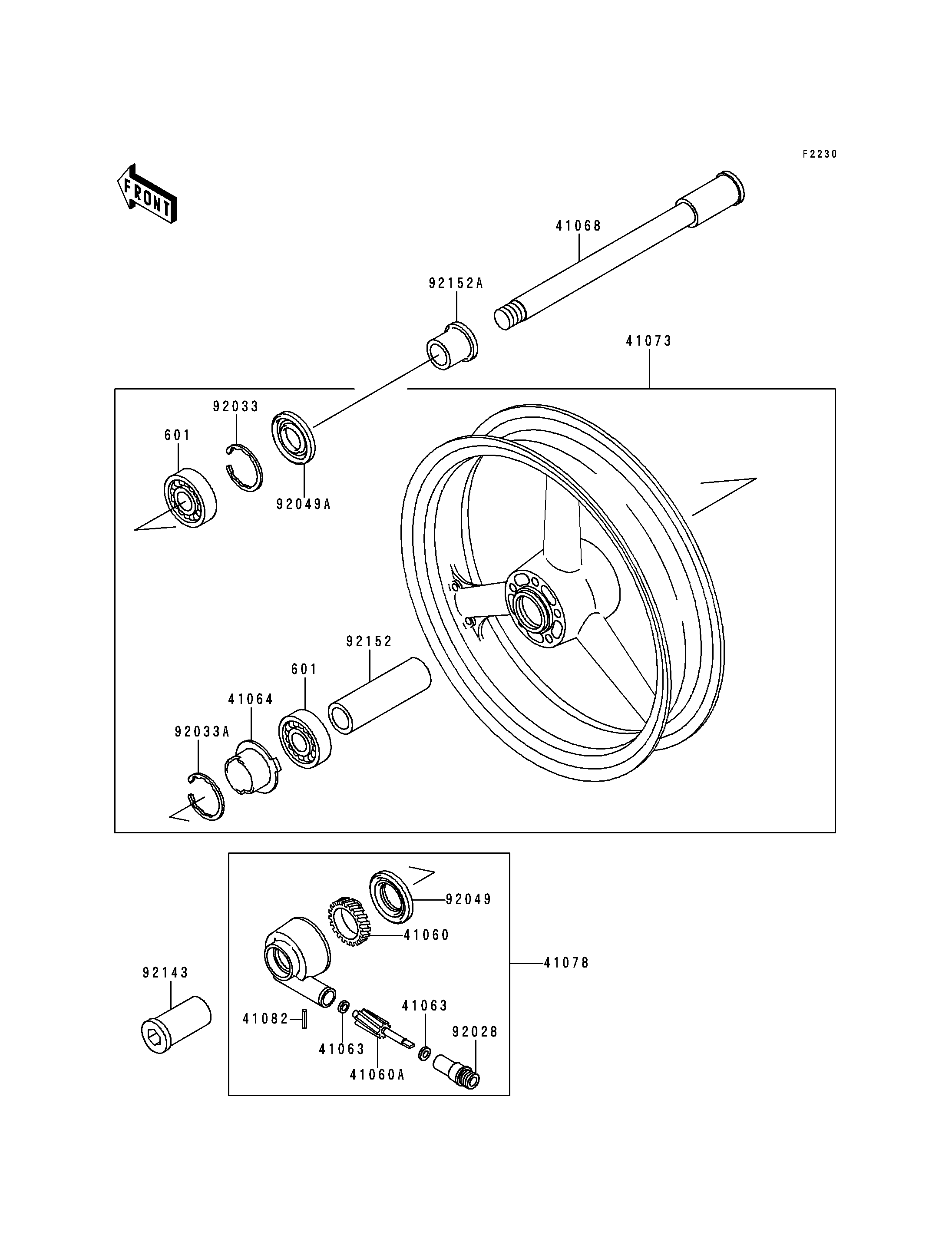

2000 ZR-7 - Front Wheel

DOWNLOAD PDF
SELECT A NEW PART
601
601
41060
41060A
41063
41063
41064
41068
41073
41078
41082
92028
92033
92033A
92049
92049A
92143
92152
92152A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BEARING-BALL,#6203UUC3 601 601B6203UU 2
GEAR-METER SCREW,24T 41060 41060-1025 1
GEAR-METER SCREW,9T 41060A 41060-1123 1
WASHER,5.1X9X0.4 41063 41063-001 2
RECEIVER-SPEEDOMETER 41064 41064-1006 1
AXLE,FR 41068 41068-1255 1
WHEEL-ASSY,FR,C.GRAY 41073 41073-1644-DH 1
CASE-ASSY-METER GEAR 41078 41078-1069 1
PIN,SPRING 41082 41082-001 1
BUSHING,SPEEDOMETER 92028 92028-1066 1
RING-SNAP,40MM 92033 92033-1040 1
RING-SNAP,42MM 92033A 92033-1041 1
SEAL-OIL,BJN30427-C3 92049 92049-1057 1
SEAL-OIL,AG1258AO 92049A 92049-1110 1
COLLAR,FR AXLE,NUT,L=42.5 92143 92143-1206 1
COLLAR,FR HUB,L=81.5 92152 92152-1159 1
COLLAR,FR AXLE,RH,L=25.5 92152A 92152-1160 1
