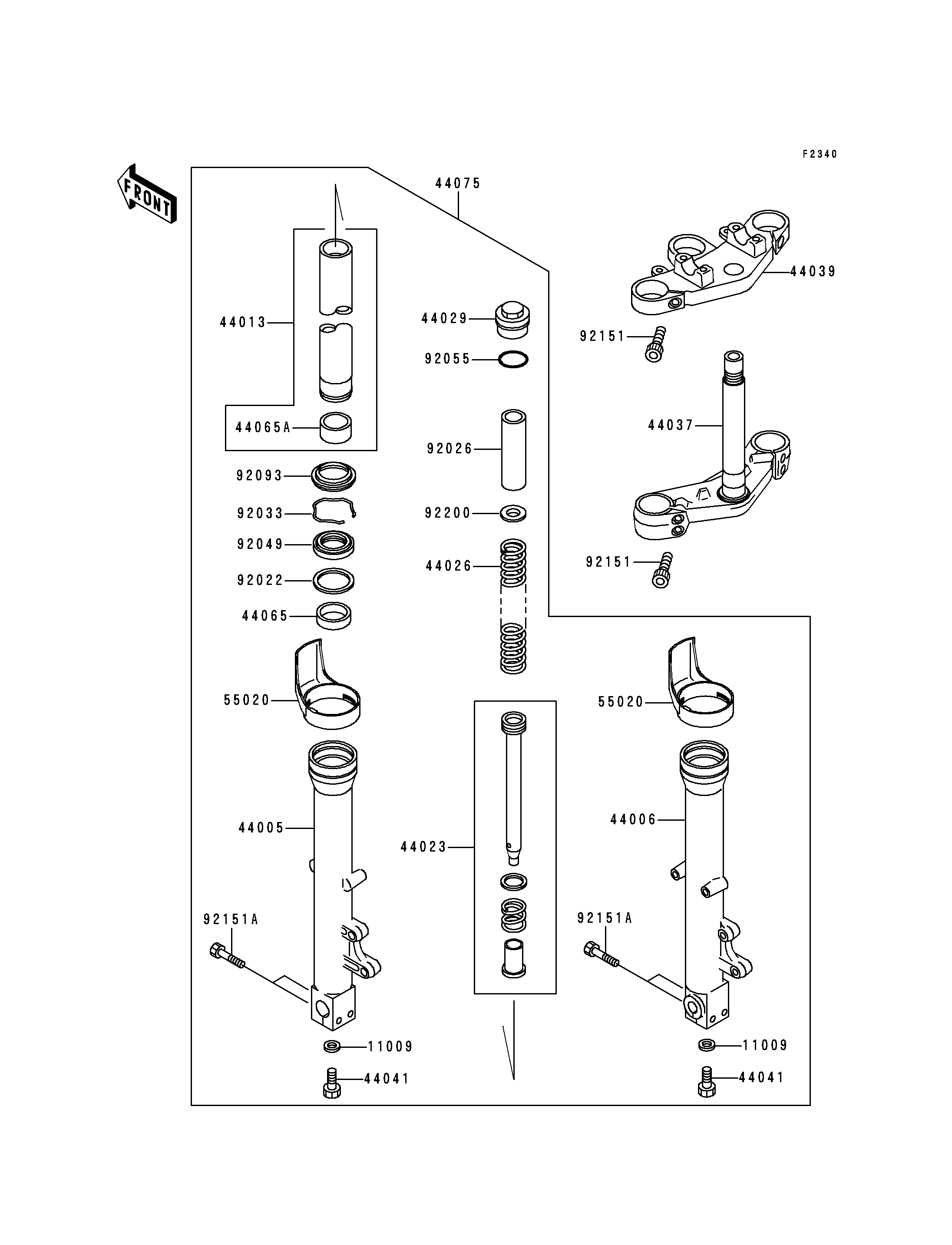

2000 ZR-7 - Front Fork

DOWNLOAD PDF
SELECT A NEW PART
11009
11009
44005
44006
44013
44023
44026
44029
44037
44039
44041
44041
44065
44065A
44075
55020
55020
92022
92026
92033
92049
92055
92093
92151
92151
92151A
92151A
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,PIPE-COMP-SUSP 11009 11009-1325 2
PIPE-LEFT FORK OUTER 44005 44005-1399 1
PIPE-RIGHT FORK OUTER 44006 44006-1397 1
PIPE-FORK INNER 44013 44013-1464 2
CYLINDER-SET-FORK 44023 44023-1135 2
SPRING-FRONT FORK 44026 44026-1695 2
SEAT-FORK SPRING 44029 44029-1147 2
HOLDER-FORK UNDER 44037 44037-1392 1
HOLDER-FORK UPPER 44039 44039-1296 1
BOLT,SOCKET,FORK CYLINDER 44041 44041-040 2
BUSHING-FRONT FORK,OUTER TUBE 44065 44065-1115 2
BUSHING-FRONT FORK,INNER PIPE 44065A 44065-1128 2
DAMPER-SET-FORK 44075 44075-1096 1
GUARD,FORK 55020 55020-1691 2
WASHER,FORK OUTER TUBE 92022 92022-1298 2
SPACER 92026 92026-1404 2
RING-SNAP 92033 92033-1036 2
SEAL-OIL,FORK OUTER TUBE 92049 92049-1494 2
RING-O 92055 92055-1321 2
SEAL,FORK OUTER TUBE 92093 92093-1472 2
BOLT,SOCKET,8X25 92151 92151-1270 6
BOLT,SOCKET,8X40 92151A 92151-1376 4
WASHER 92200 92200-1467 2
