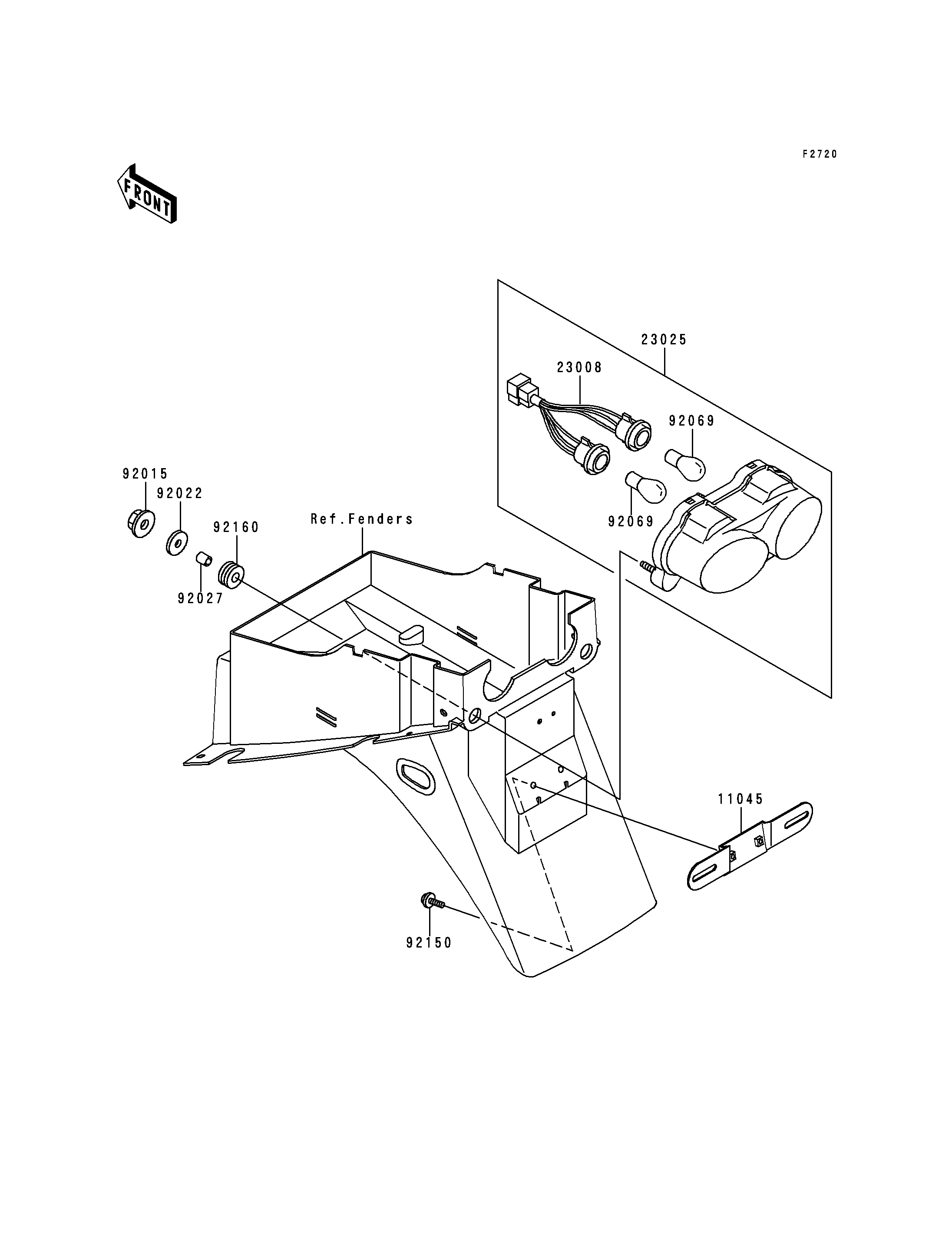

11045
23008
23025
92015
92022
92027
92069
92069
92150
92160
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,LICENSE 11045 11045-1387 1
SOCKET-ASSY,TAIL LAMP 23008 23008-1364 1
LAMP-TAIL 23025 23025-1269 1
NUT,FLANGED,6MM 92015 92015-1367 3
WASHER,6.5X20X1.6 92022 92022-1557 3
COLLAR,6.8X10X12 92027 92027-162 3
BULB,12V 27/8W 92069 92069-059 2
BOLT,6X16 92150 92150-1909 2
DAMPER 92160 92160-1162 3
